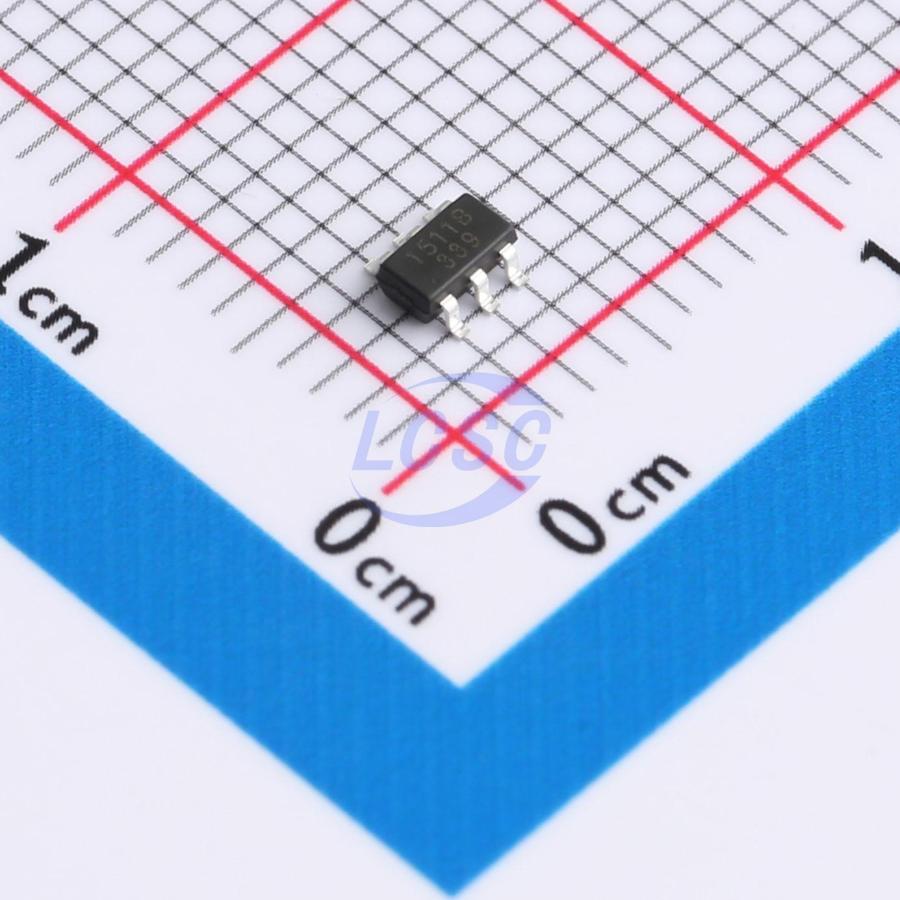

AP1511B
1.5V~5.5V SOT-23-6 Motor Drivers, Controllers
SOT-23-6RoHSActive
AP1511B IR-Cut Removable Driver IC Products
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AP1511B
- Store part #
- C22358680
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,070 in stock
#C22358680
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.30 | ₹86.50 |
| 50+ | ₹13.65 | ₹682.50 |
| 150+ | ₹11.83 | ₹1,774.50 |
| 500+ | ₹10.46 | ₹5,230.00 |
| 3,000+ | ₹9.37 | ₹28,110.00 |
| 6,000+ | ₹8.82 | ₹52,920.00 |
5 × ₹17.30
₹86.50
excl. GST
₹102.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP1511B
₹86.50 for 5 + GST
Specifications
- Voltage - Supply
- 1.5V~5.5V
- Operating Temperature
- -20℃~+85℃
- Input Logic Level - Low
- 0V~500mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
AP1511B is a driver IC specifically designed for IR-Cut Removable (ICR) applications, used to control the opening and closing of the infrared filter in cameras. It features a low saturation voltage bidirectional H-bridge driver circuit with built-in protection diodes that absorb the peak current generated when the ICR coil is switched off, thereby protecting the IC from damage while also providing ESD protection.
Applications
- Dedicated driver IC for IR-Cut Removable (ICR)
Key features
- Low standby current: typical 10μA, VDD = 4.5V
- Input voltage range: 1.5V ~ 5.5V
- Single-input control
- Package: SOT23-6
