DIODESDatasheet (PDF)

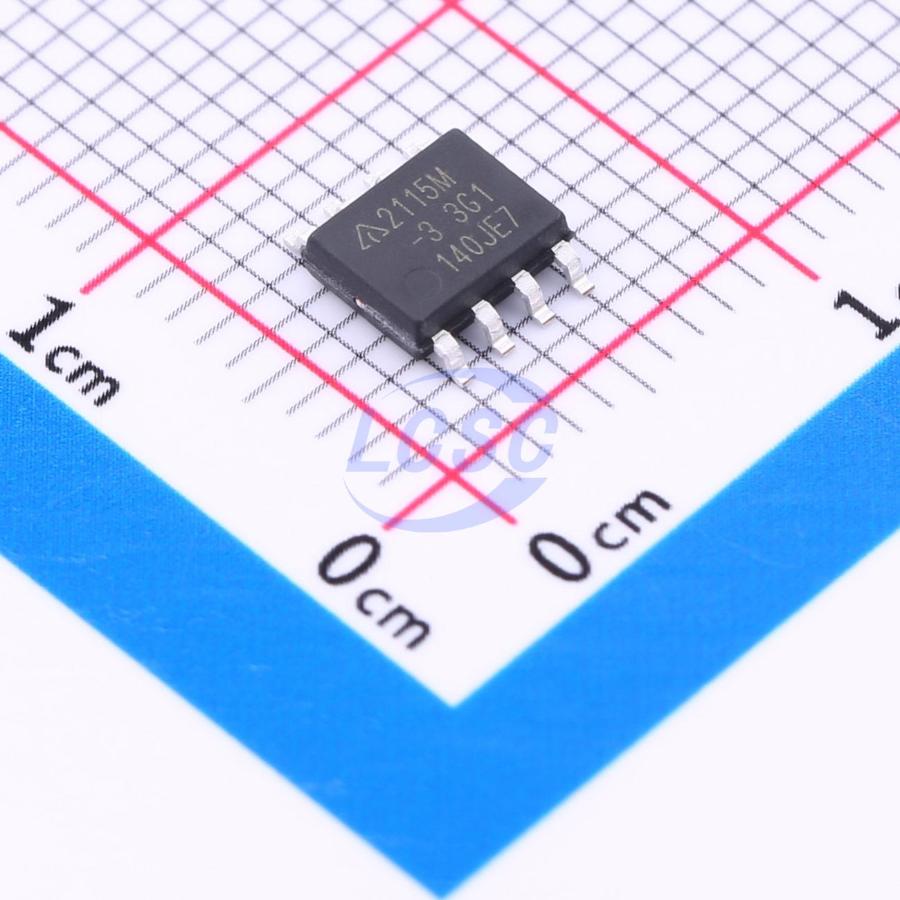

AP2115M-3.3TRG1
3.3V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
1A Low Noise CMOS LDO Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP2115M-3.3TRG1
- Store part #
- C5329420
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C5329420
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.77 | ₹113.85 |
| 50+ | ₹22.28 | ₹1,114.00 |
| 150+ | ₹21.95 | ₹3,292.50 |
| 500+ | ₹20.59 | ₹10,295.00 |
5 × ₹22.77
₹113.85
excl. GST
₹134.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AP2115M-3.3TRG1
₹113.85 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 65uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 1A
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Output discharge;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.51 g
Overview
The AP2115 is CMOS process low dropout linear regulator with enable function, the regulator delivers a guaranteed 1A (min.) continuous load current. The AP2115 features low power consumption. The AP2115 is available in 1.2V, 1.8V, 2.5V and 3.3V regulator output, and available in excellent output accuracy ±1.5%, it is also available in an excellent load regulation and line regulation performance. The AP2115 is available in standard packages of SOIC-8 and SOT-89-5.
Applications
- LCD Monitor
- LCD TV
- STB
Key features
- Output Voltage Accuracy: ±1.5%
- Output Current: 1A (Min.)
- Fold-back Short Current Protection: 50mA
- Low Dropout Voltage (3.3V): 450mV (Typ.) @ IoUT = 1A
- Stable with 4.7μF Flexible Cap: Ceramic, Tantalum and Aluminum Electrolytic
- Excellent Line Regulation: 0.02%/V (Typ.), 0.1%/V (Max.) @ IoUT = 30mA
- Excellent Load Regulation: 0.2%/A (IoUT = 1mA to 1A)
- Low Quiescent Current: 60μA (1.2V/1.8V/2.5V)
- Low Output Noise: 30μVRMS
- PSRR: 68dB @ Freq = 1kHz (1.2V/1.8V)
- OTSD Protection
- Operation Temperature Range: -40°C to 85°C
- ESD: MM 400V, HBM 4000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CM6143-SOPTA#C54451282CIMO · SOP8 | CIMO | SOP8 | 2,995 | ₹448.81 · 2,995 in stock | View |
| MC33269M-3.3/TR#C46614070HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,395 | ₹18.75 · 2,395 in stock | View | |
 | LM1117M-3.3/TR-HG#C498327HGSEMI · SOP-8 | HGSEMI | SOP-8 | 440 | ₹12.86 · 440 in stock | View |
 | GM12041ARDZ-3.3-R7#C19272621GONGMOSEMI · SOIC-8 | GONGMOSEMI | SOIC-8 | 1,000 | ₹433.44 · 1,000 in stock | View |
 | LT1963ES8-3.3#TRPBF#C665751ADI · SO-8 | ADI | SO-8 | 27 | ₹983.23 · 27 in stock | View |
