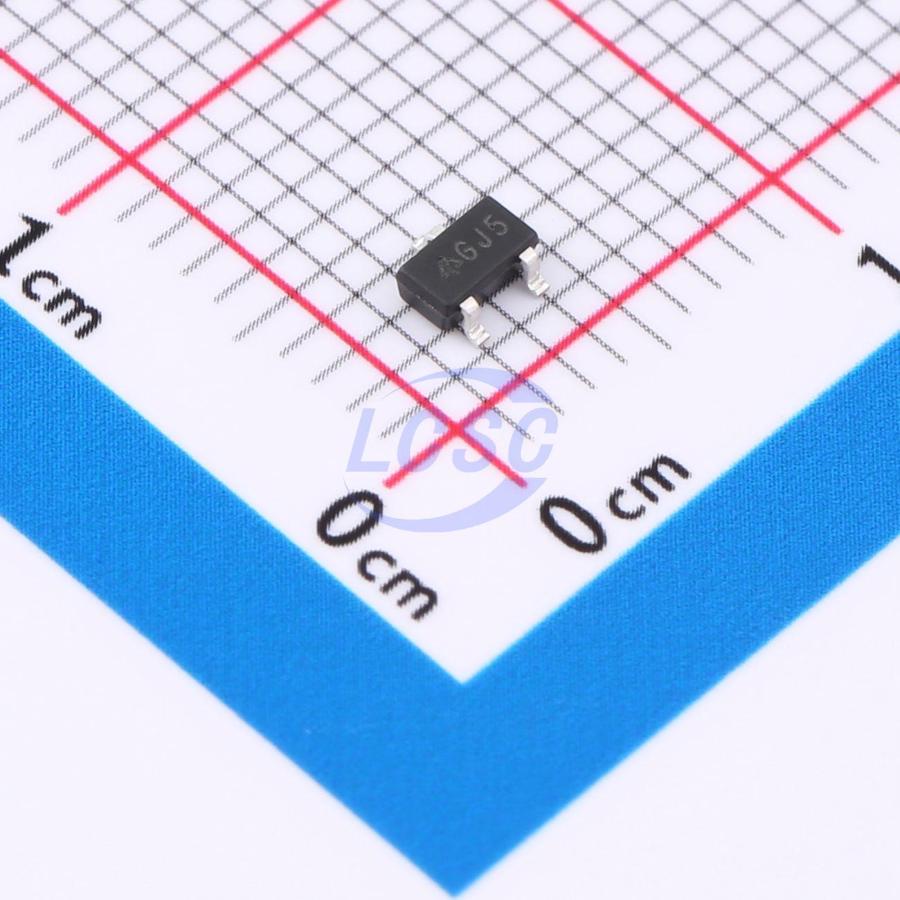

AP2125N-2.8TRG1

2.8V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-3ROHS3 CompliantActive

300mA, HIGH SPEED, EXTREMELY LOW NOISE CMOS LDO REGULATOR

Manufacturer: DIODES
Manufacturer part #: AP2125N-2.8TRG1
Store part #: C6741114
Package / case: SOT-23-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

44 in stock

#C6741114

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹43.50	₹43.50
10+	₹42.64	₹426.40
30+	₹41.99	₹1,259.70
100+	₹41.34	₹4,134.00

Quantity (min 1)

1 × ₹43.50

₹43.50

excl. GST

₹51.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP2125N-2.8TRG1

₹43.50 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.8V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 60uA
Output Configuration: Positive
Operating Voltage: 9V
Output Current: 300mA
Features: Enable control;Short Circuit Protection;Thermal shutdown;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.05 g

Overview

The AP2125 series are 300mA, positive voltage regulator ICs fabricated by CMOS process. Each of these ICs is equipped with a voltage reference, an error amplifier, a resistor network for setting output voltage, a chip enable circuit, a current limit circuit and OTSD (over temperature shut down) circuit to prevent the IC from over current and over temperature. The AP2125 series have features of high ripple rejection, low dropout voltage, low noise, high output voltage accuracy and low current consumption which make them ideal for use in various battery-powered apparatus. The AP2125 have 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.15V and 4.2V fixed voltage versions. These ICs are available in tiny SC-70-5 packages as well as industry standard SOT-23-3 and SOT-23-5 packages.

Applications

CDMA/GSM Cellular Handsets
Battery-powered Equipments
Laptops, Palmtops, Notebook Computers
Hand-held Instruments
PCMCIA Cards Portable Information Appliances

Key features

Excellent Ripple Rejection: 70dB Typical (1.8V Version)
Low Dropout Voltage: 65mV (Iout = 100mA, 3.3V Version)
Low Standby Current: 0.01μA Typical
Low Quiescent Current: 60μA Typical
Extremely Low Noise: 50μVrms Typical
Maximum Output Current: 300mA (Min.)
High Output Voltage Accuracy: ±2%
Compatible with Low ESR Ceramic Capacitor
Excellent Line/Load Regulation
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
