DIODESDatasheet (PDF)

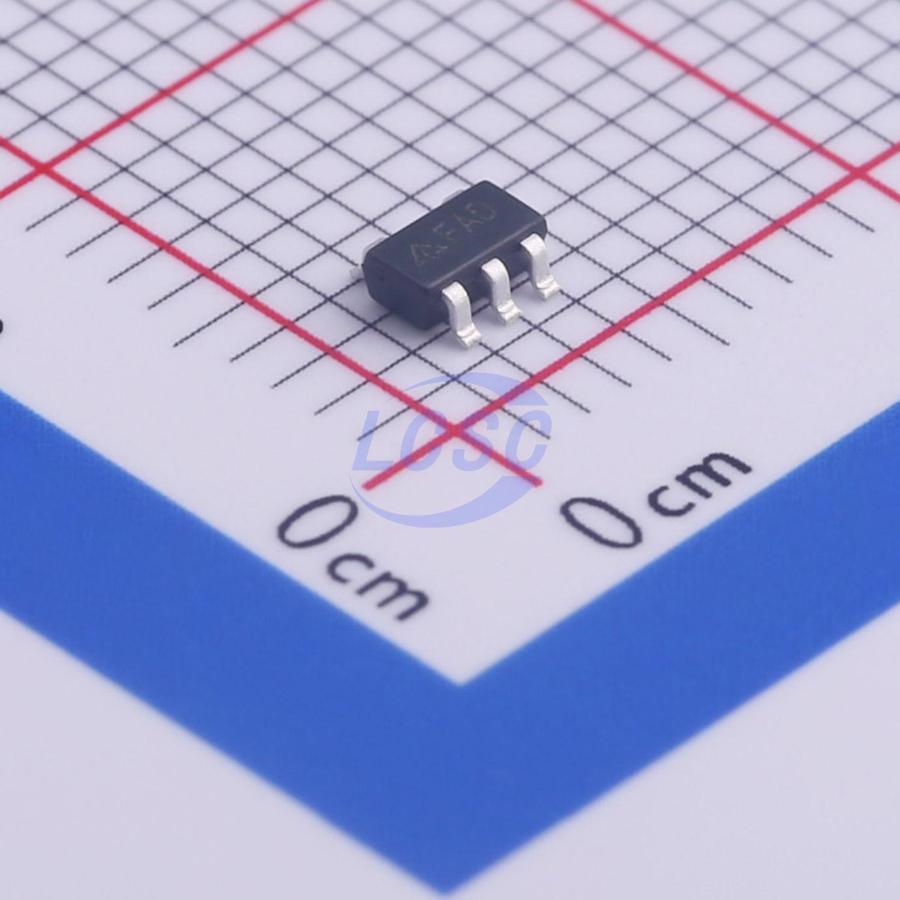

AP2128K-ADJTRG1
800mV~5.5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
300mA HIGH SPEED, EXTREMELY LOW NOISE CMOS LDO REGULATOR
- Manufacturer
- DIODES
- Manufacturer part #
- AP2128K-ADJTRG1
- Store part #
- C460332
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C460332
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.71 | ₹73.55 |
| 50+ | ₹11.75 | ₹587.50 |
| 150+ | ₹10.27 | ₹1,540.50 |
| 500+ | ₹9.14 | ₹4,570.00 |
| 3,000+ | ₹8.26 | ₹24,780.00 |
| 6,000+ | ₹7.81 | ₹46,860.00 |
5 × ₹14.71
₹73.55
excl. GST
₹86.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2128K-ADJTRG1
₹73.55 for 5 + GST
Specifications
- Output Voltage
- 800mV~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Built-in soft-start;Output discharge;Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
The AP2128 series are positive voltage regulator ICs fabricated by CMOS process. The AP2128 provides two kinds of output voltage operation modes for setting the output voltage. Fixed output voltage mode senses the output voltage on VOUT, adjustable output voltage mode needs two resistors as a voltage divider. The AP2128 series have features of low dropout voltage, low noise, high output voltage accuracy, and low current consumption which make them ideal for use in various battery-powered devices. AP2128 have 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.9V, 4.2V, 4.75V, 5.2V fixed voltage versions and 0.8V to 5.5V adjustable voltage version. AP2128 series are available in SOT-23-5 package.
Applications
- Datacom
- Notebook Computers
- Mother Board
Key features
- Wide Operating Voltage: 2.5V to 6V
- Low Dropout Voltage: 170mV@300mA for VOUT = 3.3Vr, 140mV@300mA for VOUT = 5.2V
- High Output Voltage Accuracy: ±2%
- High Ripple Rejection: 68dB @ f=1kHz, 54dB @ f=10kHz
- Low Standby Current: 0.1μA
- Low Quiescent Current: 60μA Typical
- Low Output Noise: 60μVrms@VOUT = 0.8V
- Short Current Limit: 50mA
- Over Temperature Protection
- Compatible with Low ESR Ceramic Capacitor: 1μF for CIN and COUT
- Excellent Line/Load Regulation
- Soft Start Time: 50μs
- Auto Discharge Resistance: RDS(ON) = 60Ω
