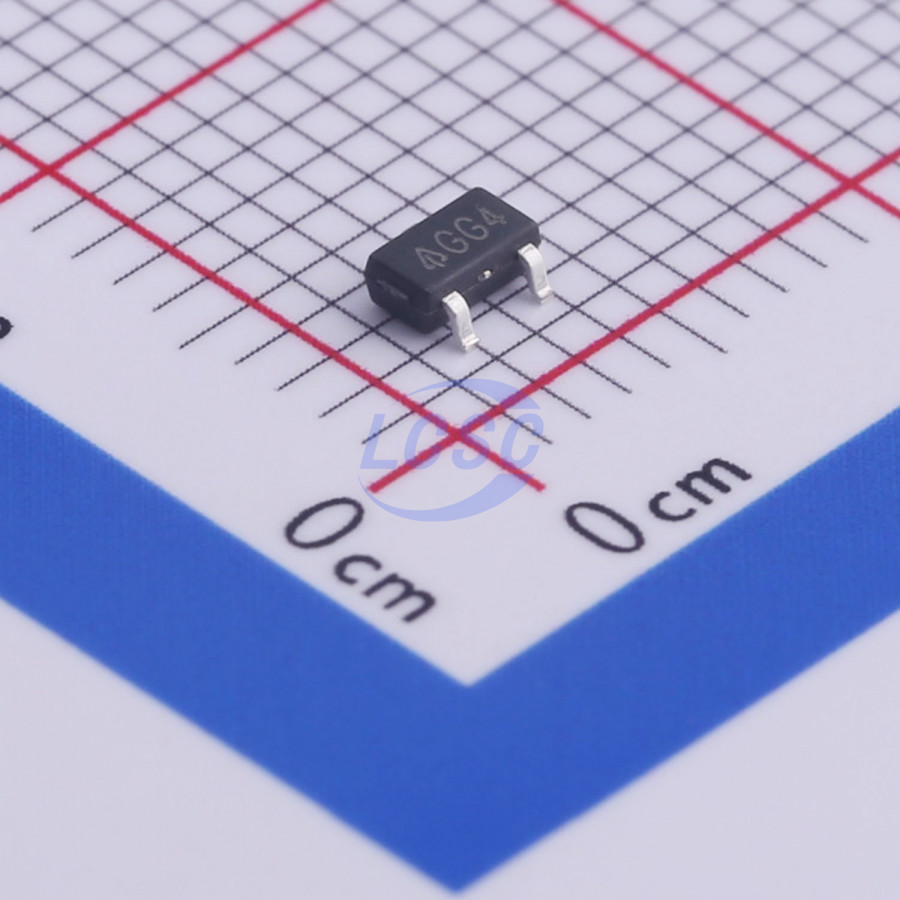

AP2138N-1.8TRG1
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3
SOT-23-3ROHS3 CompliantActive
Ultra-low quiescent current CMOS LDO
- Manufacturer
- DIODES
- Manufacturer part #
- AP2138N-1.8TRG1
- Store part #
- C176955
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,140 in stock
#C176955
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.83 | ₹99.15 |
| 50+ | ₹15.80 | ₹790.00 |
| 150+ | ₹13.77 | ₹2,065.50 |
| 500+ | ₹12.26 | ₹6,130.00 |
| 3,000+ | ₹11.05 | ₹33,150.00 |
| 6,000+ | ₹10.45 | ₹62,700.00 |
5 × ₹19.83
₹99.15
excl. GST
₹117.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2138N-1.8TRG1
₹99.15 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Applications
- Battery Powered Equipment
- Reference Voltage Sources
- Cameras, Video Cameras
- Portable AV Systems
- Mobile Phones
- Communication Tools
- Portable Games
Key features
- Ultra-Low Quiescent Current: 1.0μA
- Typical Output Voltages: 1.2V, 1.4V, 1.5V, 1.8V, 2.1V, 2.2V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V and 4.0V
- High Output Voltage Accuracy: ±2%
- Output Current: 250mA
- Low Dropout Voltage:
- 25mV Typical at Iout = 10mA and VOUT = 3V
- 200mV Typical at Iout = 100mA and VOUT = 3V
- Line Regulation: 6mV Typical
- Load Regulation: 25mV Typical
- Low Output Voltage Temperature Coefficient: ±100ppm/°C
- Low Standby Current: 0.1μA Typical (AP2139)
- Active Quick Output Discharge (AP2139)
- Logic-Controlled Enable (AP2139)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
