DIODESDatasheet (PDF)

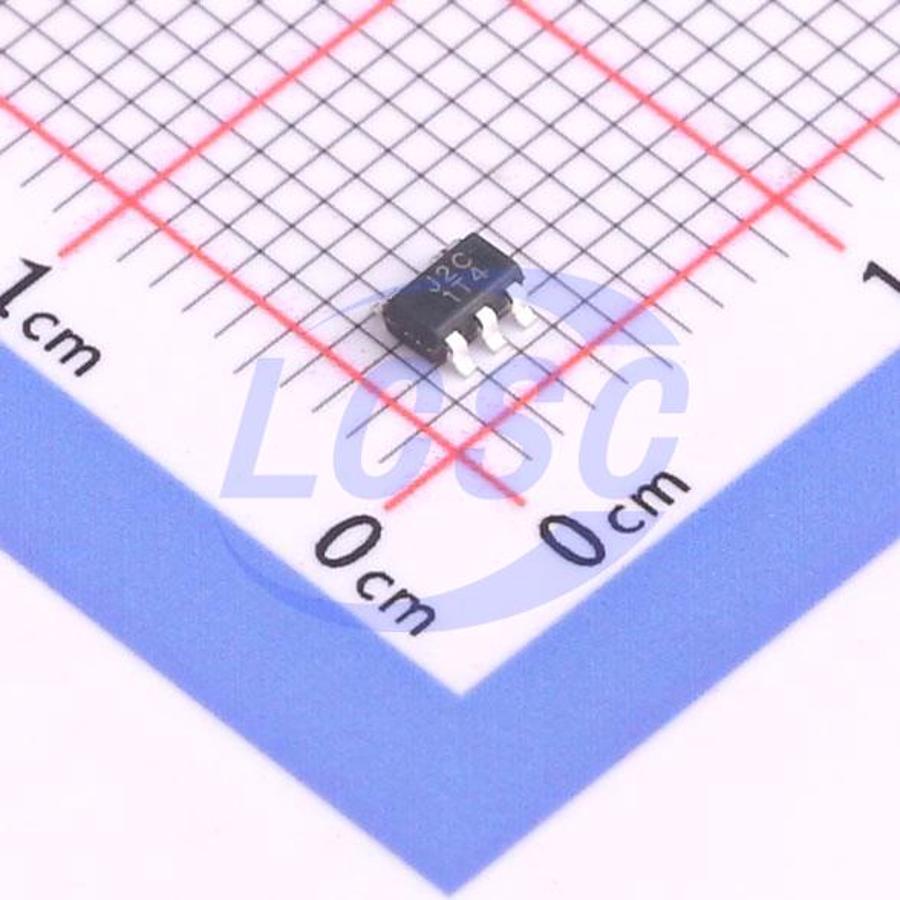

AP2139AK-1.5TRG1
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
Ultra-low quiescent current CMOS LDO
- Manufacturer
- DIODES
- Manufacturer part #
- AP2139AK-1.5TRG1
- Store part #
- C460336
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
485 in stock
#C460336
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.95 | ₹119.75 |
| 50+ | ₹18.63 | ₹931.50 |
| 150+ | ₹16.34 | ₹2,451.00 |
| 500+ | ₹13.48 | ₹6,740.00 |
| 3,000+ | ₹12.22 | ₹36,660.00 |
| 6,000+ | ₹11.46 | ₹68,760.00 |
5 × ₹23.95
₹119.75
excl. GST
₹141.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP2139AK-1.5TRG1
₹119.75 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Applications
- Battery Powered Equipment
- Reference Voltage Sources
- Cameras, Video Cameras
- Portable AV Systems
- Mobile Phones
- Communication Tools
- Portable Games
Key features
- Ultra-Low Quiescent Current: 1.0μA
- Typical Output Voltages: 1.2V, 1.4V, 1.5V, 1.8V, 2.1V, 2.2V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V and 4.0V
- High Output Voltage Accuracy: ±2%
- Output Current: 250mA
- Low Dropout Voltage:
- 25mV Typical at Iout = 10mA and VOUT = 3V
- 200mV Typical at Iout = 100mA and VOUT = 3V
- Line Regulation: 6mV Typical
- Load Regulation: 25mV Typical
- Low Output Voltage Temperature Coefficient: ±100ppm/°C
- Low Standby Current: 0.1μA Typical (AP2139)
- Active Quick Output Discharge (AP2139)
- Logic-Controlled Enable (AP2139)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD52E15QC3#C2978477Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 150 | ₹18.67 · 150 in stock | View |
 | PJ9500M15SE#C20618180PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 60 | ₹8.67 · 60 in stock | View |
 | MD5115#C919721Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 2,765 | ₹15.27 · 2,765 in stock | View |
 | LP2992IM5X-1.5/NOPB#C2863269TI · SOT-23-5 | TI | SOT-23-5 | 10 | ₹495.66 · 10 in stock | View |
 | LW5915A23E#C47018743Lewa Micro · SOT-23-5L | Lewa Micro | SOT-23-5L | 2,740 | ₹6.09 · 2,740 in stock | View |
