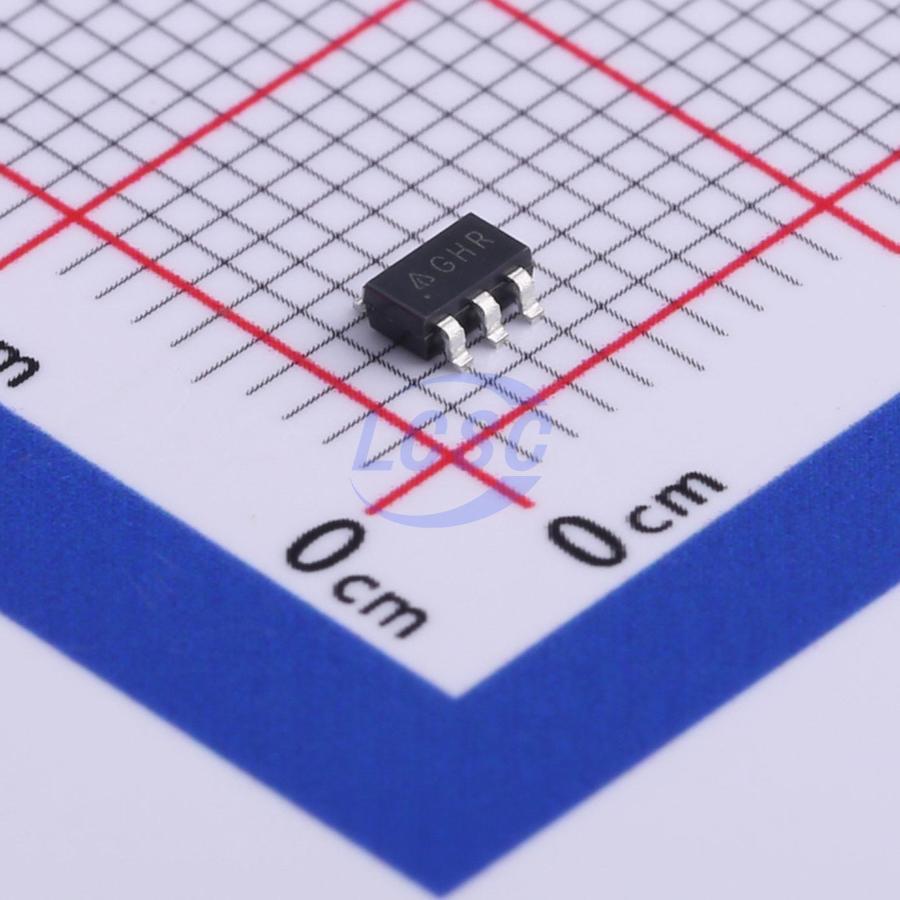

AP3036BKTR-G1
1MHz PWM 1 DC-DC 550mA 2.5V~16V SOT-23-6 LED Drivers RoHS
WHITE LED STEP-UP CONVERTER
- Manufacturer
- DIODES
- Manufacturer part #
- AP3036BKTR-G1
- Store part #
- C526368
- Package / case
- SOT-23-6
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,355 in stock
#C526368
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.42 | ₹147.10 |
| 50+ | ₹22.87 | ₹1,143.50 |
| 150+ | ₹20.06 | ₹3,009.00 |
| 500+ | ₹16.55 | ₹8,275.00 |
| 3,000+ | ₹14.99 | ₹44,970.00 |
| 6,000+ | ₹14.06 | ₹84,360.00 |
5 × ₹29.42
₹147.10
excl. GST
₹173.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP3036BKTR-G1
₹147.10 for 5 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Current
- 550mA
- Operating Temperature
- -40℃~+85℃
- Features
- Over Voltage Protection;Built-in soft-start
- Topology
- Boost
- Voltage - Input(DC)
- 2.5V~16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The AP3036B is an inductor- based DC/DC converter designed to drive up to eight white LEDs in series for backlight. Only one feedback resistor is needed to control the LED current and obtain required brightness. A constant frequency 1.0MHz PWM control scheme is employed in this IC, which means tiny external components can be used. Specifically, 1mm tall inductor and 0.22μF output capacitor for a typical application is sufficient. Additionally, the Schottky diode in boost circuit is integrated on this chip. The AP3036B also provides a disable pin to ease its use for different systems. The output overvoltage protection is implemented in AP3036B. When any LED is broken or in other abnormal conditions, the output voltage will be clamped. The AP3036B is available in standard SOT26 package.
Applications
- Cellular phones
- Digital cameras
- LCD modules
- GPS receivers
- PDAs, handheld computers
Key features
- Inherently Uniform LED Current
- High Efficiency up to 84%
- No Need for External Schottky Diode
- Output Overvoltage Protection (OVP)
- Fixed 1.0MHz Switching Frequency
- Uses Tiny 1mm Tall Inductor
- Requires Only 0.22μF Output Capacitor
- High Frequency Dimming Control
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
