DIODES

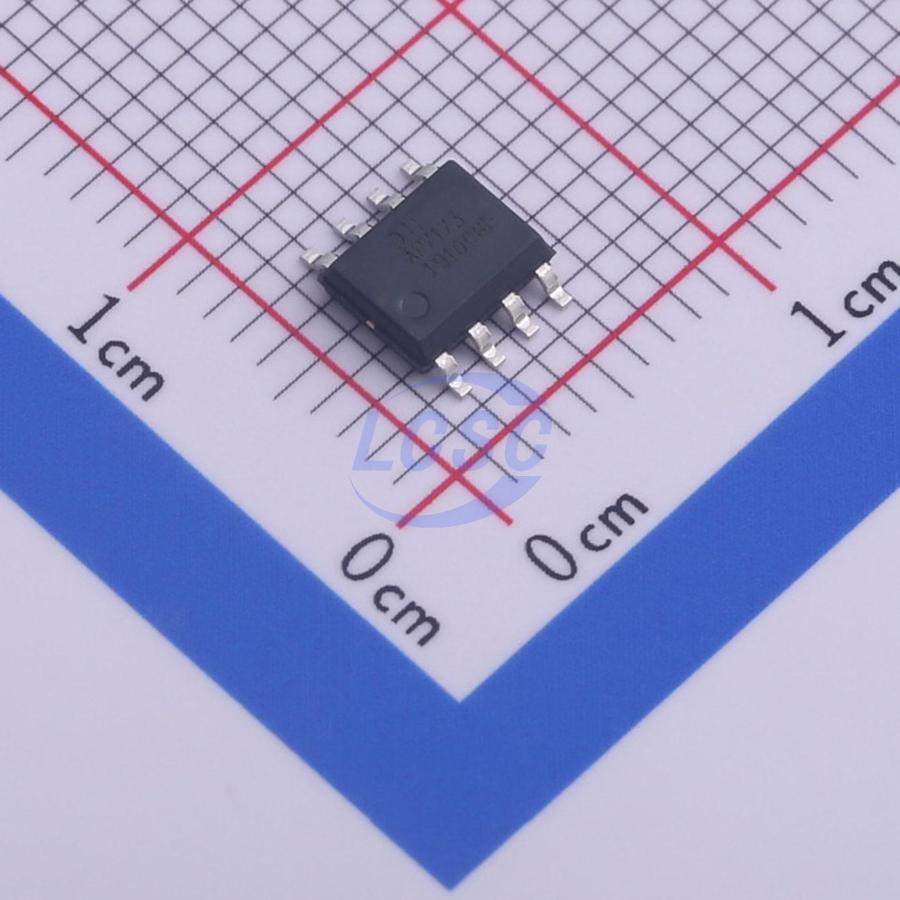

AP7173-SPG-13

800mV~3.3V Positive Adjustable SO-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SO-8-EPROHS3 CompliantActive

Manufacturer: DIODES
Manufacturer part #: AP7173-SPG-13
Store part #: C460365
Package / case: SO-8-EP
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7 in stock

#C460365

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹62.68	₹62.68
10+	₹61.60	₹616.00
30+	₹60.73	₹1,821.90
100+	₹59.87	₹5,987.00

Quantity (min 1)

1 × ₹62.68

₹62.68

excl. GST

₹73.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

AP7173-SPG-13

₹62.68 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 800mV~3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 1.5A
Features: Adjustable soft-start;Enable control;Operating status indication;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.108 g

Overview

The AP7173 is a 1.5A low-dropout (LDO) linear regulator that features a user-programmable soft-start, an enable input and a power-good output. The soft-start reduces inrush current of the load capacitors and minimizes stress on the input power source during startup. The enable input and power-good output allow users to configure power management solutions that can meet the sequencing requirements of FPGAs, DSPs, and other applications with different start-up and power-down requirements. The AP7173 is stable with any type of output capacitor of 2.2μF or more. A precision reference and feedback control deliver 2% accuracy over load, line, and operating temperature ranges. The AP7173 is available in both DFN3030-10 and SO-8EP packages.

Applications

PCs, Servers, Modems, and Set-Top-Boxes
FPGA Applications
DSP Core and I/O Voltages
Post-Regulation Applications
Applications With Sequencing Requirements

Key features

Low VIN and wide VIN range: 1.0V to 5.5V
Bias voltage (VVCC) range: 2.7V to 5.5V
Low Vour range: 0.8V to 3.3V
Low dropout: 165mV typical at 1.5A, VVCC = 5V
2% accuracy over line, load and temperature range
Power-Good (PG) output for supply monitoring and for sequencing of other supplies
Programmable soft-start provides linear voltage startup
Bias supply permits low VIN operation with good transient response
Stable with any output capacitor ≥2.2μF
DFN3030-10 and SO-8EP: available in “Green” molding compound (No Br, Sb)
Lead-free finish/ RoHS Compliant
