DIODESDatasheet (PDF)

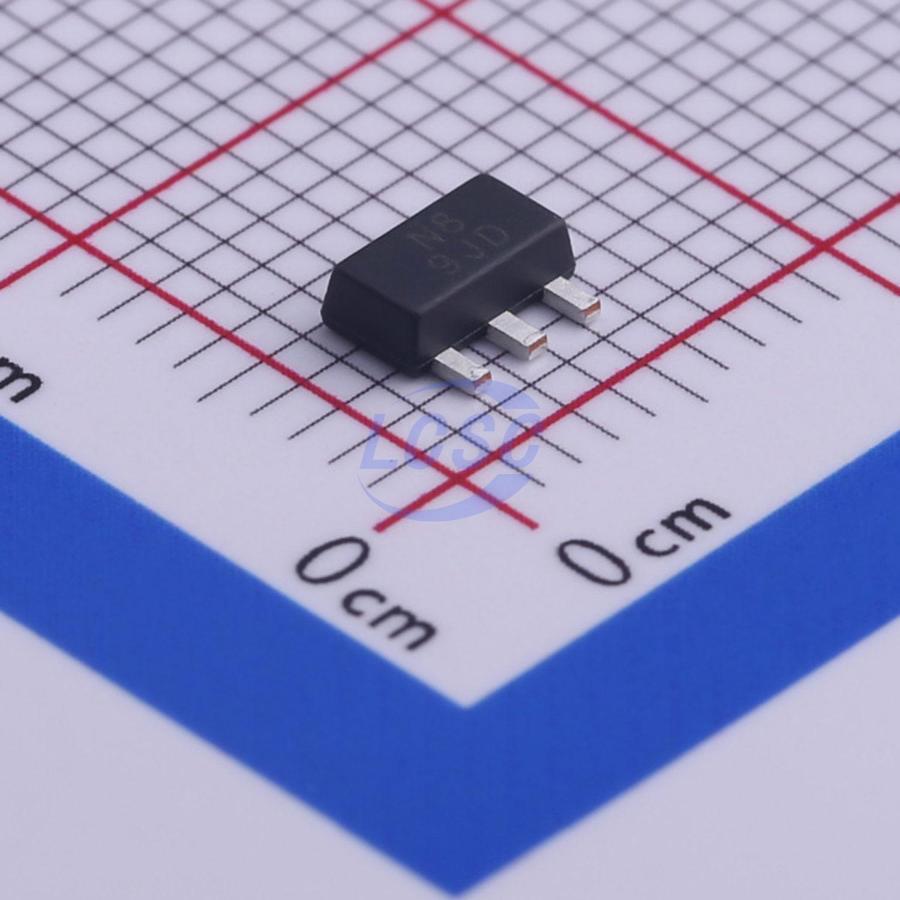

AP7215-33YG-13
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS3 CompliantActive
600mA CMOS LDO
- Manufacturer
- DIODES
- Manufacturer part #
- AP7215-33YG-13
- Store part #
- C460367
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,374 in stock
#C460367
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 2+ | ₹41.42 | ₹82.84 |
| 20+ | ₹35.51 | ₹710.20 |
| 60+ | ₹32.98 | ₹1,978.80 |
| 200+ | ₹29.82 | ₹5,964.00 |
| 1,000+ | ₹27.68 | ₹27,680.00 |
| 2,500+ | ₹26.83 | ₹67,075.00 |
2 × ₹41.42
₹82.84
excl. GST
₹97.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AP7215-33YG-13
₹82.84 for 2 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Reset function
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 2 (multiples of 2)
- Unit weight
- 0.086 g
Overview
The AP7215 low-dropout linear regulator operates from a 3.3V to 5.5V supply and delivers a guaranteed 600mA continuous load current. The high-accuracy output voltage is preset to an internally trimmed voltage. An active-low open-drain reset output remains asserted for at least 20ms (TYP) after input voltage rises above the reset threshold. The space-saving SOP-8L and SOT89-3L package are suitable for “pocket” and hand-held applications.
Applications
- HD/Blue-Ray DVD & MP3/4 Players
- Mobile Handsets and Smart Phones
- Digital Still Camera
- Hand-Held Computers
Key features
- Very Low Dropout Voltage
- Low Current Consumption: Typ. 50μA
- Output Voltage: 3.3V
- Guaranteed 600mA Output
- Input Range up to 5.5V
- Current Limit Protection
- Stable with either electrolytic capacitor or low-ESR MLCC (multi-layer ceramic capacitor)
- Low Temperature Coefficient
- SOP-8L and SOT89-3L: Available in “Green” Molding Compound (No Br, Sb)
- Lead Free Finish / RoHS Compliant
