DIODESDatasheet (PDF)

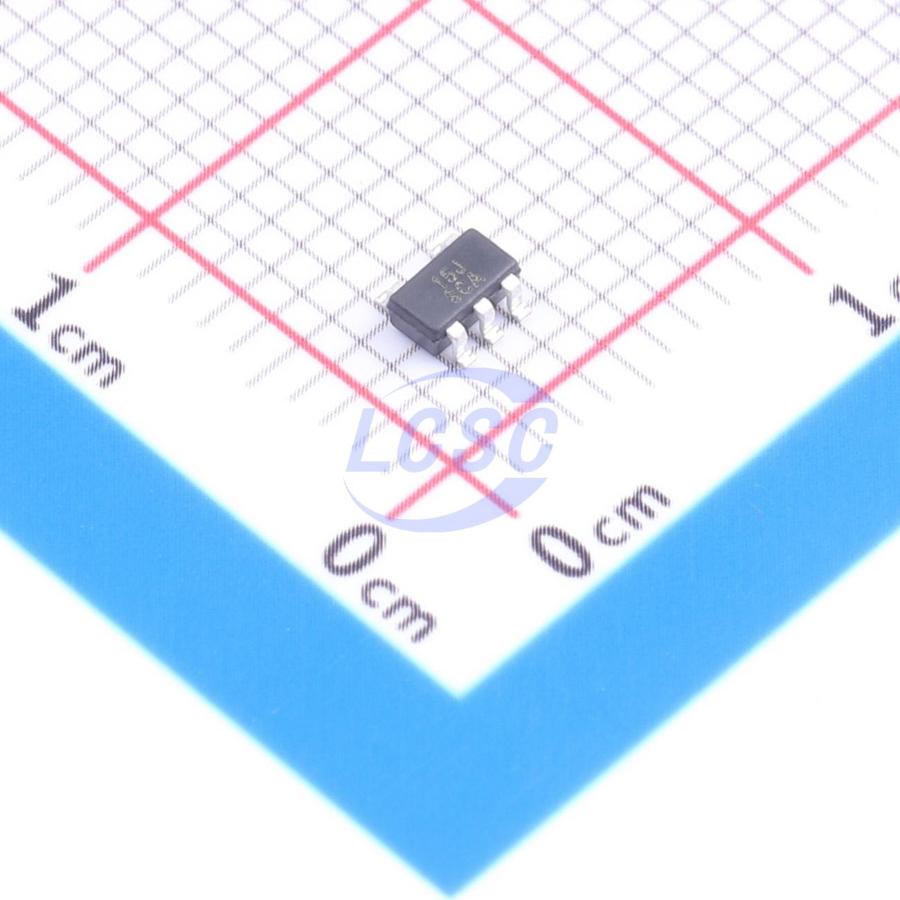

AP7315-25W5-7
2.5V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- AP7315-25W5-7
- Store part #
- C5587965
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5587965
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹32.94 | ₹32.94 |
| 10+ | ₹32.31 | ₹323.10 |
| 30+ | ₹31.88 | ₹956.40 |
| 100+ | ₹31.25 | ₹3,125.00 |
1 × ₹32.94
₹32.94
excl. GST
₹38.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7315-25W5-7
₹32.94 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Operating Voltage
- 5.25V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.098 g
Overview
The AP7315 is a low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise, and low quiescent current. This regulator is based on a CMOS process. The AP7315 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on and off. With the integrated resistor network fixed output voltage versions can be delivered. With its low power consumption and line and load transient response, the AP7315 is well suited for low power handheld communication equipment. The AP7315 is packaged in X2-DFN1010-4, SOT23, and SOT25 packages and allows for the smallest footprint and a dense PCB layout.
Applications
- Smart Phone/PAD
- RF Supply
- Cameras
- Portable Videos
- Portable Media Players
- Wireless Adapters
- Wireless Communication
Key features
- Low VIN and Wide VIN Range: 1.7V to 5.25V
- Guarantee Output Current, 150mA
- VOUT Accuracy ±1%
- Ripple Rejection 75dB at 1kHz
- Low Output Noise, 60μVrms from 10Hz to 100kHz
- Quiescent Current as Low as 35μA
- VOUT Fixed 1.1V to 3.3V
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free, Green Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP7315DQ-25W5-7#C3747953DIODES · SOT-25 | DIODES | SOT-25 | 5 | ₹22.08 · 5 in stock | View |
 | AP7343D-25W5-7#C5944094DIODES · SOT25 | DIODES | SOT25 | 15 | ₹19.25 · 15 in stock | View |
 | AP7343Q-25W5-7#C6741322DIODES · SOT-25 | DIODES | SOT-25 | 71 | ₹47.81 · 71 in stock | View |
 | VRH2501NTX#C697983AnaSem · SOT-23-5 | AnaSem | SOT-23-5 | 2,940 | ₹11.35 · 2,940 in stock | View |
 | LP3980-25B5F#C517195LOWPOWER · SOT-23-5 | LOWPOWER | SOT-23-5 | 1,780 | ₹7.75 · 1,780 in stock | View |
