DIODESDatasheet (PDF)

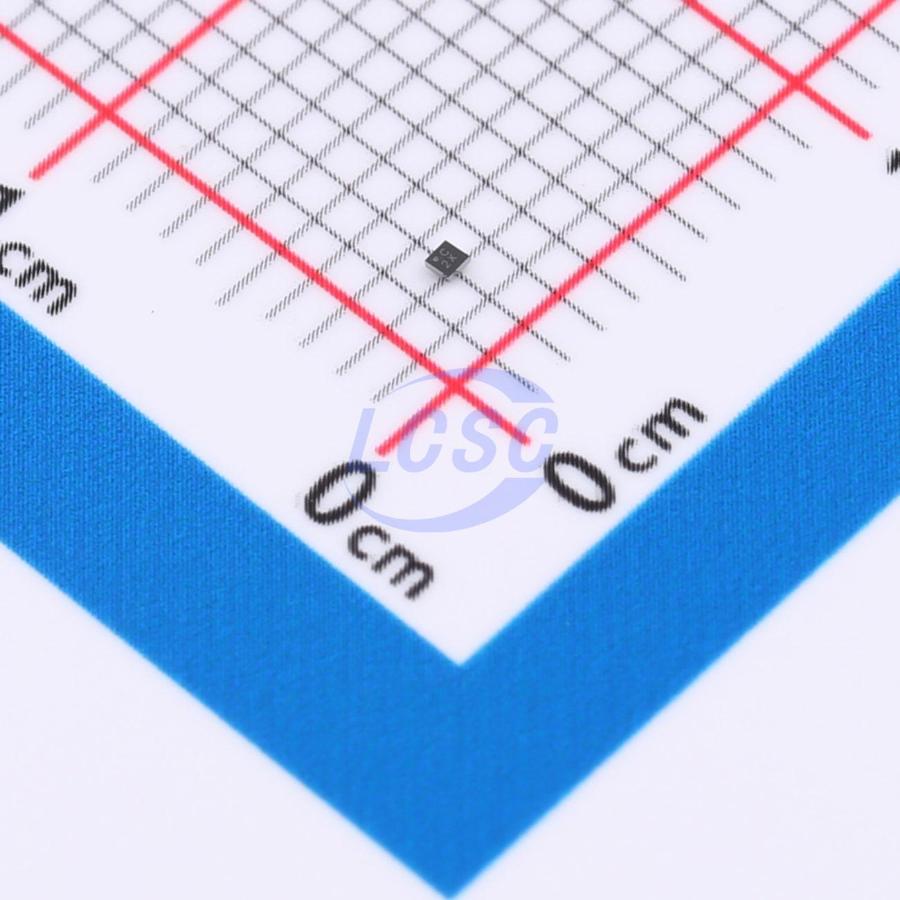

AP7350-18CF4-7
1.8V Positive Fixed X2-WLB0606-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-WLB0606-4ROHS3 CompliantActive
LDO with enable function and ultra-low quiescent current of 150 mA
- Manufacturer
- DIODES
- Manufacturer part #
- AP7350-18CF4-7
- Store part #
- C5244465
- Package / case
- X2-WLB0606-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C5244465
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.82 | ₹109.10 |
| 50+ | ₹21.35 | ₹1,067.50 |
| 150+ | ₹21.04 | ₹3,156.00 |
| 500+ | ₹20.72 | ₹10,360.00 |
5 × ₹21.82
₹109.10
excl. GST
₹128.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7350-18CF4-7
₹109.10 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 250nA
- Output Configuration
- Positive
- Operating Voltage
- 5.25V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The AP7350 is a low dropout regulator with high output voltage accuracy. The AP7350 includes a voltage reference, error amplifier, current limit circuit and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current and miniature package dimensions, the AP7350 is well suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7350 is available in the wafer level chip scale X2-WLB0606-4 package. This part is one of the smallest LDO footprints in the industry allowing for the use of a bare minimum of board space within the application.
Applications
- Wearable Electronics
- Sensor Module for Internet-of-Things (IoT)
- Wireless Communication Module
- Battery-Operated Device
- Camera Image Sensor
Key features
- Low VIN and Wide VIN Range: 2.0V to 5.25V
- Guarantee Output Current, 150mA
- Output Voltage Range: 1.2V to 4.5V
- VOUT Accuracy: ±1%
- Quiescent Current as Low as 0.25μA
- Typical Standby Current 0.02μA
- ESD Protection Exceeds JESD 22: Exceeds 4000V Human Body Model (A114); Exceeds 400V Machine Model (A115)
- Latch-Up Exceeds 400mA per JESD 78, Class I
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish SnAgCu Balls, Solderable per MIL-STD-202, Method 208
- Weight: 0.01 grams (Approximate)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
