DIODESDatasheet (PDF)

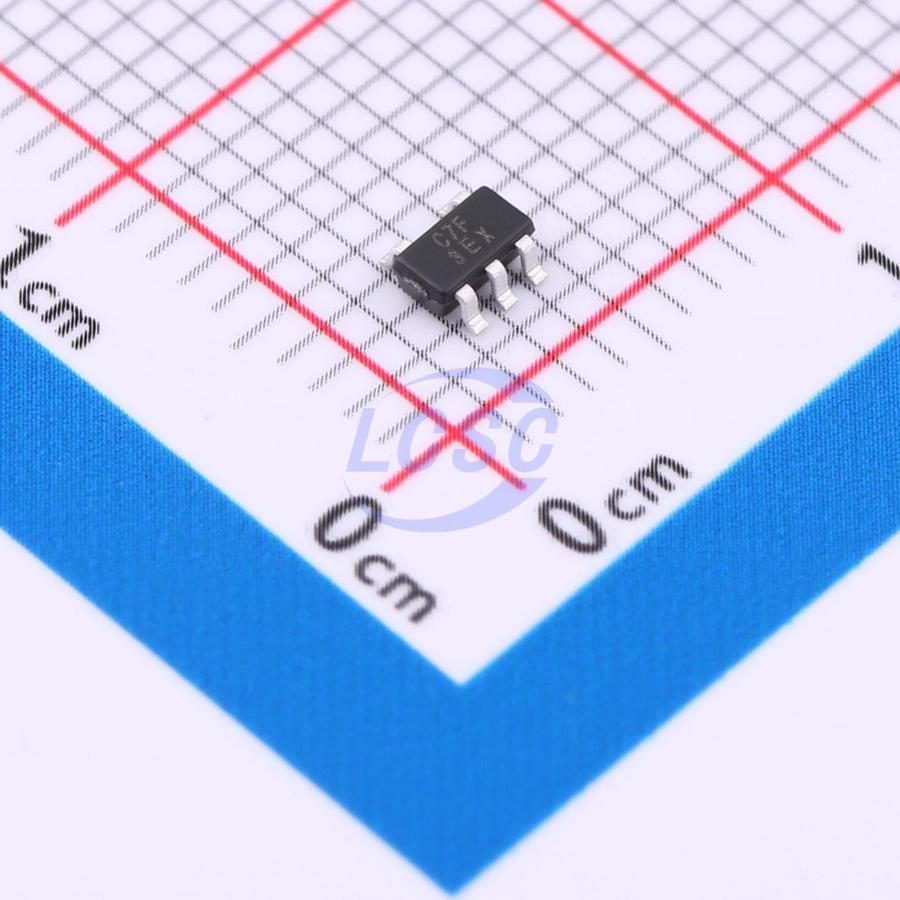

AP7351D-25W5-7
2.5V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25ROHS3 CompliantActive
150mA Ultra-Low Quiescent Current LDO With Enable
- Manufacturer
- DIODES
- Manufacturer part #
- AP7351D-25W5-7
- Store part #
- C5553240
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C5553240
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.60 | ₹138.00 |
| 50+ | ₹27.00 | ₹1,350.00 |
| 150+ | ₹26.61 | ₹3,991.50 |
| 500+ | ₹26.21 | ₹13,105.00 |
5 × ₹27.60
₹138.00
excl. GST
₹162.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7351D-25W5-7
₹138.00 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The AP7351D is a low dropout regulator with high output voltage accuracy. The AP7351D includes a voltage reference, error amplifier, current limit circuit and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current, the AP7351D is well suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7351D is available in the X2-DFN1010-4 (Type B) and SOT25 packages.
Applications
- Wearable Electronics
- Sensor Module for Internet-Of-Things (IOT)
- Wireless Communication Module
- Battery-Operated Device
- Camera
- Image Sensor
Key features
- Low VIN and Wide VIN Range: 1.4V to 5.5V
- Guarantee Output Current, 150mA
- Output Voltage Range: 0.8V to 4.5V
- VOUT Accuracy: ±1%
- Ripple Rejection up to 60dB at 1kHz
- Quiescent Current as Low as 0.5μA
- Typical Standby Current 0.02μA
- Totally Lead-Free & Fully RoHS Compliant
- Halogen- and Antimony-Free. “Green” Device
