DIODESDatasheet (PDF)

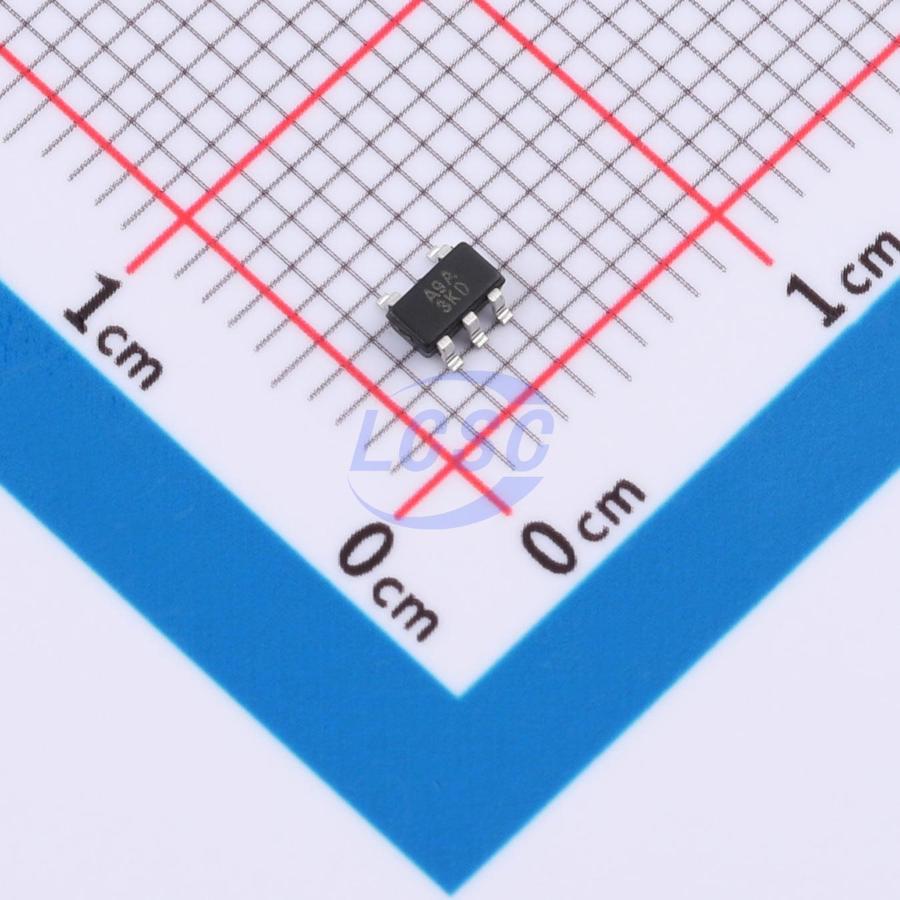

AP7354D-12W5-7
1.2V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- AP7354D-12W5-7
- Store part #
- C7214723
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C7214723
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹49.24 | ₹49.24 |
| 10+ | ₹48.21 | ₹482.10 |
| 30+ | ₹47.39 | ₹1,421.70 |
| 100+ | ₹46.77 | ₹4,677.00 |
1 × ₹49.24
₹49.24
excl. GST
₹58.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7354D-12W5-7
₹49.24 for 1 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 250nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.059 g
Overview
The AP7354 is a low dropout regulator with high output voltage accuracy. The AP7354 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current, the AP7354 is well-suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7354 is available in SOT23, SOT25, and X2-DFN1010-4 (Type B) packages.
Applications
- Wearable Electronics
- Sensor Module for Internet-of-Things (IoT)
- Wireless Communication Module
- Battery-Operated Device Camera Image Sensor
Key features
- Wide VIN Range: 2.0V to 5.5V
- Guarantee Output Current: 150mA
- Output Voltage Range: 1.1V to 4.5V
- VOUT Accuracy: ±1%
- Quiescent Current as Low as 0.25μA
- Output Discharge Available for Devices in SOT25 or X2-DFN1010-4 (Type B) Typical Standby Current: 0.02μA
- ESD Protection Exceeds JESD 22: Exceeds 4000V Human Body Model (A114), Exceeds 400V Machine Model (A115)
- Latch-Up Exceeds 400mA per JESD 78, Class I
- Moisture Sensitivity: Level 1 per J-STD-020
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6206J122MR-G#C2897757TOREX · SOT-25 | TOREX | SOT-25 | 75 | ₹9.72 · 75 in stock | View |
 | TLV71312PQDBVRQ1#C2872351TI · SOT-23-5 | TI | SOT-23-5 | 1,042 | ₹50.86 · 1,042 in stock | View |
 | TMI6050-12#C883398TMI · SOT-23-5 | TMI | SOT-23-5 | 480 | ₹4.93 · 480 in stock | View |
 | TPS7A0312PDBVR#C3744620TI · SOT-23-5 | TI | SOT-23-5 | 432 | ₹65.44 · 432 in stock | View |
 | AP7115-12WG-7#C460363DIODES · SOT-25 | DIODES | SOT-25 | 75 | ₹23.36 · 75 in stock | View |
