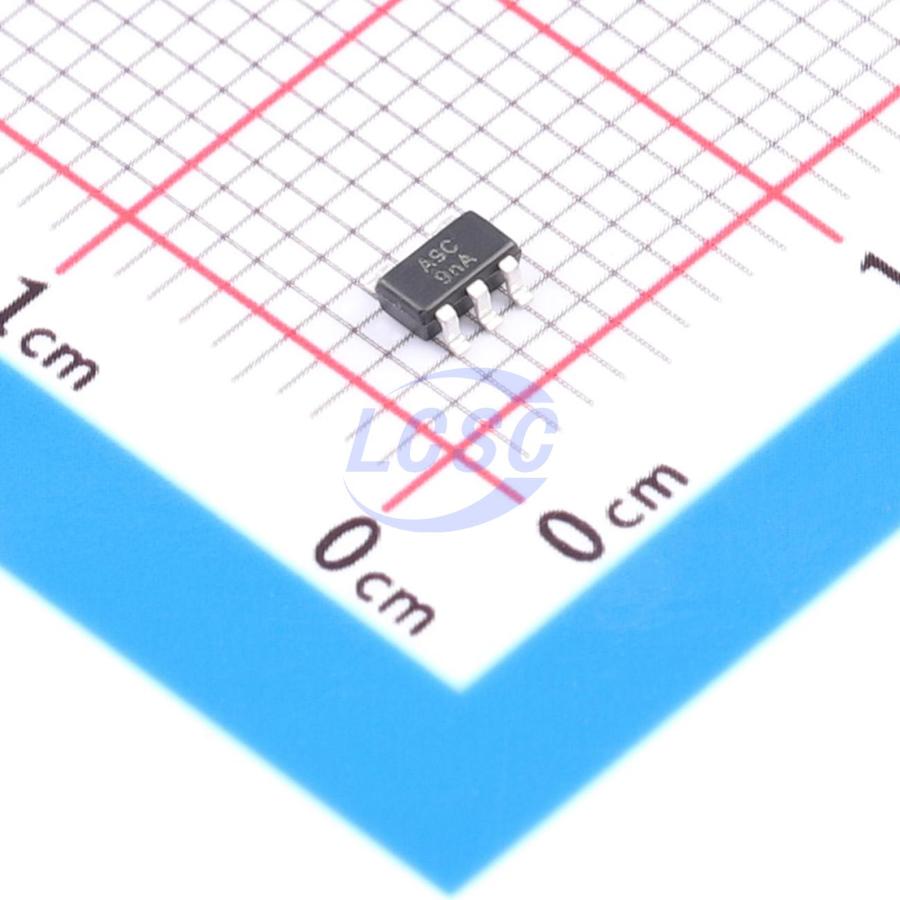

DIODES

AP7354D-18W5-7

1.8V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-25ROHS3 CompliantActive

150mA ULTRA-LOW QUIESCENT CURRENT LDO WITH ENABLE

Manufacturer: DIODES
Manufacturer part #: AP7354D-18W5-7
Store part #: C6500953
Package / case: SOT-25
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13 in stock

#C6500953

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹81.67	₹81.67
10+	₹72.84	₹728.40
30+	₹68.53	₹2,055.90
100+	₹64.23	₹6,423.00
500+	₹61.77	₹30,885.00
1,000+	₹60.33	₹60,330.00

Quantity (min 1)

1 × ₹81.67

₹81.67

excl. GST

₹96.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP7354D-18W5-7

₹81.67 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.8V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 250nA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 150mA
Output Type: Fixed
Features: Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.183 g

Overview

The AP7354 is a low dropout regulator with high output voltage accuracy. The AP7354 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. With its ultra-low quiescent current, the AP7354 is well-suited for low-power handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. The AP7354 is available in SOT23, SOT25, and X2-DFN1010-4 (Type B) packages.

Applications

Wearable Electronics
Sensor Module for Internet-of-Things (IoT)
Wireless Communication Module
Battery-Operated Device Camera Image Sensor

Key features

Wide VIN Range: 2.0V to 5.5V
Guarantee Output Current: 150mA
Output Voltage Range: 1.1V to 4.5V
VOUT Accuracy: ±1%
Quiescent Current as Low as 0.25μA
Output Discharge Available for Devices in SOT25 or X2-DFN1010-4 (Type B) Typical Standby Current: 0.02μA
ESD Protection Exceeds JESD 22: Exceeds 4000V Human Body Model (A114), Exceeds 400V Machine Model (A115)
Latch-Up Exceeds 400mA per JESD 78, Class I
Moisture Sensitivity: Level 1 per J-STD-020
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPTLV70218DBVR#C2937040TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	2,240	₹17.12 · 2,240 in stock	View
TPLP5907MFX-1.8#C5370993TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	6,095	₹19.41 · 6,095 in stock	View
TPS7A0318DBVR#C2862670TI · SOT-23-5	TI	SOT-23-5	20	₹77.51 · 20 in stock	View
TPS7A0318PDBVR#C3747103TI · SOT-23-5	TI	SOT-23-5	70	₹67.06 · 70 in stock	View
WL9005HS5-18#C47817231WPMtek · SOT-23-5L	WPMtek	SOT-23-5L	145	₹10.37 · 145 in stock	View
