DIODES

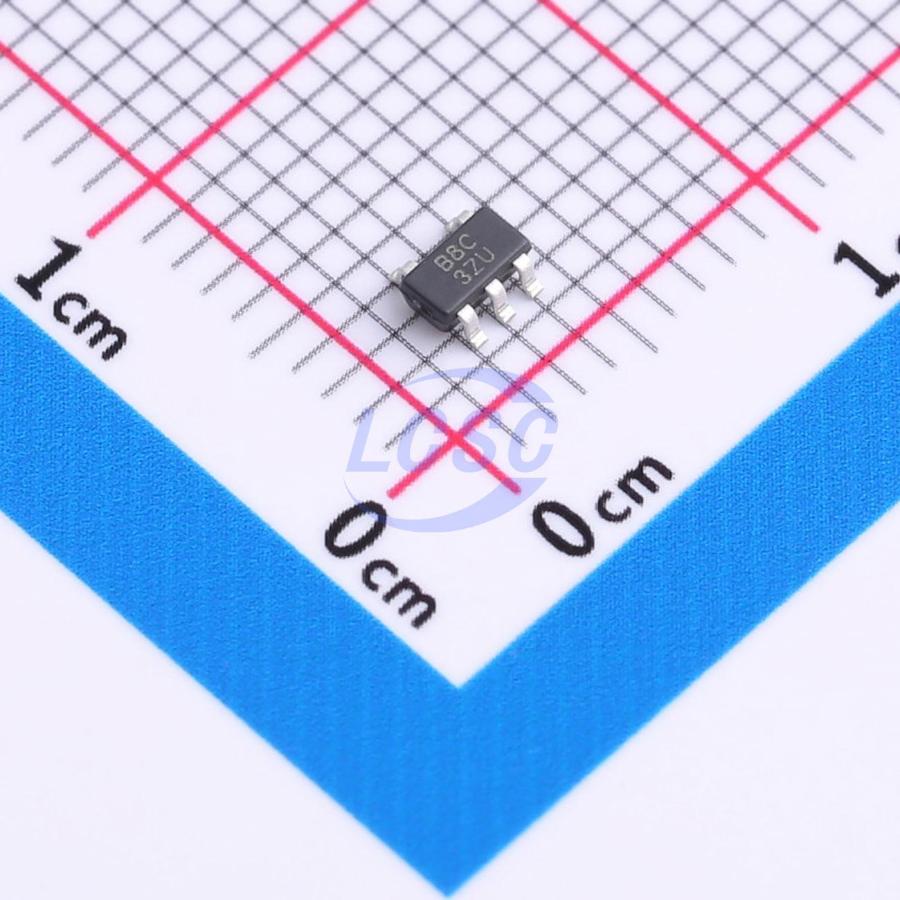

AP7370-30W5-7

3V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-25ROHS3 CompliantSold out at source

Wide Input Voltage Range, 300mA ULDO Regulator

Manufacturer: DIODES
Manufacturer part #: AP7370-30W5-7
Store part #: C3748227
Package / case: SOT-25
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C3748227

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
5+	₹18.89	₹94.45
50+	₹18.44	₹922.00
150+	₹18.15	₹2,722.50
500+	₹17.85	₹8,925.00

Quantity (min 5, multiples of 5)

5 × ₹18.89

₹94.45

excl. GST

₹111.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP7370-30W5-7

₹94.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 1.5uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 18V
Features: Over Current Protection;Reverse-polarity current protection;Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Sold out at source
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The AP7370 series is a positive voltage regulator IC. The AP7370 has features of wide input voltage range, high accuracy, low dropout voltage, current limit, reverse current protection, and ultralow quiescent current which make it ideal for use in various USB and portable devices and instrument application. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP7370 is available in 1.2V, 1.5V, 1.8V, 2.8V, 3.0V, 3.3V, 3.6V and 5.0V fixed output voltage versions. The AP7370 is available in space- saving SOT23, SOT25, SOT89 and U- DFN2020- 6 (Type C) packages.

Applications

Battery-Powered Equipment
Laptop, Palmtops, Notebook Computers
Portable Information Appliances
Metering
Weighing Scales

Key features

Wide Input Voltage Range: Up to 18V
Low Dropout Voltage: VDPOP = 500mV @ IOUT = 100mA
Low Ground Current
High Output Voltage Accuracy
Compatible with Low ESR Ceramic Capacitor
Excellent Line/Load Regulation
Thermal Shutdown Function
Short Current Protection
Reverse Current Protection

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPMIC5219-3.0YM5#C18212651TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	1,730	₹23.40 · 1,730 in stock	View
LR8323B-T30(24V300mA_EN)#C29781217LR · SOT-23-5L	LR	SOT-23-5L	2,730	₹10.86 · 2,730 in stock	View
TPME6214C30M5G#C22435142TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	3,255	₹13.45 · 3,255 in stock	View
PJ73AL30SE#C41784040PJSEMI · SOT-23-5	PJSEMI	SOT-23-5	490	₹11.89 · 490 in stock	View
SL73AL30SE#C53207079Slkor · SOT-23-5	Slkor	SOT-23-5	50	₹12.42 · 50 in stock	View
