DIODESDatasheet (PDF)

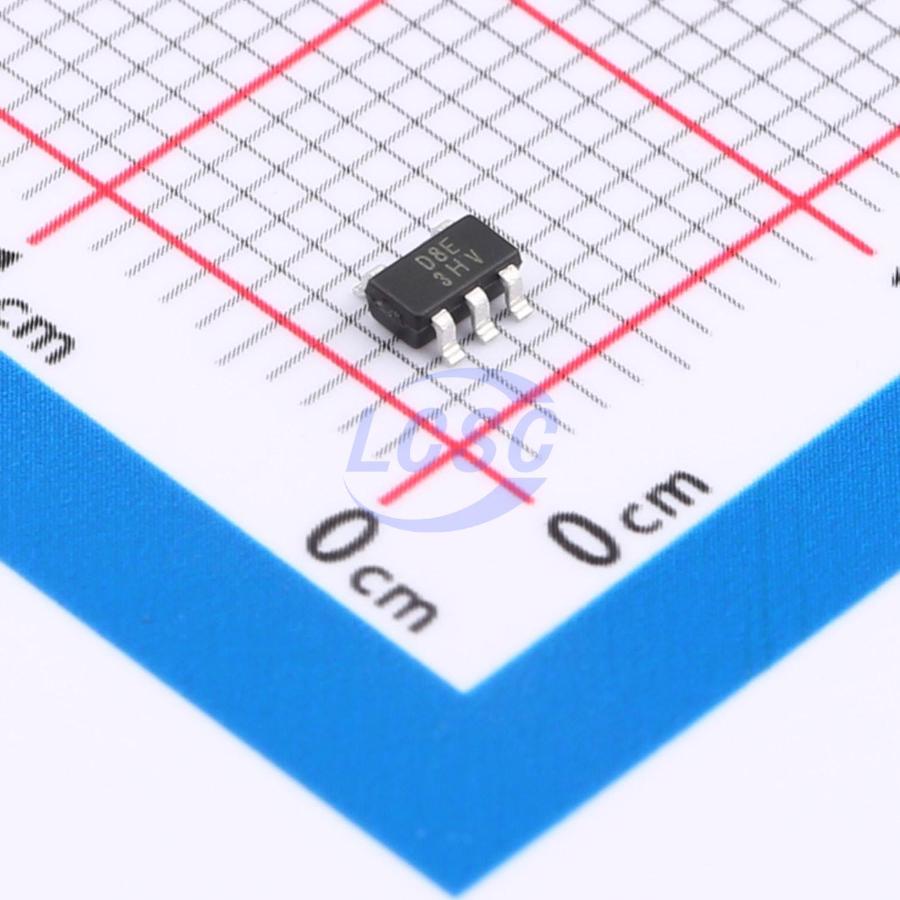

AP7380-30W5-7
3V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25ROHS3 CompliantActive
Wide Input Voltage Range, 150mA ULDO Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7380-30W5-7
- Store part #
- C5563872
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
660 in stock
#C5563872
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.86 | ₹164.30 |
| 50+ | ₹25.82 | ₹1,291.00 |
| 150+ | ₹22.81 | ₹3,421.50 |
| 500+ | ₹19.04 | ₹9,520.00 |
| 3,000+ | ₹17.36 | ₹52,080.00 |
| 6,000+ | ₹16.35 | ₹98,100.00 |
5 × ₹32.86
₹164.30
excl. GST
₹193.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7380-30W5-7
₹164.30 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.8uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- ECL99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
The AP7380 series is a positive voltage regulator IC. The AP7380 has features of wide input voltage range, high accuracy, low dropout voltage, current limit and ultra- low quiescent current which make it ideal for use in various USB and portable devices and instrument application. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP7380 is available in 1.8V, 3.0V, 3.3V, 3.6V, 4.15V, 4.4V and 5.0V fixed output voltage versions. The AP7380 is available in space- saving SOT25 and SOT89 (Option 2) packages.
Applications
- Battery- powered equipments
- Laptops, palmtops, notebook computers
- Portable information appliances
Key features
- Wide Input Voltage Range: Up to 24V
- Low Dropout Voltage: VDROP = 500mV @ IOUT = 50mA
- Low Ground Current
- High Output Voltage Accuracy
- Compatible with Low ESR Ceramic Capacitor
- Excellent Line/Load Regulation
- Thermal Shutdown Function
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP7383-30WR-7#C3743585DIODES · SOT-25 | DIODES | SOT-25 | 5 | ₹16.70 · 5 in stock | View |
| TPS70930QDBVRQ1#C2864240TI · SOT-23-5 | TI | SOT-23-5 | 2,501 | ₹189.28 · 2,501 in stock | View | |
 | LR8323B-T30(24V300mA_EN)#C29781217LR · SOT-23-5L | LR | SOT-23-5L | 2,730 | ₹10.86 · 2,730 in stock | View |
 | TLV70430DBVR-TD#C42422105TDSEMIC · SOT-23-5 | TDSEMIC | SOT-23-5 | 3,005 | ₹27.47 · 3,005 in stock | View |
 | HT7525-3-TP#C49451977TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹15.35 · 3,000 in stock | View |
