DIODESDatasheet (PDF)

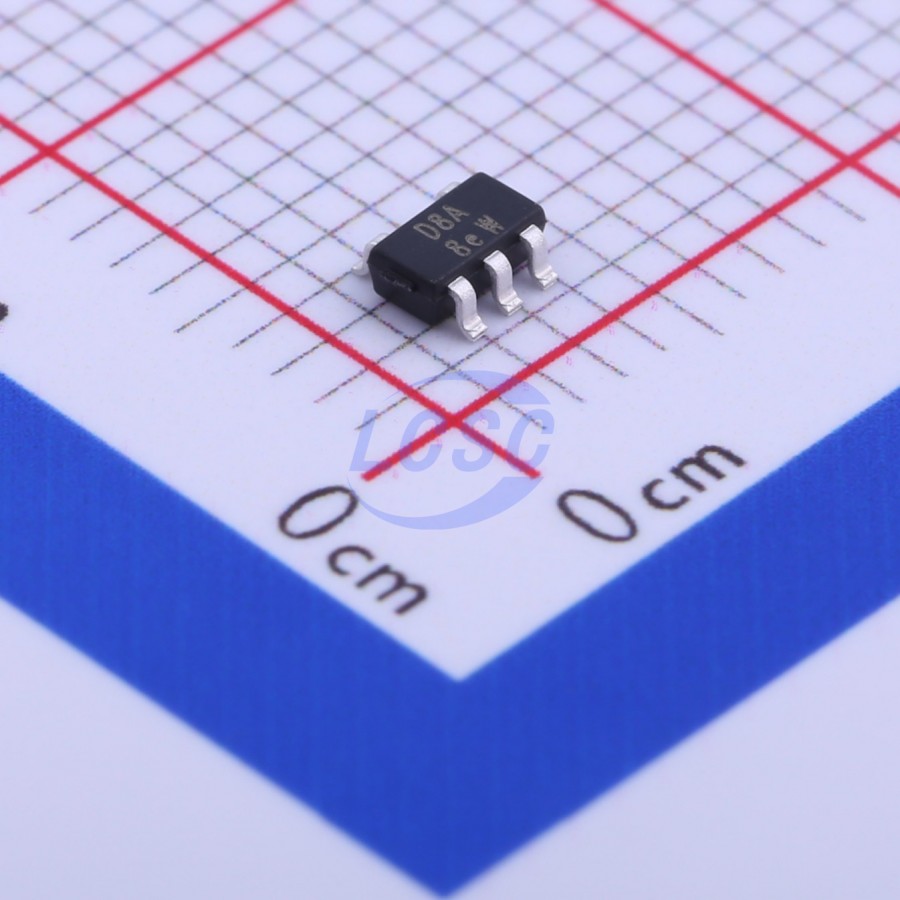

AP7380-33W5-7
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
Wide input voltage range 150mA low dropout regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7380-33W5-7
- Store part #
- C115094
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2 in stock
#C115094
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.62 | ₹82.62 |
| 10+ | ₹67.41 | ₹674.10 |
| 30+ | ₹60.01 | ₹1,800.30 |
| 100+ | ₹52.40 | ₹5,240.00 |
| 500+ | ₹47.84 | ₹23,920.00 |
| 1,000+ | ₹45.66 | ₹45,660.00 |
1 × ₹82.62
₹82.62
excl. GST
₹97.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7380-33W5-7
₹82.62 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.8uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The AP7380 series is a positive voltage regulator IC. The AP7380 has features of wide input voltage range, high accuracy, low dropout voltage, current limit and ultra- low quiescent current which make it ideal for use in various USB and portable devices and instrument application. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP7380 is available in 1.8V, 3.0V, 3.3V, 3.6V, 4.15V, 4.4V and 5.0V fixed output voltage versions. The AP7380 is available in space- saving SOT25 and SOT89 (Option 2) packages.
Applications
- Battery- powered equipments
- Laptops, palmtops, notebook computers
- Portable information appliances
Key features
- Wide Input Voltage Range: Up to 24V
- Low Dropout Voltage: VDROP = 500mV @ IOUT = 50mA
- Low Ground Current
- High Output Voltage Accuracy
- Compatible with Low ESR Ceramic Capacitor
- Excellent Line/Load Regulation
- Thermal Shutdown Function
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTLV70433DBVR#C3011203TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,945 | ₹14.62 · 1,945 in stock | View |
