DIODESDatasheet (PDF)

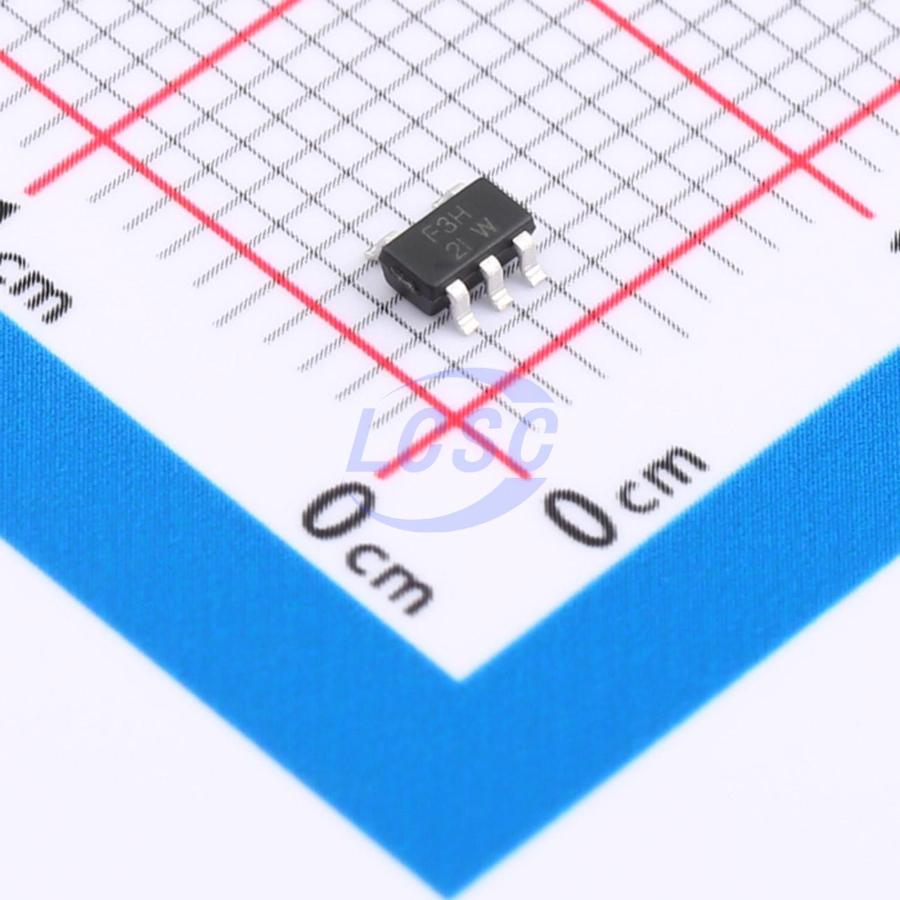

AP7383-18WR-7
1.8V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25ROHS3 CompliantSold out at source
Wide Input Voltage Range, 150mA ULDO Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7383-18WR-7
- Store part #
- C3745131
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C3745131
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.94 | ₹79.70 |
| 50+ | ₹15.60 | ₹780.00 |
| 150+ | ₹15.37 | ₹2,305.50 |
| 500+ | ₹15.15 | ₹7,575.00 |
5 × ₹15.94
₹79.70
excl. GST
₹94.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7383-18WR-7
₹79.70 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.064 g
Overview
The AP7383 series is a positive voltage regulator IC. The AP7383 features a wide- input voltage range, high- accuracy, low- dropout voltage, current limit and ultra- low quiescent current; all of which makes it ideal for use in various USB, portable devices, and instrument application. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current- limit circuit for current protection, and a chip enable circuit. The AP7383 is available in 1.8V, 3.0V, 3.3V, 3.45V, 3.6V, 4.15V, 4.4V and 5.0V fixed- output voltage versions. The AP7383 is available in space- saving SOT25, SOT89 and UDFN2020- 6 (Type C) packages.
Applications
- Battery-powered equipments
- Laptops, palmtops, notebook computers
- Portable information appliances
Key features
- Wide Input Voltage Range: Up to 30V
- Low Dropout Voltage: VDROP = 500 mV @ IOUT = 50 mA
- Low Ground Current
- High Output Voltage Accuracy
- Compatible with Low ESR Ceramic Capacitor
- Excellent Line/Load Regulation
- Thermal Shutdown Function
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LW6518A23E#C51953208Lewa Micro · SOT-23-5L | Lewa Micro | SOT-23-5L | 2,950 | ₹8.51 · 2,950 in stock | View |
 | LTP3559-18NXT5#C50396402Linearin · SOT-23-5 | Linearin | SOT-23-5 | 2,215 | ₹44.15 · 2,215 in stock | View |
 | TPS70918QDBVRQ1#C2877701TI · SOT-23-5 | TI | SOT-23-5 | 48 | ₹256.44 · 48 in stock | View |
 | DS8401N-18S5#C48533048DSTECH · SOT-23-5 | DSTECH | SOT-23-5 | 2,990 | ₹8.97 · 2,990 in stock | View |
 | AP7383-18W5-7#C5588121DIODES · SOT-25 | DIODES | SOT-25 | 15 | ₹15.94 · 15 in stock | View |
