DIODESDatasheet (PDF)

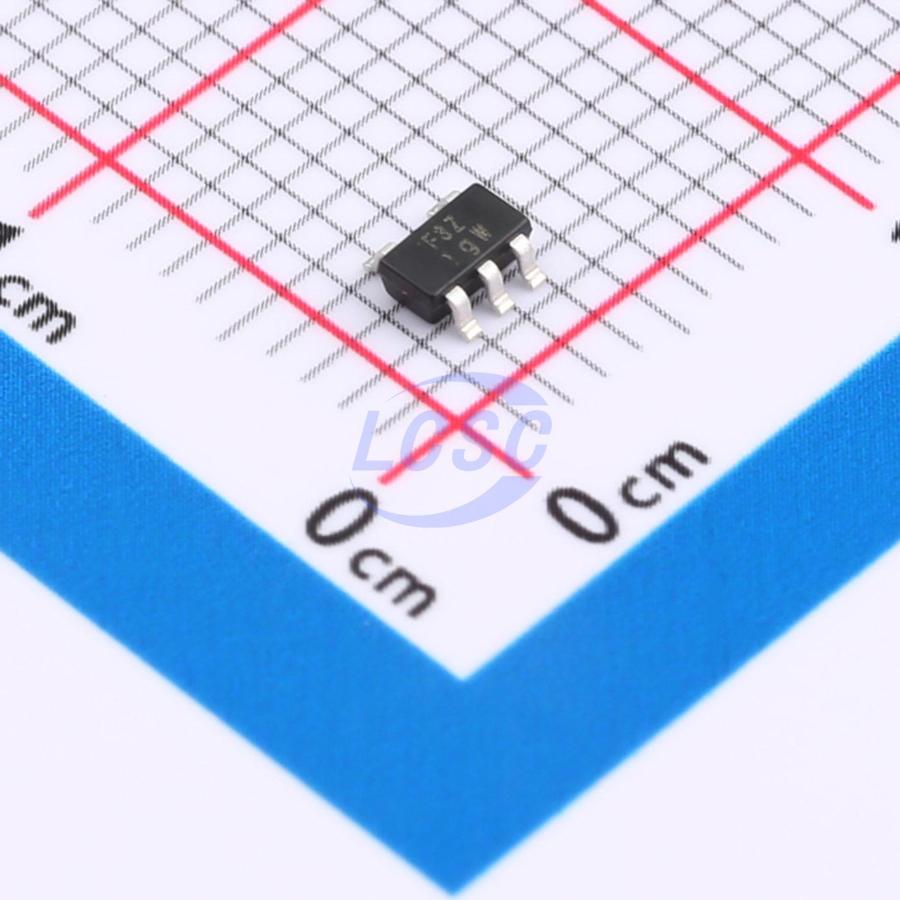

AP7383-345WR-7
3.45V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25ROHS3 CompliantActive
Wide Input Voltage Range, 150mA ULDO Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7383-345WR-7
- Store part #
- C7077013
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7077013
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.24 | ₹86.20 |
| 50+ | ₹16.87 | ₹843.50 |
| 150+ | ₹16.62 | ₹2,493.00 |
| 500+ | ₹16.38 | ₹8,190.00 |
5 × ₹17.24
₹86.20
excl. GST
₹101.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7383-345WR-7
₹86.20 for 5 + GST
Specifications
- Output Voltage
- 3.45V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.8uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.068 g
Overview
The AP7383 series is a positive voltage regulator IC. The AP7383 features a wide- input voltage range, high- accuracy, low- dropout voltage, current limit and ultra- low quiescent current; all of which makes it ideal for use in various USB, portable devices, and instrument application. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current- limit circuit for current protection, and a chip enable circuit. The AP7383 is available in 1.8V, 3.0V, 3.3V, 3.45V, 3.6V, 4.15V, 4.4V and 5.0V fixed- output voltage versions. The AP7383 is available in space- saving SOT25, SOT89 and UDFN2020- 6 (Type C) packages.
Applications
- Battery-powered equipments
- Laptops, palmtops, notebook computers
- Portable information appliances
Key features
- Wide Input Voltage Range: Up to 30V
- Low Dropout Voltage: VDROP = 500 mV @ IOUT = 50 mA
- Low Ground Current
- High Output Voltage Accuracy
- Compatible with Low ESR Ceramic Capacitor
- Excellent Line/Load Regulation
- Thermal Shutdown Function
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS709B345DBVR#C2877736TI · SOT-23-5 | TI | SOT-23-5 | 9 | ₹232.21 · 9 in stock | View |
 | TLV704345DBVR#C2872504TI · SOT-23-5 | TI | SOT-23-5 | 1,020 | ₹83.75 · 1,020 in stock | View |
| TLV704345DBVT#C2870103TI · SOT-23-5 | TI | SOT-23-5 | On request | ₹75.13 · 0 in stock | View | |
| NCP716BCSN345T1G#C3743904onsemi · TSOP-5 | onsemi | TSOP-5 | On request | ₹67.34 · 0 in stock | View | |
