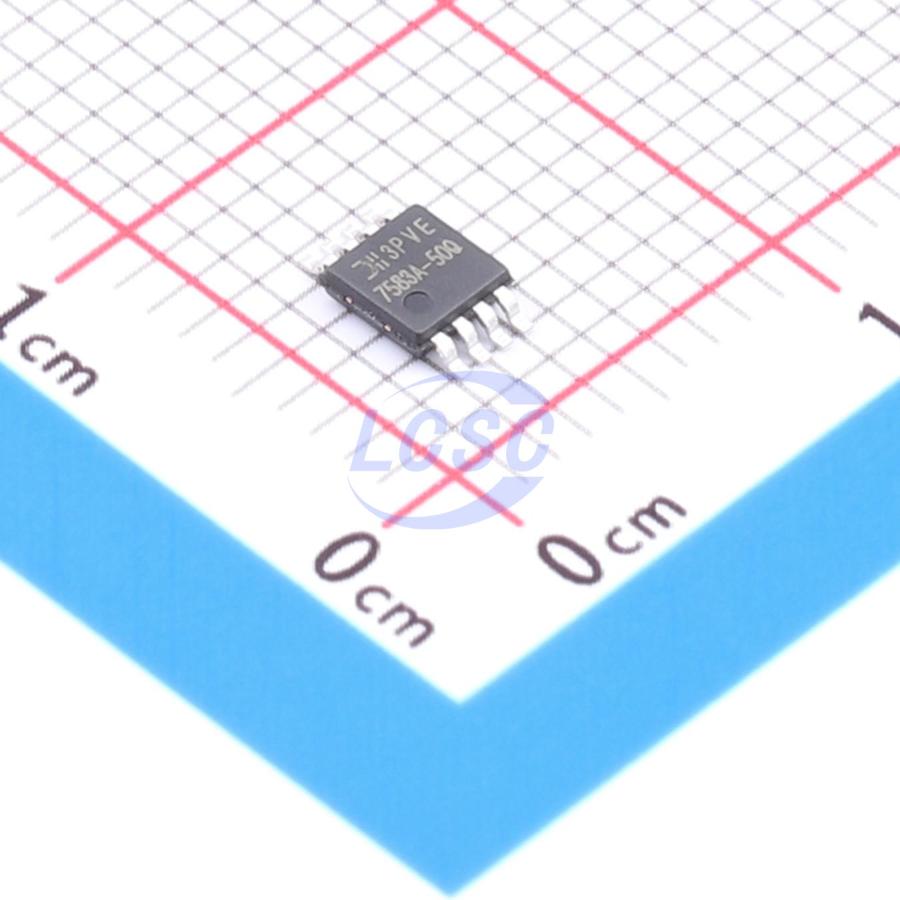

AP7583AQ-50MP-13

The AP7583Q/AQ series are 300mA LDO for automotive battery-powered applications. The AP7583Q features 2.5μA quiescent current at light loads. Therefore, the AP7583Q/AQ are suitable solution to supply always-power-on components, such as microcontroller (MCUs) and controller area network (CAN) transceivers. The AP7583Q/AQ have features of wide input-voltage range, high accuracy, low dropout voltage, current limit and ultra-low quiescent current, which make it ideal for automotive applications. The AP7583AQ has power-good indicator. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current-limit circuit for current protection, and a chip-enable circuit. The AP7583Q/AQ both have 3.3V and 5V fixed output-voltage version, and adjustable version. The AP7583Q/AQ are available in the MSOP-8EP, W-DFN2020-6 (SWP) (Type A1) and TO252-4 (Type C).

Applications

• Powering MCUs and CAN/LIN transceivers
• Automotive head units
• EV and HEV battery management systems
• Body control modules
• Transmission control units (TCU)

Key features

• Wide Input-Voltage Range: 3V to 42V
• Maximum Output Current: 300mA
• Low Dropout Voltage: Vdrop = 320mV @IOUT = 300mA (typ)
• Low Quiescent Current:
• AP7583Q is 2.5µA (typ)
• AP7583AQ is 3µA (typ)
• High Output-Voltage Accuracy: ±1.5%
• Compatible with Low ESR Ceramic Capacitor
• Excellent Line/Load Regulation
• Thermal Shutdown Function
• Short Current Protection Function
• Output Current Limit
• AP7583AQ with Power-Good (PG) Output for Supply Monitoring and for Sequencing of Other Supplies
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony free. "Green" Device
• The AP7583Q/AQ are suitable for automotive applications requiring specific change control; these parts are AEC-Q100 qualified, PPAP capable, and manufactured in IATF16949 certified facilities.
