FHDatasheet (PDF)
AS20B472K302YB

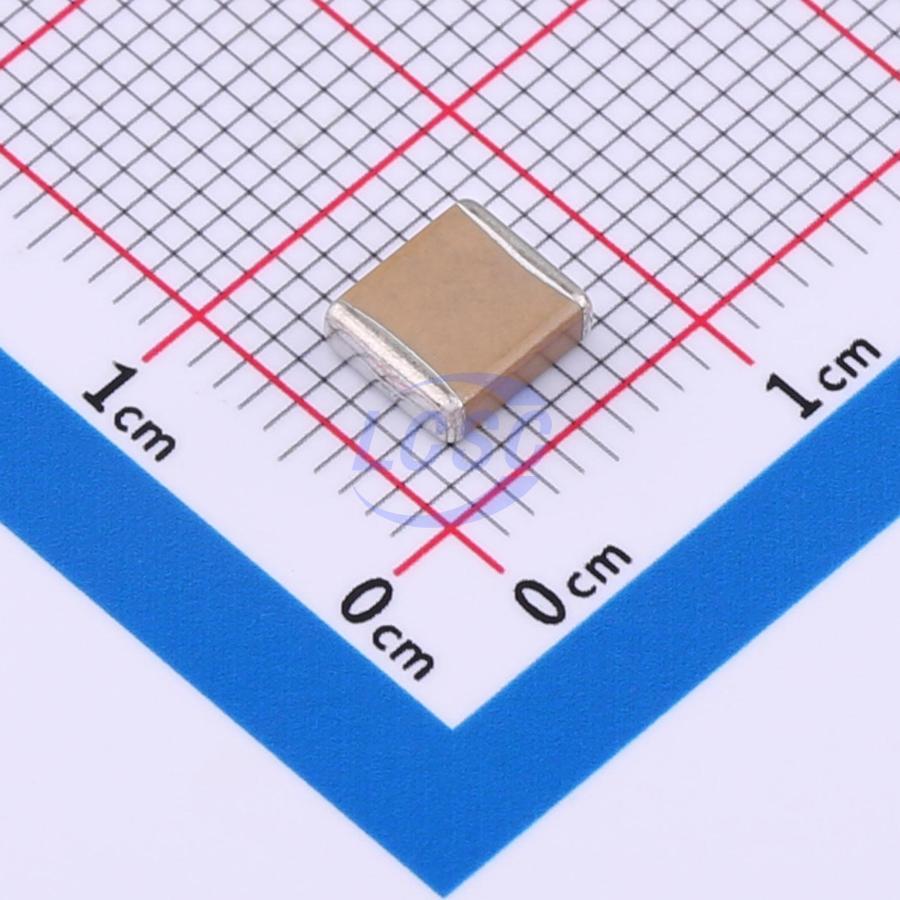

4.7nF ±10% 3kV Ceramic Capacitor X7R 2220
2220RoHSActive
CAP CER 4.7nF 3kV X7R 2220
- Manufacturer
- FH
- Manufacturer part #
- AS20B472K302YB
- Store part #
- C20624307
- Package / case
- 2220
- Category
- Ceramic Capacitors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
579 in stock
#C20624307
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.96 | ₹119.96 |
| 10+ | ₹96.49 | ₹964.90 |
| 30+ | ₹84.75 | ₹2,542.50 |
| 100+ | ₹73.02 | ₹7,302.00 |
| 500+ | ₹66.07 | ₹33,035.00 |
| 1,000+ | ₹62.59 | ₹62,590.00 |
1 × ₹119.96
₹119.96
excl. GST
₹141.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
AS20B472K302YB
₹119.96 for 1 + GST
Specifications
- Capacitance
- 4.7nF
- Temperature Coefficient
- X7R
- Tolerance
- ±10%
- Voltage Rating
- 3kV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.454 g
Overview
Key features
- Multilayer monolithic structure with high reliability
- Excellent solderability and solder resistance, suitable for reflow soldering and wave soldering
- High capacitance with stable performance
- Automotive-grade components compliant with all test conditions specified by AEC-Q200, ensuring enhanced stability and safety in automotive applications
- Available dielectric materials include high temperature-stable COG and high-dielectric-constant X7R, X5R, X7S, X7T
- Standards: GB/T 21041-2007, GB/T 21042-2007, AEC-Q200
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2220B472K302NT#C47345158FH · 2220 | FH | 2220 | 95 | ₹48.44 · 95 in stock | View |
 | SC20B472K302YB#C20611831FH · 2220 | FH | 2220 | On request | ₹83.67 · 0 in stock | View |
 | 2220B472K502NT#C47345147FH · 2220 | FH | 2220 | On request | ₹44.59 · 0 in stock | View |
