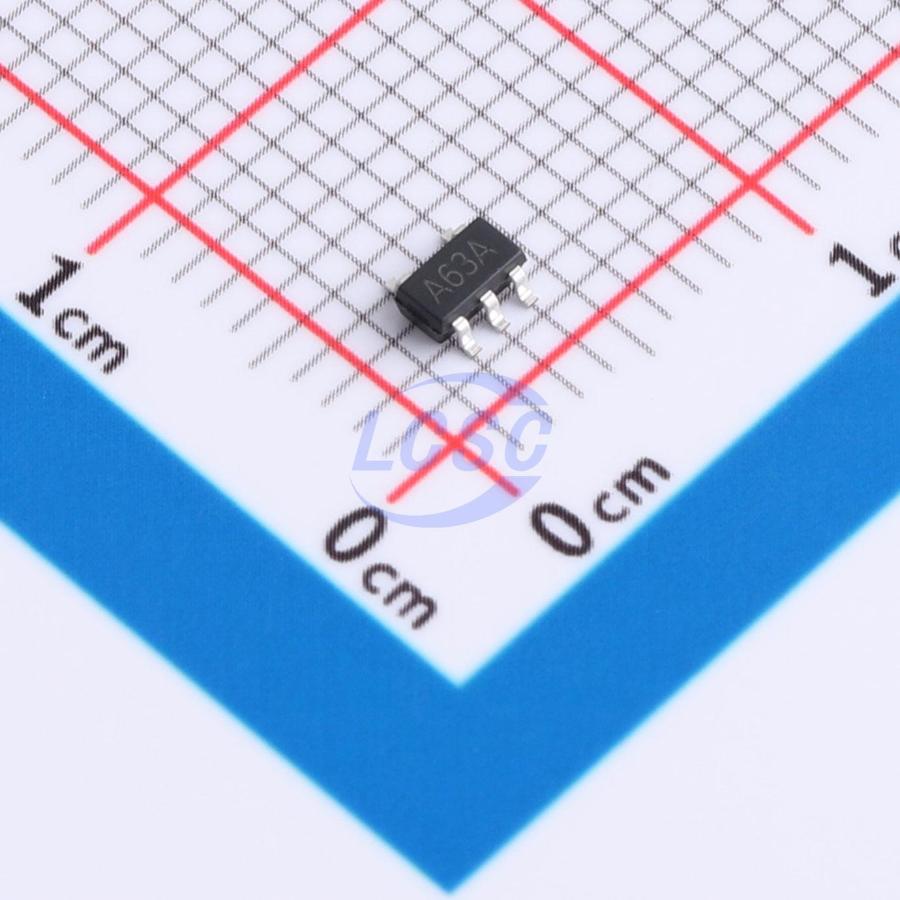

AS321KTR-MS
40mA 1 2mV 400V/ms 85dB 45nA 1MHz 430uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- AS321KTR-MS
- Store part #
- C52988848
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C52988848
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.31 | ₹83.10 |
| 100+ | ₹6.62 | ₹662.00 |
| 300+ | ₹5.78 | ₹1,734.00 |
| 3,000+ | ₹5.15 | ₹15,450.00 |
| 6,000+ | ₹4.63 | ₹27,780.00 |
| 9,000+ | ₹4.38 | ₹39,420.00 |
10 × ₹8.31
₹83.10
excl. GST
₹98.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AS321KTR-MS
₹83.10 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 45nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 430uA
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The AS321KTR-MS strikes a balance between performance and cost for low-power systems. It features high unity-gain bandwidth and a guaranteed slew rate of 0.4V/μs, with a quiescent current of only 430μA per amplifier (at 5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. The AS321KTR-MS comes in a SOT23-5 package. In summary, the AS321KTR-MS is a low-power, wide supply voltage range, high-performance op-amp that can be designed into a wide variety of applications at an economical price without consuming valuable board space.
Applications
- Charger
- Power Supply
- Industrial Control
- Desktop
- Communication Infrastructure
Key features
- Gain-bandwidth product 1MHz
- Low supply current 430μA
- Low input bias current 45nA
- Wide supply voltage range +3V to +32V
- Stable under high capacitive load
