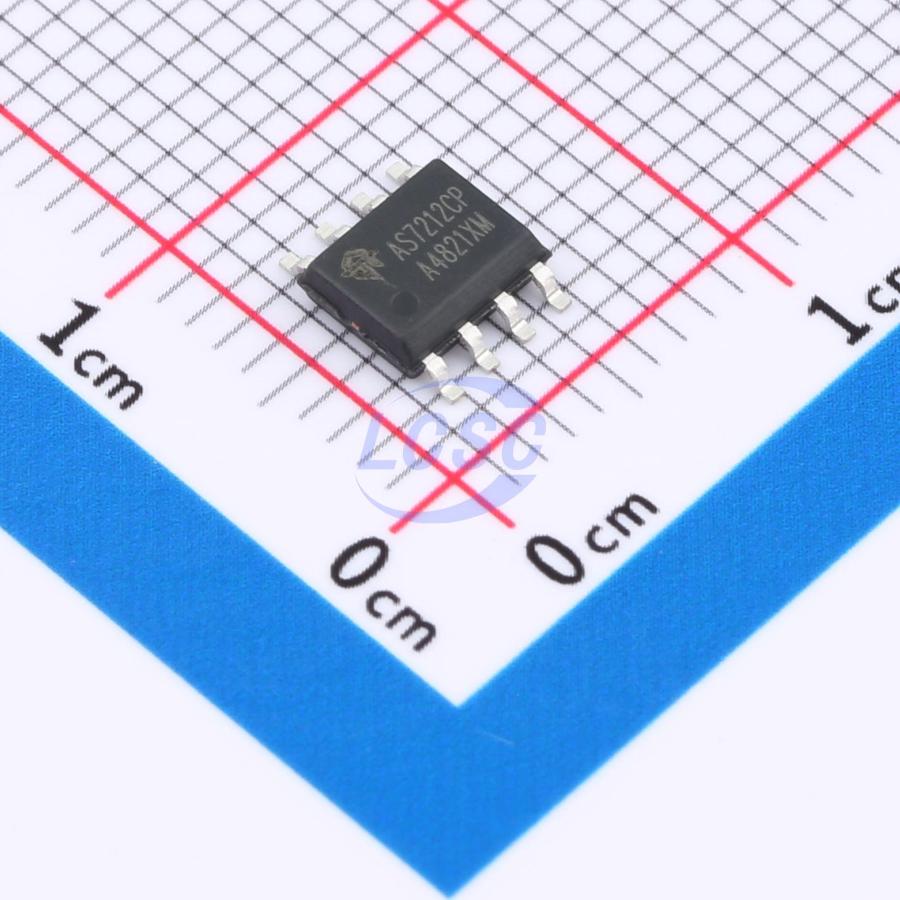

AS7212CP
1 12.5mΩ SOP-8 Power Supply Controllers, Monitors
High-performance, secondary-side synchronous rectification power switch
- Manufacturer
- SHARE
- Manufacturer part #
- AS7212CP
- Store part #
- C48886540
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,405 in stock
#C48886540
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.62 | ₹58.10 |
| 50+ | ₹10.20 | ₹510.00 |
| 150+ | ₹9.50 | ₹1,425.00 |
| 500+ | ₹8.97 | ₹4,485.00 |
| 2,500+ | ₹8.55 | ₹21,375.00 |
| 4,000+ | ₹8.33 | ₹33,320.00 |
5 × ₹11.62
₹58.10
excl. GST
₹68.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AS7212CP
₹58.10 for 5 + GST
Specifications
- MOS Breakdown Voltage
- 60V
- Function
- Multi-mode compatible control;Abnormal state protection;Leading edge blanking
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 12.5mΩ
- Operating Voltage
- 4.9V~5.4V
- Turn-Off Delay
- 30ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.173 g
Overview
AS7212CP is a high-performance synchronous rectification power switch designed to replace secondary-side Schottky diodes in flyback converters. It integrates a 60V ultra-low on-resistance power MOSFET to improve system efficiency. The device supports both "high-side floating" and "low-side common-ground" synchronous rectification topologies, and is compatible with multiple operating modes including DCM, QR mode, and CCM. It features a proprietary VCC supply technology that prevents the chip from operating under undervoltage conditions, and integrates VCC undervoltage protection, overvoltage clamping, and drive pin noise immunity. AS7212CP is housed in a compact SOP-8 package.
Applications
- Synchronous rectification for adapters and chargers
- Flyback controllers
- Other switching power supply control systems
Key features
- Synchronous rectification for switching power supplies
- Integrated 60V voltage-rated power transistor
- Compatible with DCM, QR, and CCM operating modes
- Proprietary rectifier turn-on technology
- Integrated VCC supply technology
- VCC undervoltage lockout protection
- Overvoltage clamping
- Minimal external components
