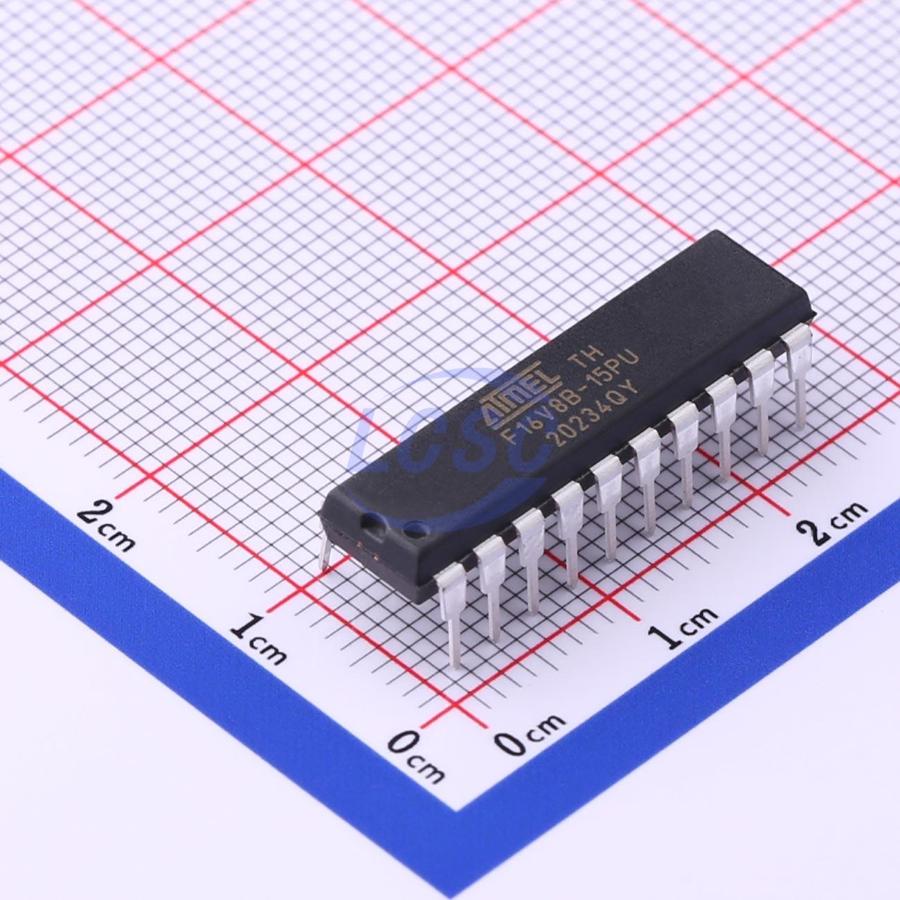

ATF16V8B-15PU

The Atmel ATF16V8B(QL) is a high-performance CMOS Electrically-Erasable Programmable Logic Device (EE PLD) that utilizes the Atmel proven electrically-erasable Flash memory technology. All speed ranges are specified over the full 5.0V±10% range for industrial temperature range. The ATF16V8BQL provides edge-sensing low-power PLD solution with low standby power consumption (5mA typical). The ATF16V8BQL powers down automatically to the low-power mode through the Input Transition Detection (ITD) circuitry when the device is idle. The ATF16V8B(QL) incorporate a super set of the generic architectures, which allows direct replacement of the 16R8 family and most 20-pin combinatorial PLDs. Eight outputs are each allocated eight product terms. Three different modes of operation, configured automatically with software, allow highly complex logic functions to be realized.

Key features

• Industry-standard Architecture Emulates Many 20-pin PALs
• Low-cost
• Easy-to-use Software Tools
• High-speed Electrically-erasable Programmable Logic Devices
• 10ns Maximum Pin-to-pin Delay
• Automatic 5mA Standby for ATF16V8BQL
• CMOS and TTL Compatible Inputs and Outputs
• Input and I/O Pull-up Resistors
• Advanced Flash Technology
• Reprogrammable
• 100% Tested
• High-reliability CMOS Process
• 20 Year Data Retention
• 100 Erase/Write Cycles
• 2,000V ESD Protection
• 200mA Latchup Immunity
• Industrial Temperature Range
• Dual-in-line and Surface Mount Packages in Standard Pinouts
• PCI-compliant
• Green Package Options (Pb/Halide-free/RoHS Compliant)
