VISHAYDatasheet (PDF)

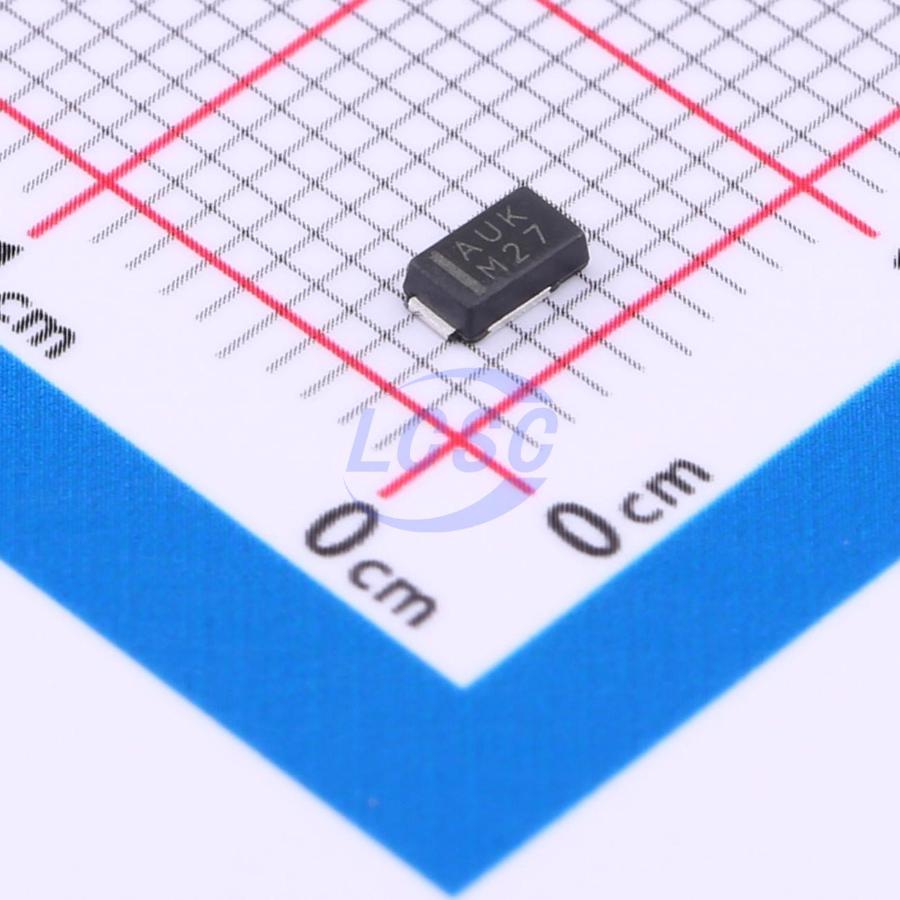

AU1PK-M3/84A
75ns 1 Independent 800V 1.85V@1A 1A DO-220AA(SMP) Single Diodes RoHS
DO-220AA(SMP)ROHS3 CompliantActive
Surface Mount Ultrafast Avalanche Rectifiers
- Manufacturer
- VISHAY
- Manufacturer part #
- AU1PK-M3/84A
- Store part #
- C4990244
- Package / case
- DO-220AA(SMP)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,190 in stock
#C4990244
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.73 | ₹158.65 |
| 50+ | ₹27.49 | ₹1,374.50 |
| 150+ | ₹25.68 | ₹3,852.00 |
| 500+ | ₹23.40 | ₹11,700.00 |
| 3,000+ | ₹22.40 | ₹67,200.00 |
| 6,000+ | ₹21.79 | ₹1,30,740.00 |
5 × ₹31.73
₹158.65
excl. GST
₹187.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AU1PK-M3/84A
₹158.65 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 75ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 800V
- Voltage - Forward(Vf@If)
- 1.85V@1A
- Reverse Leakage Current (Ir)
- 1uA@800V
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 25A
- Avalanche Energy
- 20mJ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
Applications
- For use in secondary rectification and freewheeling for ultrafast switching speeds of AC/AC and DC/DC converters in high temperature conditions for both consumer and automotive applications.
Key features
- Very low profile - typical height of 1.0 mm Available
- Ideal for automated placement
- Glass passivated pellet chip junction
- Ultrafast recovery times for high frequency
- Low reverse current
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AU1PM-M3/84A#C4990365VISHAY · DO-220AA(SMP) | VISHAY | DO-220AA(SMP) | On request | ₹54.97 · 0 in stock | View |
