VBsemi ElecDatasheet (PDF)

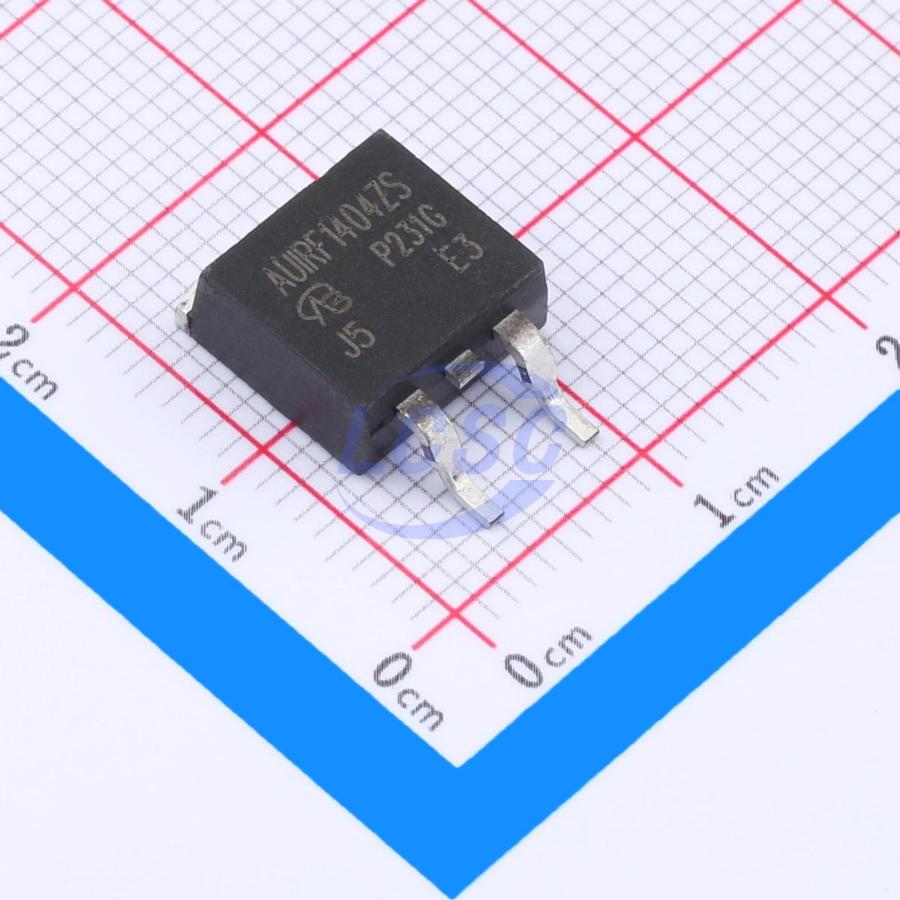

AUIRF1404ZS-VB
N-Channel 40V 150A 312W Surface Mount D2PAK(TO-263)
D2PAK(TO-263)RoHSActive
MOSFET N-CH 40V 150A D2PAK(TO-263)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AUIRF1404ZS-VB
- Store part #
- C5355744
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C5355744
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹188.43 | ₹188.43 |
| 10+ | ₹156.89 | ₹1,568.90 |
| 50+ | ₹132.34 | ₹6,617.00 |
| 100+ | ₹112.79 | ₹11,279.00 |
| 500+ | ₹104.00 | ₹52,000.00 |
| 800+ | ₹100.01 | ₹80,008.00 |
1 × ₹188.43
₹188.43
excl. GST
₹222.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AUIRF1404ZS-VB
₹188.43 for 1 + GST
Specifications
- Drain to Source Voltage
- 40V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 150A
- Pd - Power Dissipation
- 312W
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 1.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
