VBsemi ElecDatasheet (PDF)

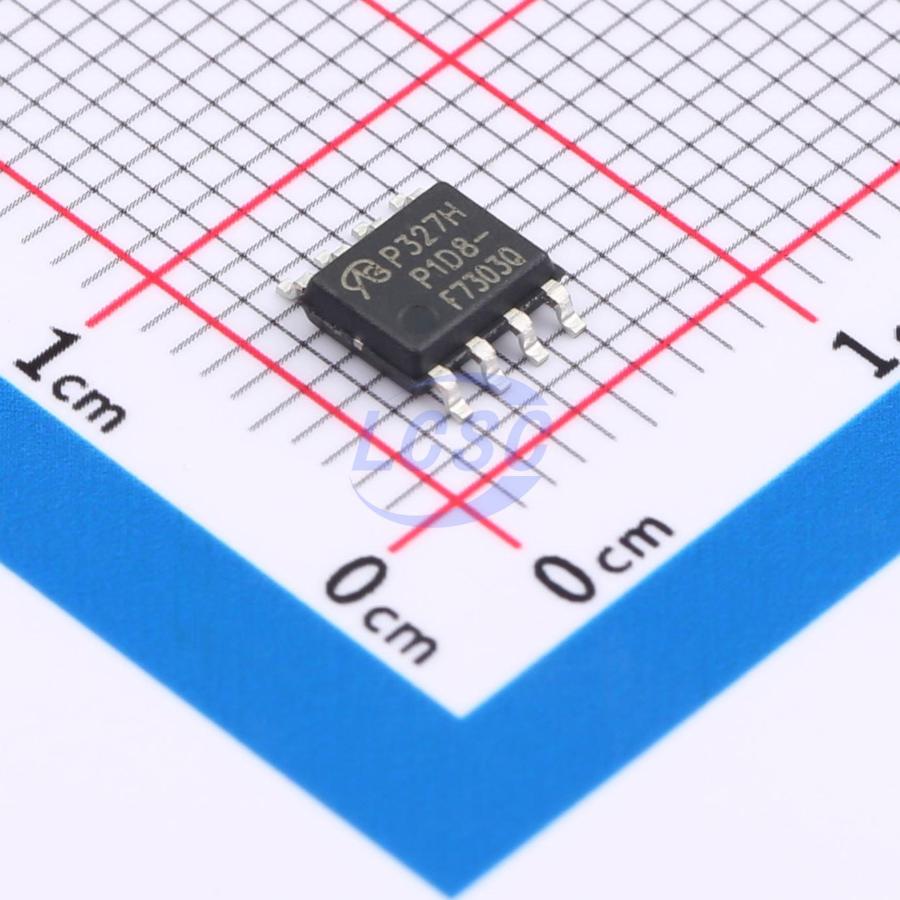

AUIRF7303QTRPBF-VB
N-Channel Array 30V 6.2A Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET N-CH ARR 30V 6.2A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AUIRF7303QTRPBF-VB
- Store part #
- C7568866
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568866
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹58.70 | ₹293.50 |
| 50+ | ₹49.04 | ₹2,452.00 |
| 150+ | ₹44.92 | ₹6,738.00 |
| 500+ | ₹39.74 | ₹19,870.00 |
| 2,500+ | ₹28.99 | ₹72,475.00 |
| 4,000+ | ₹27.61 | ₹1,10,440.00 |
5 × ₹58.70
₹293.50
excl. GST
₹346.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AUIRF7303QTRPBF-VB
₹293.50 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 117pF
- Current - Continuous Drain(Id)
- 6.2A
- Ciss-Input Capacitance
- 586pF
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@10V;26mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
Applications
- Set-top box
- Low-current DC/DC
Key features
- Halogen-free as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% single-pulse avalanche energy (UIS) tested
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CEM9956A-VB#C878884VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹52.31 · 20 in stock | View |
 | TPC8209-VB#C693235VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹47.19 · 10 in stock | View |
 | CEM4936-VB#C709931VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹45.67 · 15 in stock | View |
 | FDS6961A-NL-VB#C7494565VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹46.21 · 15 in stock | View |
 | HAT2016R-VB#C725055VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 100 | ₹53.12 · 100 in stock | View |
