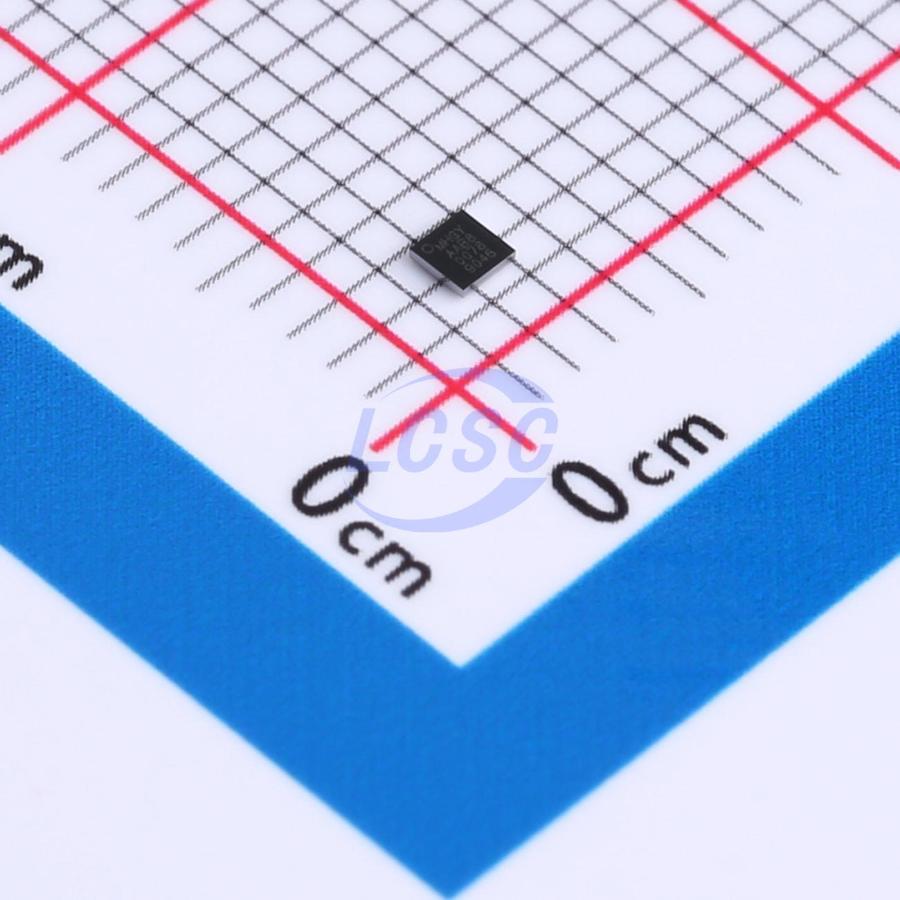

AW86862CSR
I2C 2.8V~5.5V WLCSP-12B(1.4x1.4) Analog Front End (AFE) RoHS
AW86862 2-channel Force Touch AFE
- Manufacturer
- AWINIC(Shanghai Awinic Tech)
- Manufacturer part #
- AW86862CSR
- Store part #
- C5241004
- Package / case
- WLCSP-12B(1.4x1.4)
- Category
- Analog Front End (AFE)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,476 in stock
#C5241004
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.60 | ₹64.60 |
| 10+ | ₹57.50 | ₹575.00 |
| 30+ | ₹54.06 | ₹1,621.80 |
| 100+ | ₹50.39 | ₹5,039.00 |
| 500+ | ₹48.45 | ₹24,225.00 |
| 1,000+ | ₹47.38 | ₹47,380.00 |
| 2,000+ | ₹46.73 | ₹93,460.00 |
| 4,500+ | ₹46.31 | ₹2,08,395.00 |
1 × ₹64.60
₹64.60
excl. GST
₹76.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
AW86862CSR
₹64.60 for 1 + GST
Specifications
- Clock Frequency
- 6MHz
- number of channels
- 2
- Interface
- I2C
- Voltage Reference Value
- 2.8V
- Resolution(Bits)
- 14;150kHz
- Quiescent Current (Iq)
- 5uA
- Voltage - Supply
- 2.8V~5.5V
- Function
- Programmable gain;Digital calibration;Multiplexers;Power-on reset;Soft reset;Built-in temperature sensor
- Operating Temperature
- -40℃~+85℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
AW86862 is a chip of force touch AFE, which has the functions of pressure sensing signal acquisition, amplification and processing. It integrated 1 I2C module, 1 system control module, 1 power management module and 1 AFE module (Include 2 analog input differential channel and MUX, level 2 PGA, 11-bit offset calibration DAC, 14bit ADC and pressing algorithm). AW86862 can enter low power consumption mode automatically without the master participation and trigger AFE work through SWDT wake-up to sample and process the signal. In low power consumption mode, the operating frequency of the chip is 10Hz and the power consumption is 3~5uA. Interrupt signals such as sampling completion, threshold comparison and press event trigger can be configured to output through interrupt pin. The AW86862 is available in a WLCSP 1.41mmX1.41mmX0.34mm-16B and FCQFN 1.6mmX1.6mmX0.55mm-12L package.
Applications
- TWS
- IOT
- Mobile phones
- Smart Home
Key features
- 2 analog input differential channel
- Selectable Gains of 1,8,16, 32, 64, 128, 256,512,1024
- 150 KSPS 14-bit SAR ADC
- 11-bit offset calibration DAC
- Support 400KHz/1MHz I2C
- 1 smart watch dog timer(SWDT)
- Support Temperature Sense
- 1 INTN pin
- Power-on reset, Low voltage detection
- Low voltage reset
- Low power consumption mode
- Built-in pressing algorithm
- WLCSP 1.41mmX1.41mmX0.34mm-16B package
- FCQFN 1.6mmX1.6mmX0.55mm-12L package
