DIODES

AZ2185D-ADJTRG1

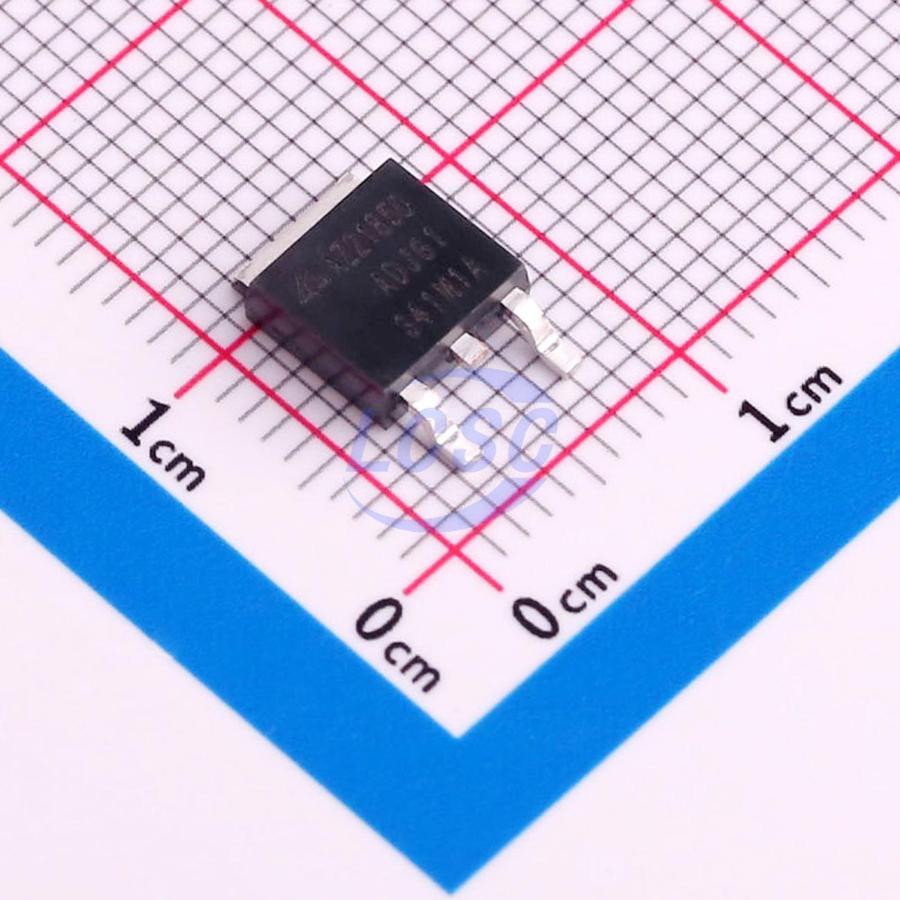

Positive Adjustable TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252ROHS3 CompliantActive

3A Low Dropout Linear Regulator

Manufacturer: DIODES
Manufacturer part #: AZ2185D-ADJTRG1
Store part #: C2987005
Package / case: TO-252
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

430 in stock

#C2987005

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹46.54	₹232.70
50+	₹36.67	₹1,833.50
150+	₹32.45	₹4,867.50
500+	₹27.17	₹13,585.00
2,500+	₹23.66	₹59,150.00
5,000+	₹22.24	₹1,11,200.00

Quantity (min 5, multiples of 5)

5 × ₹46.54

₹232.70

excl. GST

₹274.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

AZ2185D-ADJTRG1

₹232.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 6uA
Output Configuration: Positive
Output Current: 3A
Operating Voltage: 12V
Features: Thermal shutdown;Over Current Protection
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.311 g

Overview

The AZ2185 series is low dropout positive voltage regulators with a maximum dropout of 1.5V at 3A of load current. The device features low quiescent current, low adjustable current and improved load transient performance. This device built in band-gap reference circuit, on-chip thermal shutdown and current limit function. The AZ2185 is available in adjustable version. The adjustable version can set the output voltage with two external resistors. The AZ2185 series is available in standard packages of TO252 (Standard).

Applications

High Efficiency Linear Regulators
Battery Charger
Digital Video/Camcorder
Post Regulation for Switching Supplies
Microprocessor Supply
Mother Board Power Supplies
DVD-video Player
Telecom Equipment Set Top Boxes and Web Boxes Modules' Supply

Key features

Low Dropout Voltage: Typical 1.3V at 3A
Current Limiting and Thermal Protection
Output Current: 3A
Current Limit: 4.5A
Operating Junction Temperature: -40 to +125°C
Line Regulation: 0.015%/V (Typ)
Load Regulation: 0.1%/A (Typ)
Adjust Pin Current: 6μA (Typ)
Minimum Load Current: 0.3mA (Typ)
Compatible with Low ESR Ceramic Capacitor
Totally Lead-Free & Fully RoHS Compliant Halogen and Antimony Free. “Green” Device
