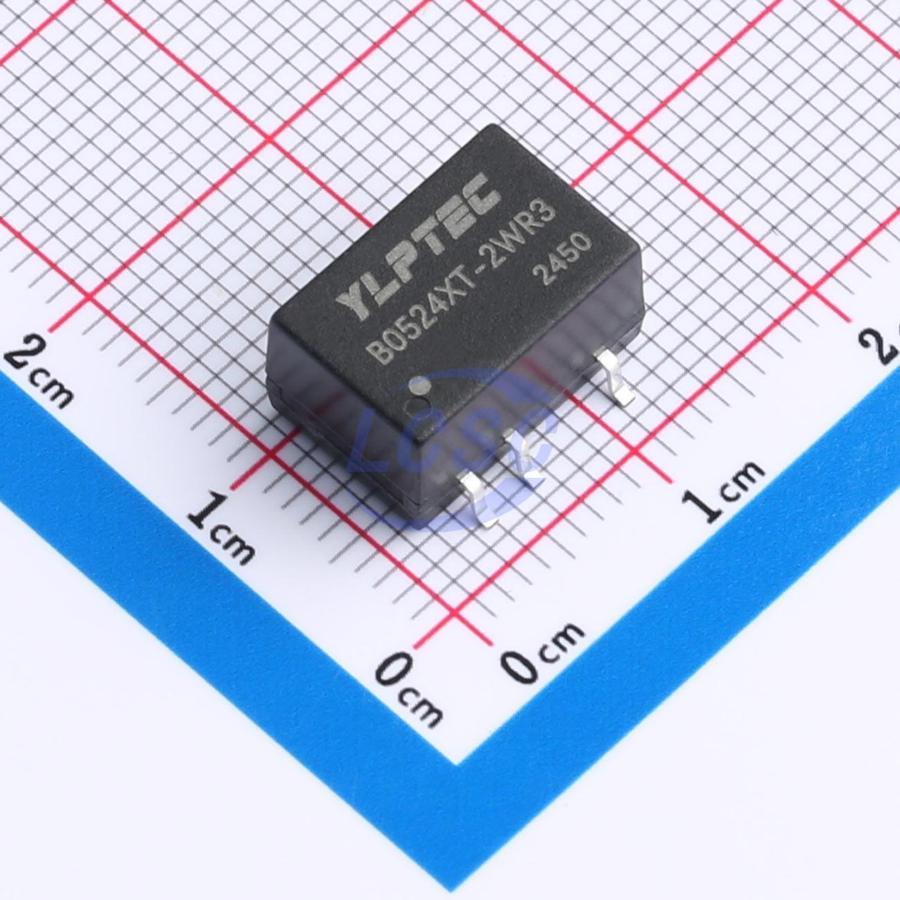

B0524XT-2WR3
Isolated Module DC DC Converter Boost 1 Output 24V 83mA 4.5V~5.5V Input
2W isolated non-regulated dual-output DC/DC power module with fixed voltage input
- Manufacturer
- YLPTEC
- Manufacturer part #
- B0524XT-2WR3
- Store part #
- C19724476
- Package / case
- SMD-5P,12.7x8.3mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C19724476
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹450.15 | ₹450.15 |
| 10+ | ₹388.18 | ₹3,881.80 |
| 39+ | ₹351.43 | ₹13,705.77 |
| 117+ | ₹314.24 | ₹36,766.08 |
| 507+ | ₹297.01 | ₹1,50,584.07 |
| 780+ | ₹289.25 | ₹2,25,615.00 |
1 × ₹450.15
₹450.15
excl. GST
₹531.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 39 per tube
B0524XT-2WR3
₹450.15 for 1 + GST
Specifications
- Output Voltage
- 24V
- Ripple Noise
- 80mVp-p
- Type
- Plastic encapsulated type
- Operating Temperature
- -50℃~+115℃
- Quiescent Supply Current
- 5mA
- Voltage - Supply
- 4.5V~5.5V
- Capacitive Load(Max)
- 2400uF
- Number of Outputs
- 1
- Iout
- 83mA
- Height
- 7.25mm
- Frequency - Switching
- 260kHz
- Isolation Voltage(Vrms)
- 1.5kV
- Features
- Short Circuit Protection;Automatic fault recovery
- Conversion Efficiency
- 86%
- Output Power
- 2W
- Length
- 12.7mm
- Width
- 11.2mm
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 39 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.673 g
Overview
Suitable for pure digital circuits, general low-frequency analog circuits, relay driver circuits, and similar applications. Specifically designed for on-board power systems that require generating an isolated voltage from the input supply. This product is intended for applications where: the input supply voltage is relatively stable (voltage variation range ±10%Vin); isolation is required between input and output (isolation voltage ≤3000V); output voltage regulation and output ripple/noise requirements are not stringent.
Applications
- Pure digital circuit applications
- General low-frequency analog circuit applications
- Relay driver circuit applications
Key features
- Continuous short-circuit protection
- Operating temperature range -50°C to +115°C
- Compact SMD package, industry-standard pinout
- Isolation voltage 1500VDC
- Maximum efficiency up to 86%
- No-load input current as low as 5mA
- ESD withstands 8KV contact discharge
