MSKSEMIDatasheet (PDF)

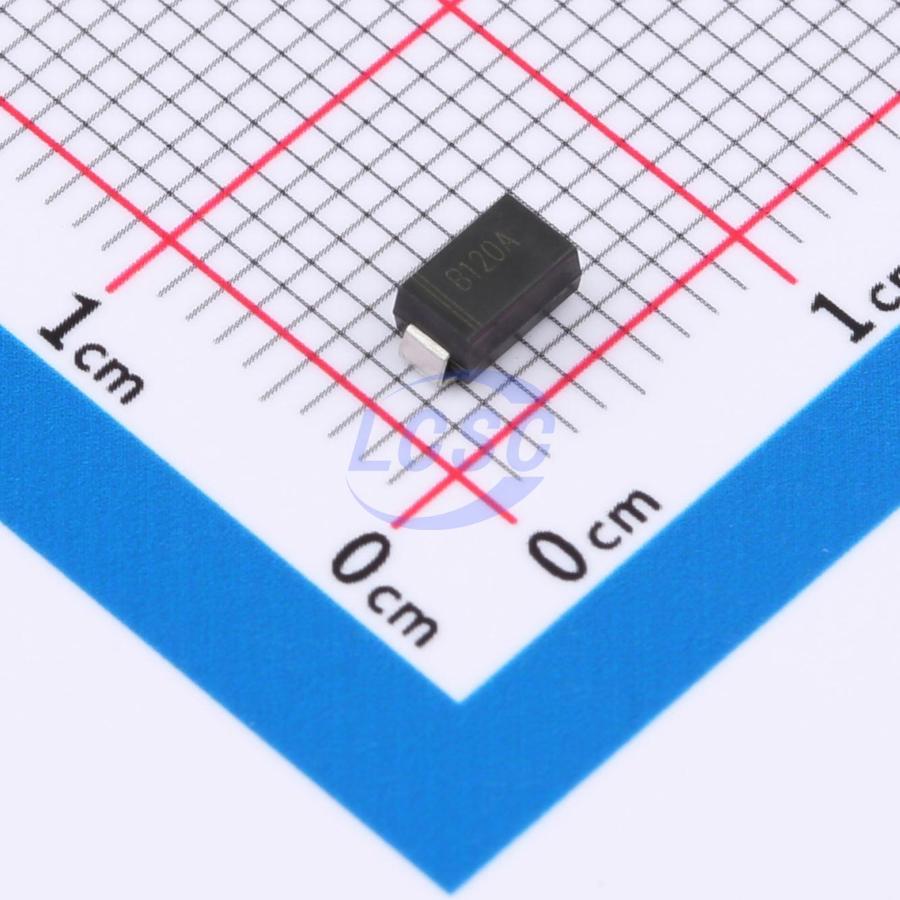

B120-13-F(MS)
Diode 20V Surface Mount SMA
SMARoHSActive
DIODE SCHOTTKY 20V SMA
- Manufacturer
- MSKSEMI
- Manufacturer part #
- B120-13-F(MS)
- Store part #
- C22399576
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,440 in stock
#C22399576
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.09 | ₹101.80 |
| 200+ | ₹4.06 | ₹812.00 |
| 600+ | ₹3.55 | ₹2,130.00 |
| 2,000+ | ₹3.16 | ₹6,320.00 |
| 10,000+ | ₹2.84 | ₹28,400.00 |
| 20,000+ | ₹2.70 | ₹54,000.00 |
20 × ₹5.09
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
B120-13-F(MS)
₹101.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - Forward(Vf@If)
- 500mV@10A
- Reverse Leakage Current (Ir)
- 500uA@20V
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.095 g
Overview
Key features
- Metal-semiconductor junction with guard ring
- Epitaxial structure
- Low forward voltage drop
- High current capability
- Plastic material meets UL 94V-0 certification
- Suitable for low voltage, high frequency inverters, freewheeling, and polarity protection applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B130-13-F(MS)#C22399577MSKSEMI · SMA | MSKSEMI | SMA | 2,160 | ₹5.57 · 2,160 in stock | View |
 | B220A(MS)#C22399259MSKSEMI · SMA | MSKSEMI | SMA | 80 | ₹7.49 · 80 in stock | View |
 | B230A(MS)#C22399260MSKSEMI · SMA | MSKSEMI | SMA | 20 | ₹7.71 · 20 in stock | View |
 | B320A(MS)#C22399273MSKSEMI · SMA | MSKSEMI | SMA | On request | ₹8.28 · 0 in stock | View |
 | B330A(MS)#C22399274MSKSEMI · SMA | MSKSEMI | SMA | 220 | ₹7.22 · 220 in stock | View |
