YLPTECDatasheet (PDF)

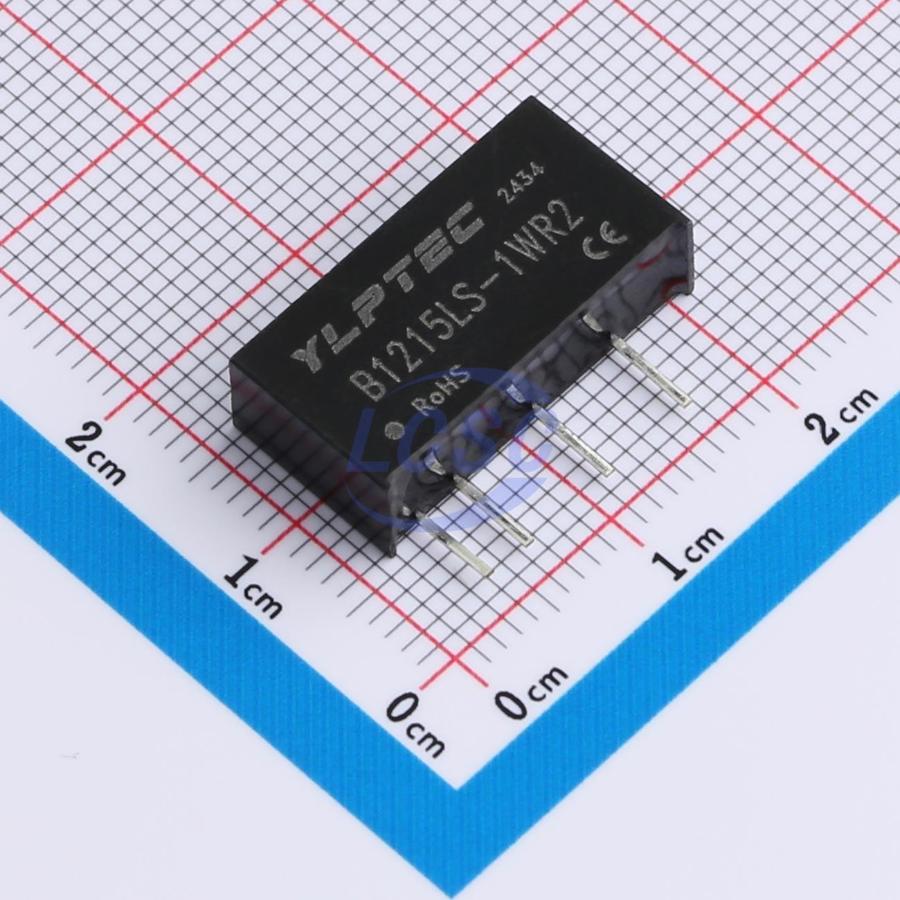

B1215LS-1WR2
Isolated Module DC DC Converter Boost 1 Output 15V 67mA 10.8V~13.2V Input
SIP,19.5x6mmRoHSActive
1W isolated non-regulated single-output DC/DC power module with constant voltage input
- Manufacturer
- YLPTEC
- Manufacturer part #
- B1215LS-1WR2
- Store part #
- C22751263
- Package / case
- SIP,19.5x6mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C22751263
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹208.36 | ₹208.36 |
| 10+ | ₹176.25 | ₹1,762.50 |
| 25+ | ₹156.27 | ₹3,906.75 |
| 100+ | ₹135.65 | ₹13,565.00 |
| 500+ | ₹126.51 | ₹63,255.00 |
| 1,000+ | ₹122.47 | ₹1,22,470.00 |
1 × ₹208.36
₹208.36
excl. GST
₹245.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
B1215LS-1WR2
₹208.36 for 1 + GST
Specifications
- Output Voltage
- 15V
- Ripple Noise
- 50mVp-p
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 15mA
- Voltage - Supply
- 10.8V~13.2V
- Capacitive Load(Max)
- 220uF
- Number of Outputs
- 1
- Iout
- 67mA
- Height
- 10mm
- Frequency - Switching
- 100kHz
- Isolation Voltage(Vrms)
- 1.5kV
- Output Power
- 1W
- Features
- Short Circuit Protection;Over-temperature protection
- Conversion Efficiency
- 80%
- Length
- 19.5mm
- Width
- 6mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.5 g
Overview
Applications
- Stable input power supply (voltage variation range ±10%Vin)
- Isolation required between input and output (isolation voltage ≤1500VDC)
- Low output voltage regulation requirement
- Pure digital circuit applications
- General low-frequency analog circuit applications
- Relay driver circuits
- Data switching circuit applications
Key features
- Regulated voltage input, isolated unregulated output
- Isolation voltage: 1500VDC
- Efficiency: up to 80%
- Operating temperature: -40°C~+85°C
- MTBF 23,500,000 hours (3500000Hrs)
- Output short circuit protection
- Compact SIP package
- International standard pinout
- Ripple/noise (20MHz bandwidth) <100mVp-p
- Over-temperature protection and continuous output short circuit protection, RoHS
