DIODESDatasheet (PDF)

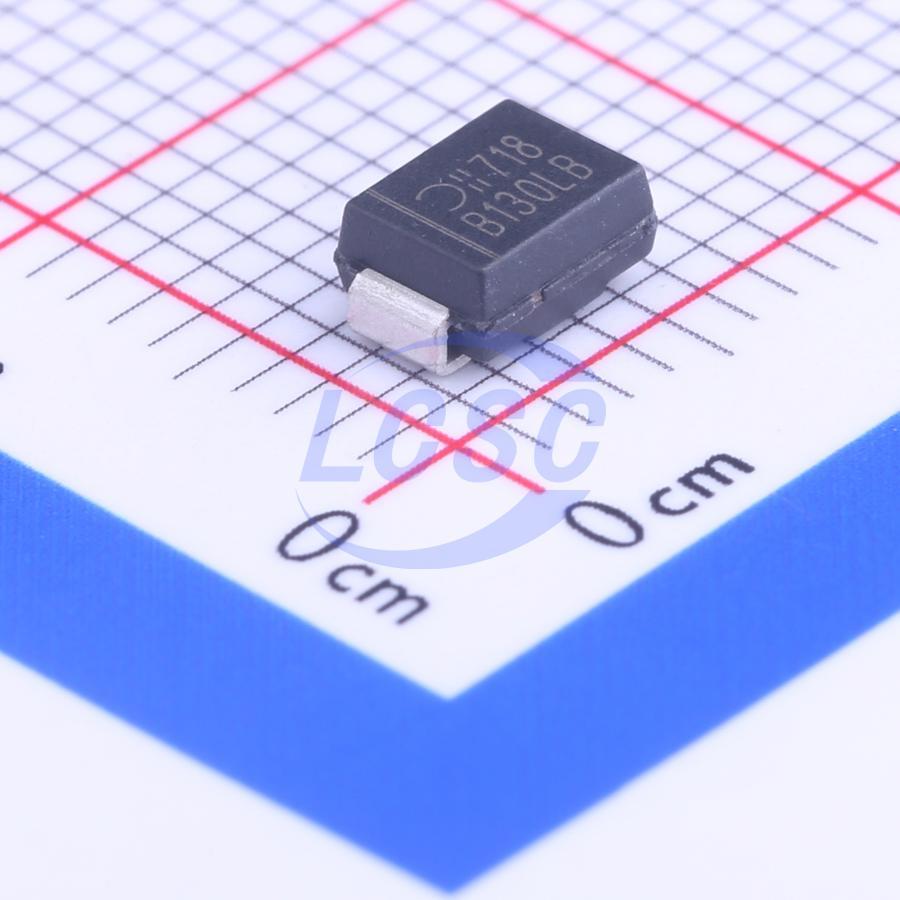

B130LB-13-F
1 Independent 30V 445mV@2A 1A SMB(DO-214AA) Single Diodes RoHS
SMB(DO-214AA)ROHS3 CompliantActive
Voltage: 30V Current: 2A
- Manufacturer
- DIODES
- Manufacturer part #
- B130LB-13-F
- Store part #
- C110478
- Package / case
- SMB(DO-214AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
275 in stock
#C110478
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.71 | ₹128.55 |
| 50+ | ₹20.45 | ₹1,022.50 |
| 150+ | ₹18.20 | ₹2,730.00 |
| 500+ | ₹15.39 | ₹7,695.00 |
| 3,000+ | ₹14.14 | ₹42,420.00 |
| 6,000+ | ₹13.39 | ₹80,340.00 |
5 × ₹25.71
₹128.55
excl. GST
₹151.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
B130LB-13-F
₹128.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 445mV@2A
- Reverse Leakage Current (Ir)
- 1mA@30V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- Surge Overload Rating to 40A Peak
- For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application
- High Temperature Soldering: 260℃ / 10 Second at Terminal
- Lead Free Finish, RoHS Compliant
- Green Molding Compound (No Halogen and Antimony)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRS130LT3G#C51771onsemi · SMB(DO-214AA) | onsemi | SMB(DO-214AA) | 5,250 | ₹18.14 · 5,250 in stock | View |
 | MBRS230LT3G#C236135onsemi · SMB(DO-214AA) | onsemi | SMB(DO-214AA) | 8,015 | ₹17.62 · 8,015 in stock | View |
 | MBRS230LT3G-FS#C42387333FUXINSEMI · SMB | FUXINSEMI | SMB | 2,945 | ₹16.21 · 2,945 in stock | View |
 | SSL545B#C382803Jingdao Microelectronics · SMB | Jingdao Microelectronics | SMB | 2,125 | ₹13.94 · 2,125 in stock | View |
 | SS54LB#C7435449XCH · SMB | XCH | SMB | 640 | ₹11.79 · 640 in stock | View |
