DIODESDatasheet (PDF)

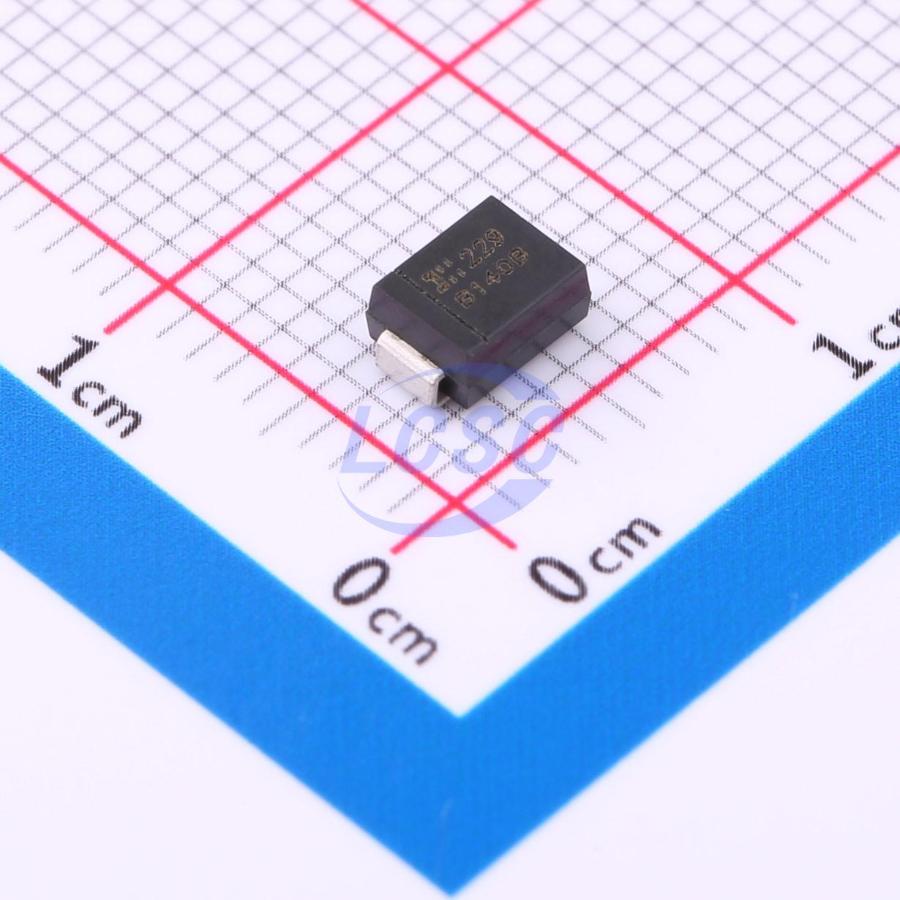

B140BQ-13-F
Diode 40V 1A Surface Mount SMB(DO-214AA)
SMB(DO-214AA)ROHS CompliantActive
DIODE SCHOTTKY 40V SMB(DO-214AA)
- Manufacturer
- DIODES
- Manufacturer part #
- B140BQ-13-F
- Store part #
- C134427
- Package / case
- SMB(DO-214AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C134427
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.02 | ₹100.10 |
| 50+ | ₹19.74 | ₹987.00 |
| 150+ | ₹19.54 | ₹2,931.00 |
| 500+ | ₹19.36 | ₹9,680.00 |
5 × ₹20.02
₹100.10
excl. GST
₹118.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
B140BQ-13-F
₹100.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 500mV@1A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications. It is ideally suited for use as: Polarity Protection Diode, Re - Circulating Diode, Switching Diode, Blocking Diode, Freewheel Diode
Applications
- Polarity Protection Diode, Re - Circulating Diode, Switching Diode, Blocking Diode, Freewheel Diode
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- Surge Overload Rating to 30A Peak.
- For Use in Low - Voltage, High - Frequency Inverters
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC - Q101 Standards for High Reliability
- PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B140B-13-F#C134426DIODES · SMB(DO-214AA) | DIODES | SMB(DO-214AA) | 2,070 | ₹16.22 · 2,070 in stock | View |
 | B240-13-F#C110483DIODES · SMB | DIODES | SMB | 17,145 | ₹10.69 · 17,145 in stock | View |
 | SS24B#C880747Slkor · SMB(DO-214AA) | Slkor | SMB(DO-214AA) | 3,040 | ₹4.72 · 3,040 in stock | View |
 | SS34B#C880746Slkor · SMB(DO-214AA) | Slkor | SMB(DO-214AA) | 1,720 | ₹5.46 · 1,720 in stock | View |
 | B340BQ-13-F#C460779DIODES · SMB | DIODES | SMB | 2,545 | ₹26.94 · 2,545 in stock | View |
