DIODESDatasheet (PDF)

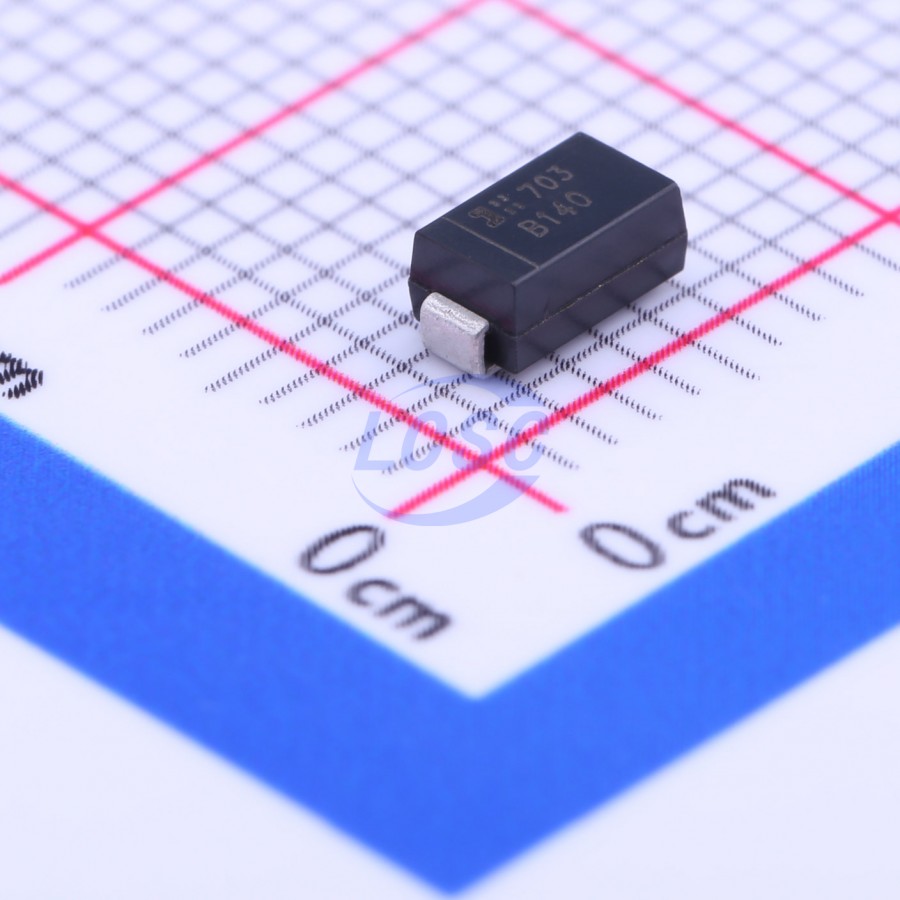

B140Q-13-F
1 Independent 40V 500mV@1A 1A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Voltage： 40V Current： 1A
- Manufacturer
- DIODES
- Manufacturer part #
- B140Q-13-F
- Store part #
- C134430
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
925 in stock
#C134430
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.65 | ₹93.25 |
| 50+ | ₹15.52 | ₹776.00 |
| 150+ | ₹13.94 | ₹2,091.00 |
| 500+ | ₹12.75 | ₹6,375.00 |
| 2,500+ | ₹11.81 | ₹29,525.00 |
| 5,000+ | ₹11.35 | ₹56,750.00 |
5 × ₹18.65
₹93.25
excl. GST
₹110.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
B140Q-13-F
₹93.25 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 500mV@1A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications. It is ideally suited for use as: Polarity Protection Diode, Re - Circulating Diode, Switching Diode, Blocking Diode, Freewheel Diode
Applications
- Polarity Protection Diode, Re - Circulating Diode, Switching Diode, Blocking Diode, Freewheel Diode
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- Surge Overload Rating to 30A Peak.
- For Use in Low - Voltage, High - Frequency Inverters
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC - Q101 Standards for High Reliability
- PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B140-13-F#C15759DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 34,870 | ₹11.60 · 34,870 in stock | View |
 | SS14A#C211770YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | 36,120 | ₹4.41 · 36,120 in stock | View |
 | ACDBA140-HF#C5120165Comchip · DO-214AC | Comchip | DO-214AC | 4,085 | ₹13.06 · 4,085 in stock | View |
 | SS14-LTP#C78574MCC · SMA(DO-214AC) | MCC | SMA(DO-214AC) | 5,300 | ₹6.67 · 5,300 in stock | View |
 | TSS16L#C5161860ZHIDE · SMA | ZHIDE | SMA | 1,050 | ₹8.88 · 1,050 in stock | View |
