DIODESDatasheet (PDF)

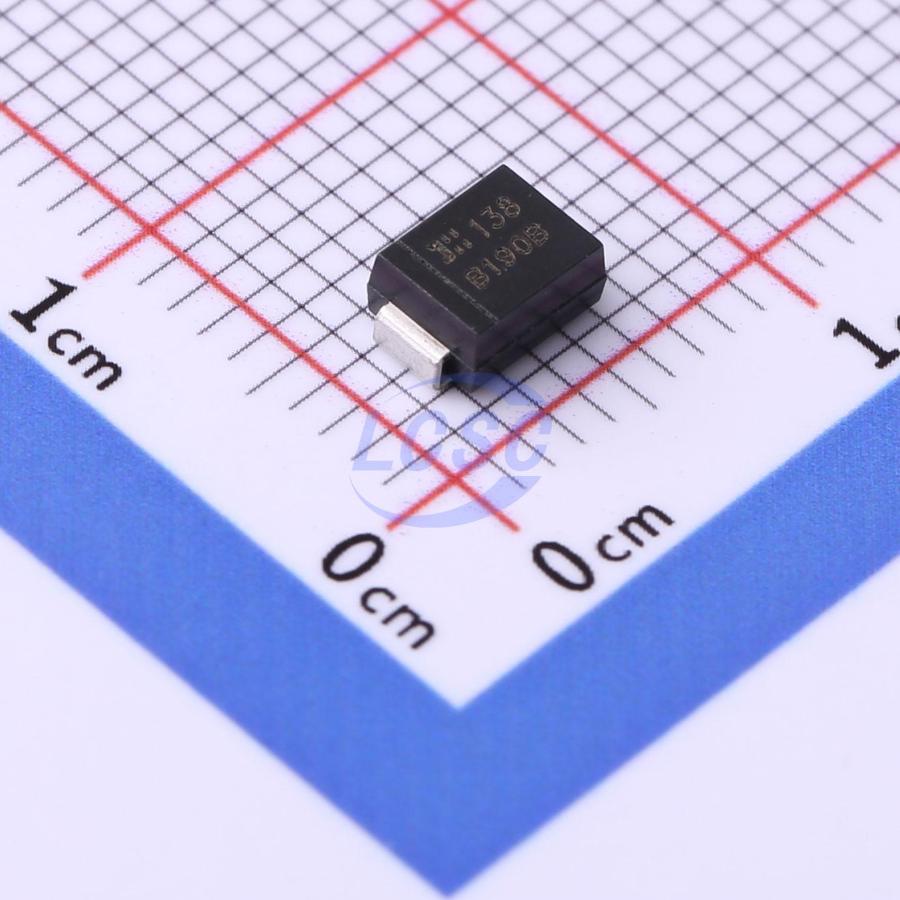

B190BQ-13-F
Diode Independent 90V 1A Surface Mount DO-214AA
DO-214AAROHS3 CompliantActive
DIODE SCHOTTKY 90V DO-214AA
- Manufacturer
- DIODES
- Manufacturer part #
- B190BQ-13-F
- Store part #
- C2974180
- Package / case
- DO-214AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
535 in stock
#C2974180
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.55 | ₹102.75 |
| 50+ | ₹20.10 | ₹1,005.00 |
| 150+ | ₹19.81 | ₹2,971.50 |
| 500+ | ₹19.50 | ₹9,750.00 |
5 × ₹20.55
₹102.75
excl. GST
₹121.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
B190BQ-13-F
₹102.75 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 90V
- Voltage - Forward(Vf@If)
- 790mV@1A
- Reverse Leakage Current (Ir)
- 500uA@90V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
Applications
- Polarity Protection Diode
- Re - Circulating Diode
- Blocking Diode
- DC - DC
- AC - DC
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- For Use in Low Voltage Drop, High Frequency Inverters, Free Wheeling, and Polarity Protection Application
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- The B170BQ - B1100BQ are suitable for automotive applications requiring specific change control; these parts are AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
