DIODESDatasheet (PDF)

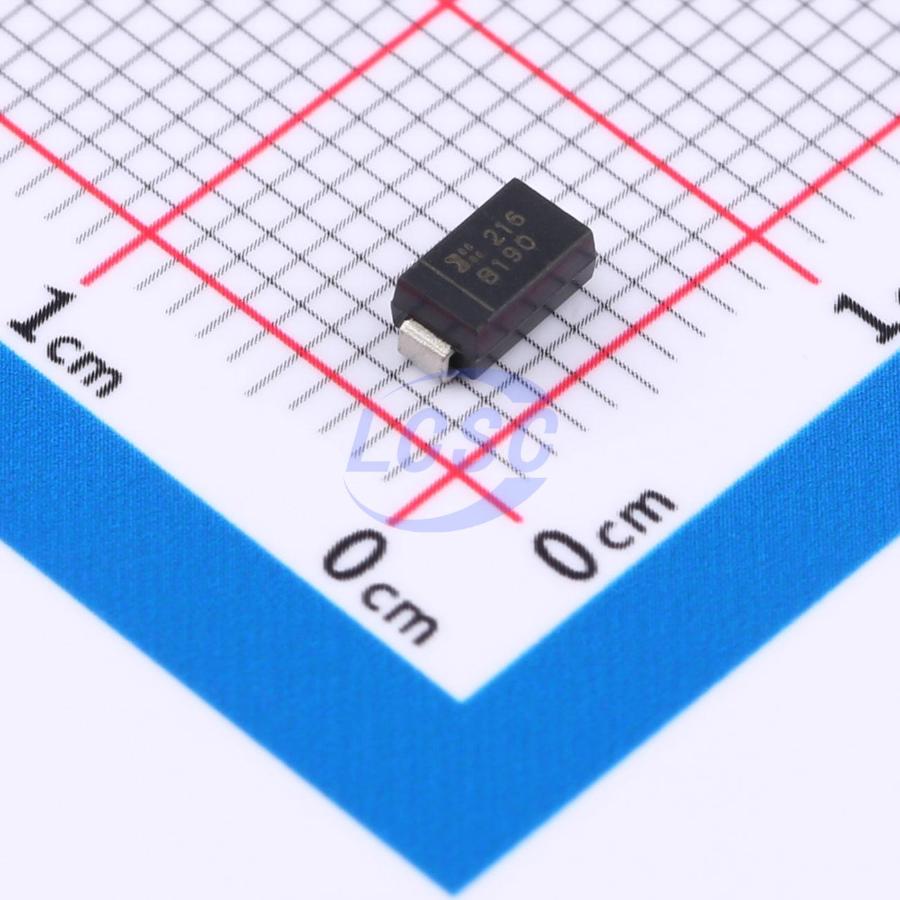

B190Q-13-F
1 Independent 90V 790mV@1A 1A SMA Single Diodes RoHS
SMAROHS3 CompliantActive
Voltage： 90V Current： 1A
- Manufacturer
- DIODES
- Manufacturer part #
- B190Q-13-F
- Store part #
- C5244339
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C5244339
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.69 | ₹73.45 |
| 50+ | ₹14.37 | ₹718.50 |
| 150+ | ₹14.16 | ₹2,124.00 |
| 500+ | ₹13.94 | ₹6,970.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 90V
- Voltage - Forward(Vf@If)
- 790mV@1A
- Reverse Leakage Current (Ir)
- 500uA@90V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
Applications
- Polarity Protection Diode
- Re-Circulating Diode
- Blocking Diode
- DC - DC
- AC - DC
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- For Use in Low Voltage Drop, High Frequency Inverters, Free Wheeling, and Polarity Protection Application
- Lead-Free Finish & RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- The B170Q - B1100Q are suitable for automotive applications requiring specific change control; these parts are AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B1100-13-F#C110106DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 56,480 | ₹13.97 · 56,480 in stock | View |
 | B190-13-F#C134438DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 255 | ₹14.14 · 255 in stock | View |
 | SS110A#C7470655JUXING · SMA(DO-214AC) | JUXING | SMA(DO-214AC) | 3,000 | ₹2.35 · 3,000 in stock | View |
 | SS110#C2766060WPMtek · SMA(DO-214AC) | WPMtek | SMA(DO-214AC) | 5,010 | ₹5.23 · 5,010 in stock | View |
 | SS110#C54426042luJing · SMA | luJing | SMA | 1,250 | ₹2.10 · 1,250 in stock | View |
