DIODESDatasheet (PDF)

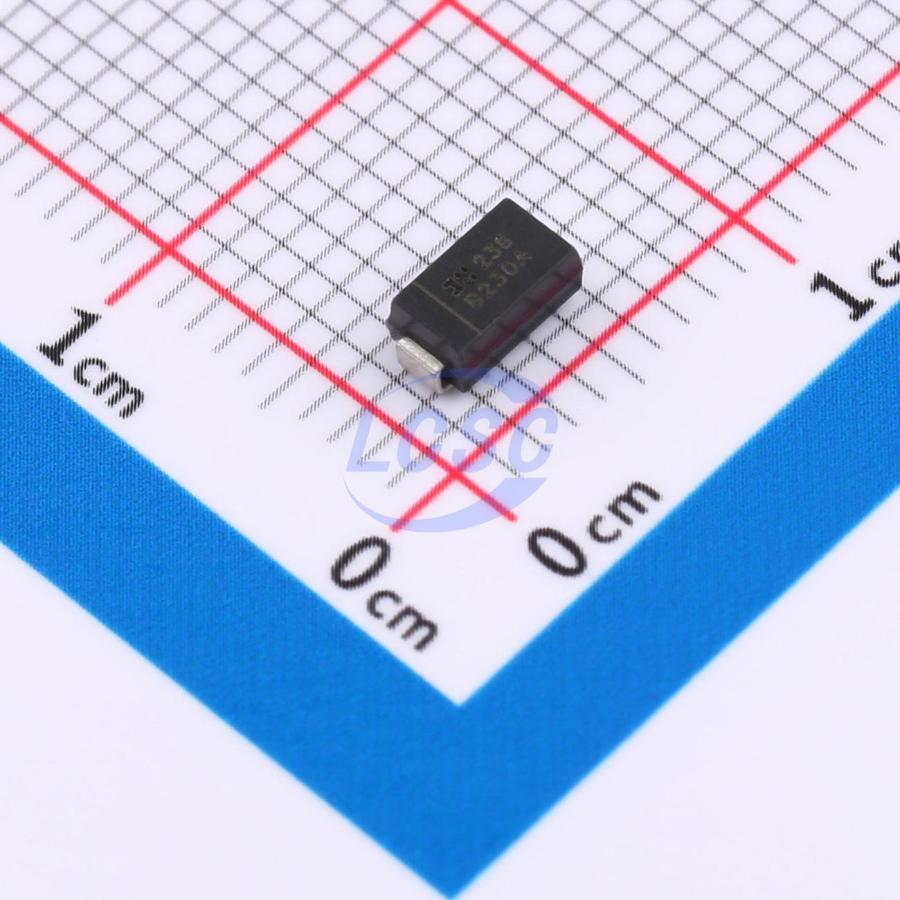

B230AQ-13-F
1 Independent 30V 500mV@2A 2A SMA Single Diodes RoHS
SMAROHS3 CompliantActive
DIODE SCHOTTKY 30V SMA
- Manufacturer
- DIODES
- Manufacturer part #
- B230AQ-13-F
- Store part #
- C5592270
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C5592270
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.12 | ₹145.60 |
| 50+ | ₹23.13 | ₹1,156.50 |
| 150+ | ₹20.55 | ₹3,082.50 |
| 500+ | ₹17.34 | ₹8,670.00 |
| 2,500+ | ₹15.92 | ₹39,800.00 |
| 5,000+ | ₹15.06 | ₹75,300.00 |
5 × ₹29.12
₹145.60
excl. GST
₹171.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
B230AQ-13-F
₹145.60 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 500mV@2A
- Reverse Leakage Current (Ir)
- 500uA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.096 g
Overview
This Schottky barrier rectifier is designed to meet the general requirements of commercial applications. It is well suited for use as a polarity protection diode, freewheeling diode, switching diode, blocking diode, and flywheel diode.
Applications
- Polarity protection
- Freewheeling
- Switching
- Blocking
- Flywheel
Key features
- Guard ring die construction for transient protection
- Ideal for automated assembly
- Low power consumption, high efficiency
- Surge overload rating up to 50A peak
- Suitable for low voltage, high frequency inverters
- Lead-free finish; RoHS compliant
- Halogen and antimony free, "green" device
- AEC-Q101 qualified for high reliability
- Production Part Approval Process (PPAP) capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B230A-13-F#C12889DIODES · SMA | DIODES | SMA | 44,370 | ₹13.87 · 44,370 in stock | View |
 | SR24W_R1_00101#C44519704PANJIT · SMA(W) | PANJIT | SMA(W) | 820 | ₹4.60 · 820 in stock | View |
 | B240A-13-F#C92506DIODES · SMA | DIODES | SMA | 1,47,500 | ₹11.51 · 1,47,500 in stock | View |
 | SS24#C266552BORN · SMA(DO-214AC) | BORN | SMA(DO-214AC) | 32,040 | ₹5.46 · 32,040 in stock | View |
 | SS24#C50229768DDF · SMA | DDF | SMA | 1,200 | ₹2.26 · 1,200 in stock | View |
