DIODESDatasheet (PDF)

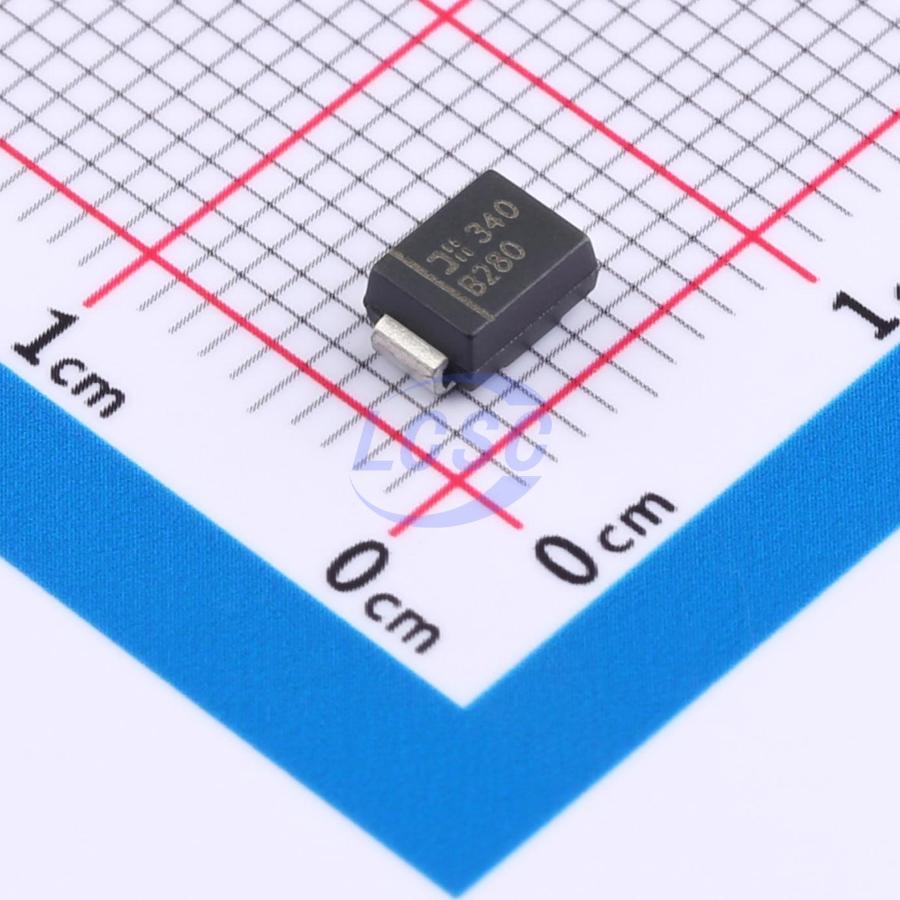

B280-13-F
1 Independent 80V 790mV@2A 2A SMB(DO-214AA) Single Diodes RoHS
SMB(DO-214AA)ROHS CompliantActive
Voltage: 80V Current: 2A
- Manufacturer
- DIODES
- Manufacturer part #
- B280-13-F
- Store part #
- C134445
- Package / case
- SMB(DO-214AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C134445
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.80 | ₹194.00 |
| 50+ | ₹31.10 | ₹1,555.00 |
| 150+ | ₹27.80 | ₹4,170.00 |
| 500+ | ₹23.68 | ₹11,840.00 |
| 3,000+ | ₹21.84 | ₹65,520.00 |
| 6,000+ | ₹20.74 | ₹1,24,440.00 |
5 × ₹38.80
₹194.00
excl. GST
₹228.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
B280-13-F
₹194.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 80V
- Voltage - Forward(Vf@If)
- 790mV@2A
- Reverse Leakage Current (Ir)
- 7mA@80V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- Schottky Barrier Chip
- Guard Ring Die Construction for Transient Protection
- Low Power Loss, High Efficiency
- Surge Overload Rating to 60A Peak
- For Use in Low-Voltage, High-Frequency Inverters, Free Wheeling, and Polarity Protection Application
- High-Temperature Soldering: +260℃ / 10 Second at Terminal
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS2H9-E3/52T#C5224085VISHAY · DO-214AA | VISHAY | DO-214AA | 6 | ₹52.07 · 6 in stock | View |
 | B2100Q-13-F#C2859325DIODES · SMB | DIODES | SMB | 46 | ₹72.18 · 46 in stock | View |
 | SK2B#C174022Suzhou Good-Ark Elec · SMB(DO-214AA) | Suzhou Good-Ark Elec | SMB(DO-214AA) | 225 | ₹13.32 · 225 in stock | View |
 | MBRS1100T3G(MS)#C22399567MSKSEMI · SMB | MSKSEMI | SMB | 1,680 | ₹9.63 · 1,680 in stock | View |
 | SL210B-TP#C725399MCC · SMB | MCC | SMB | 5 | ₹53.03 · 5 in stock | View |
