DIODESDatasheet (PDF)

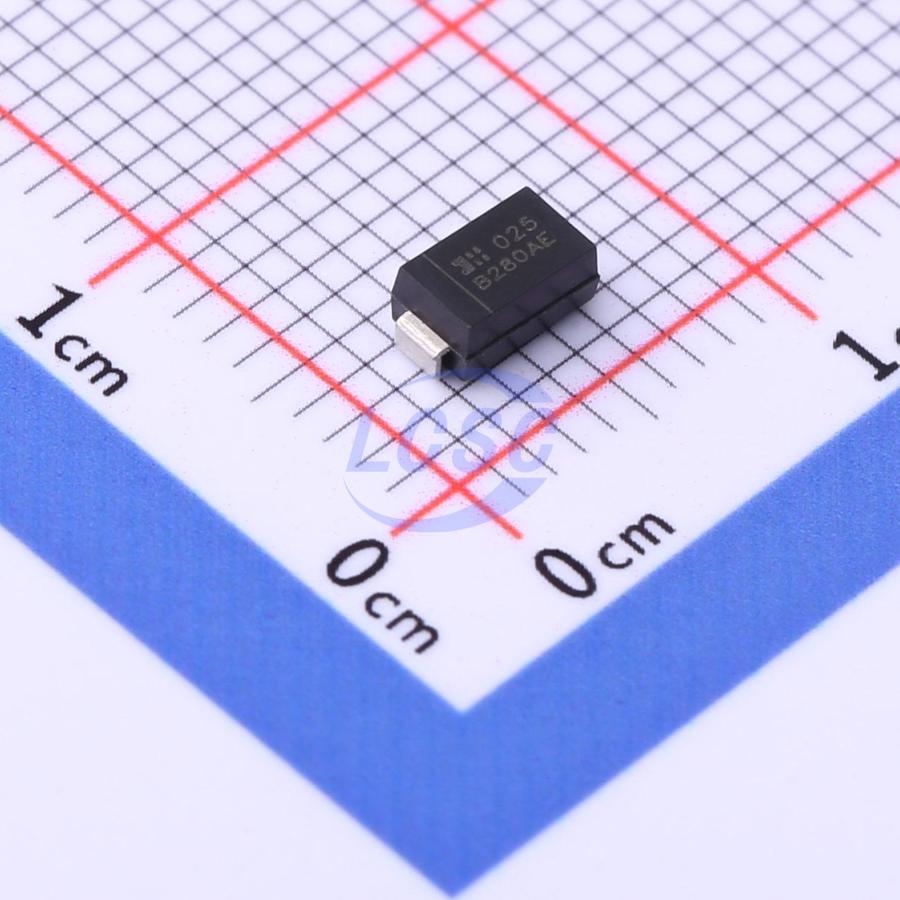

B280AE-13
80V 1 Independent 740mV@2A 2A SMA Single Diodes RoHS
SMAROHS3 CompliantActive
Voltage: 80V Current: 2A
- Manufacturer
- DIODES
- Manufacturer part #
- B280AE-13
- Store part #
- C780790
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C780790
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.58 | ₹217.90 |
| 50+ | ₹34.89 | ₹1,744.50 |
| 150+ | ₹31.16 | ₹4,674.00 |
| 500+ | ₹26.51 | ₹13,255.00 |
| 2,500+ | ₹24.44 | ₹61,100.00 |
| 5,000+ | ₹21.80 | ₹1,09,000.00 |
5 × ₹43.58
₹217.90
excl. GST
₹257.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
B280AE-13
₹217.90 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 80V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 740mV@2A
- Reverse Leakage Current (Ir)
- 7uA@80V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.119 g
Overview
Applications
- Polarity Protection Diode
- Re-Circulating Diode
- Blocking Diode
- DC-DC
- AC-DC
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- For Use in Low Voltage Drop, High Frequency Inverters, Free Wheeling, and Polarity Protection Application
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B2100AE-13#C526416DIODES · SMA | DIODES | SMA | 2,275 | ₹21.01 · 2,275 in stock | View |
| SL210A-TP#C3757651MCC · DO-214AC(SMA) | MCC | DO-214AC(SMA) | 4,430 | ₹9.67 · 4,430 in stock | View | |
 | B2100A-13-F#C150471DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 14,240 | ₹34.49 · 14,240 in stock | View |
 | UMW SS210A#C2988626UMW · SMA(DO-214AC) | UMW | SMA(DO-214AC) | 320 | ₹3.73 · 320 in stock | View |
 | SS210#C3014009FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 1,980 | ₹3.20 · 1,980 in stock | View |
