DIODESDatasheet (PDF)

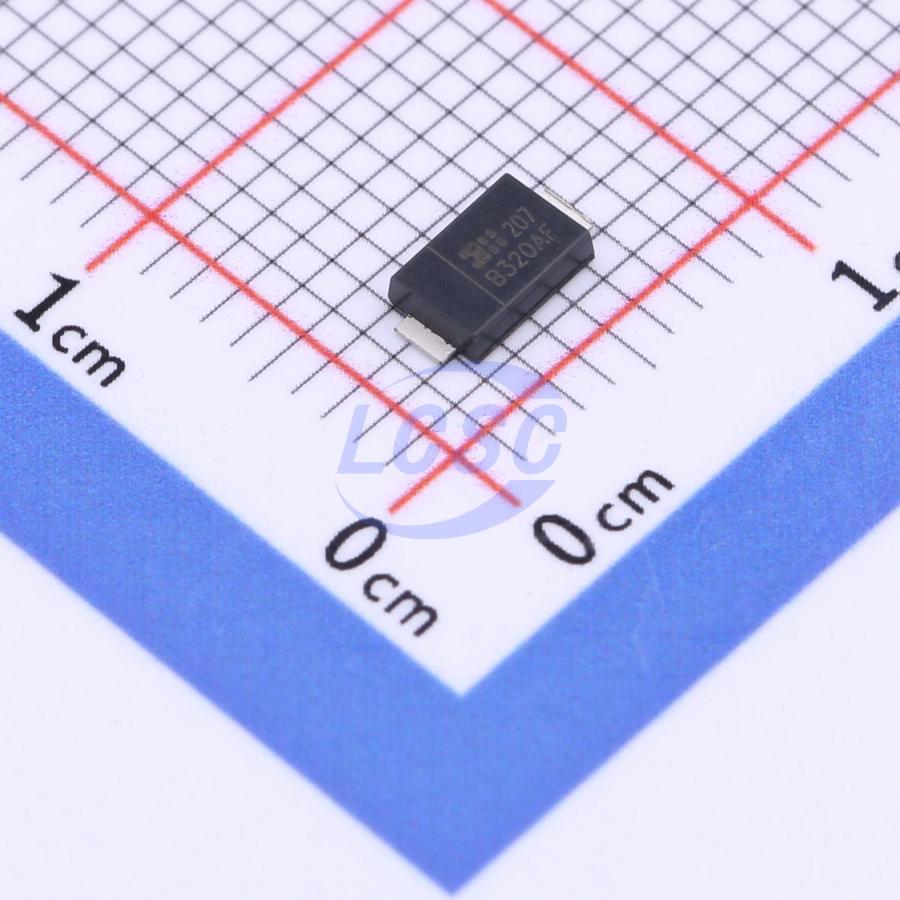

B320AF-13
Diode 20V 3A Surface Mount DO-214AD
DO-214ADROHS3 CompliantActive
DIODE SCHOTTKY 20V DO-214AD
- Manufacturer
- DIODES
- Manufacturer part #
- B320AF-13
- Store part #
- C5124970
- Package / case
- DO-214AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C5124970
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.94 | ₹104.70 |
| 50+ | ₹16.76 | ₹838.00 |
| 150+ | ₹14.67 | ₹2,200.50 |
| 500+ | ₹13.10 | ₹6,550.00 |
| 2,500+ | ₹11.84 | ₹29,600.00 |
| 5,000+ | ₹11.22 | ₹56,100.00 |
5 × ₹20.94
₹104.70
excl. GST
₹123.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
B320AF-13
₹104.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 500mV@3A
- Reverse Leakage Current (Ir)
- 200uA@20V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
The Schottky providing low VF and excellent reverse leakage stability at high temperatures, this device is ideal for use in general rectification applications such as: Boost Diodes Blocking Diodes Recirculating Diodes
Applications
- Boost Diodes
- Blocking Diodes
- Recirculating Diodes
Key features
- Reduced Low Forward Voltage Drop (VF); Better Efficiency and Cooler Operation
- Reduced High- temperature Reverse Leakage; Increased Reliability against Thermal Runaway Failure in High Temperature Operation
- Lead- Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B340AF-13#C172880DIODES · DO-214AD | DIODES | DO-214AD | 7,410 | ₹22.99 · 7,410 in stock | View |
 | B320AF-13#C3758641DIODES · DO-214AD | DIODES | DO-214AD | 45 | ₹15.29 · 45 in stock | View |
 | SBM36VAFC_R1_00001#C7071296PANJIT · SMAF-C | PANJIT | SMAF-C | 3,000 | ₹20.52 · 3,000 in stock | View |
 | SS34LF#C169414Jingdao Microelectronics · SMAF | Jingdao Microelectronics | SMAF | 2,930 | ₹7.40 · 2,930 in stock | View |
 | SL36#C2995515DIYI Elec Tech · SMAF | DIYI Elec Tech | SMAF | 780 | ₹9.02 · 780 in stock | View |
