VISHAYDatasheet (PDF)

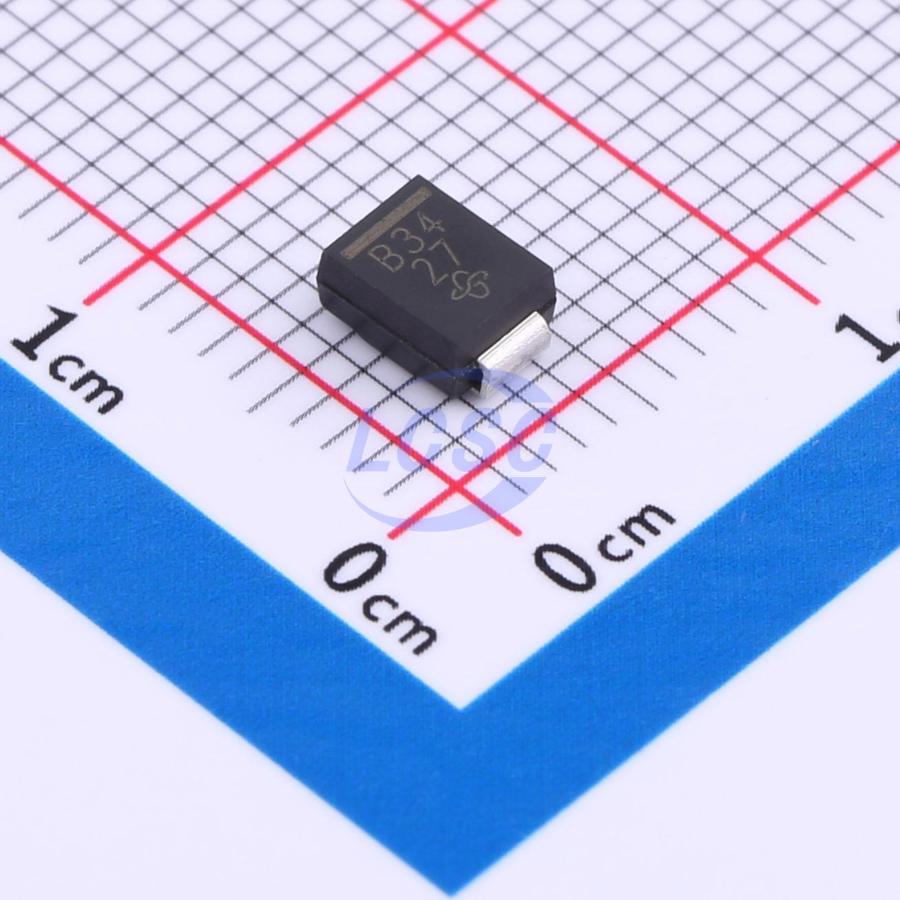

B340LB-E3/52T
Diode 1 Independent 40V 3A Surface Mount DO-214AA(SMB)
DO-214AA(SMB)ROHS3 CompliantActive
DIODE SCHOTTKY 40V DO-214AA(SMB)
- Manufacturer
- VISHAY
- Manufacturer part #
- B340LB-E3/52T
- Store part #
- C3759218
- Package / case
- DO-214AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C3759218
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.05 | ₹215.25 |
| 50+ | ₹34.17 | ₹1,708.50 |
| 150+ | ₹30.38 | ₹4,557.00 |
| 500+ | ₹25.63 | ₹12,815.00 |
| 2,500+ | ₹23.51 | ₹58,775.00 |
| 5,000+ | ₹22.25 | ₹1,11,250.00 |
5 × ₹43.05
₹215.25
excl. GST
₹253.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
B340LB-E3/52T
₹215.25 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 450mV@3A
- Reverse Leakage Current (Ir)
- 400uA@40V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
Applications
- Low voltage, high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection application
Key features
- Guardring for overvoltage protection
- Low profile package
- Ideal for automated placement
- Low power loss, high efficiency
- Very low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
