VISHAYDatasheet (PDF)

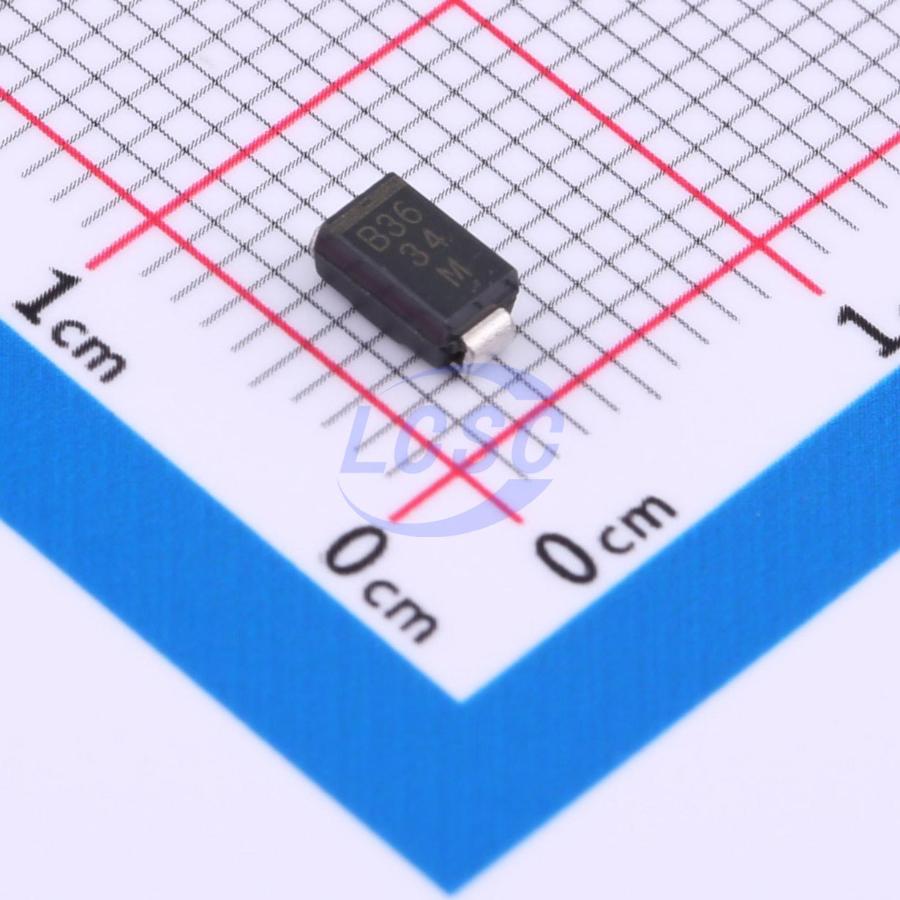

B360A-M3/61T
Diode 1 Independent 60V 3A Surface Mount DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
DIODE SCHOTTKY 60V DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- B360A-M3/61T
- Store part #
- C5950064
- Package / case
- DO-214AC(SMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5950064
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.92 | ₹119.60 |
| 50+ | ₹18.61 | ₹930.50 |
| 150+ | ₹16.34 | ₹2,451.00 |
| 500+ | ₹13.51 | ₹6,755.00 |
| 1,800+ | ₹12.25 | ₹22,050.00 |
| 5,400+ | ₹11.50 | ₹62,100.00 |
5 × ₹23.92
₹119.60
excl. GST
₹141.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
B360A-M3/61T
₹119.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 720mV@3A
- Reverse Leakage Current (Ir)
- 200uA@60V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.111 g
Overview
Applications
- For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Low profile package
- Ideal for automated placement
- Low forward voltage drop, low power losses
- High efficiency
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS36#C86927DIYI Elec Tech · SMA(DO-214AC) | DIYI Elec Tech | SMA(DO-214AC) | 3,940 | ₹5.65 · 3,940 in stock | View |
 | SS36A#C2915227WEIDA · SMA(DO-214AC) | WEIDA | SMA(DO-214AC) | 330 | ₹8.14 · 330 in stock | View |
 | B360A-E3/61T#C2983556VISHAY · DO-214AC | VISHAY | DO-214AC | 3,780 | ₹17.79 · 3,780 in stock | View |
 | B360AE-13#C412514DIODES · SMA | DIODES | SMA | 6,965 | ₹55.59 · 6,965 in stock | View |
 | SS310L#C22448064XUMAO · SMA | XUMAO | SMA | 2,790 | ₹10.07 · 2,790 in stock | View |
