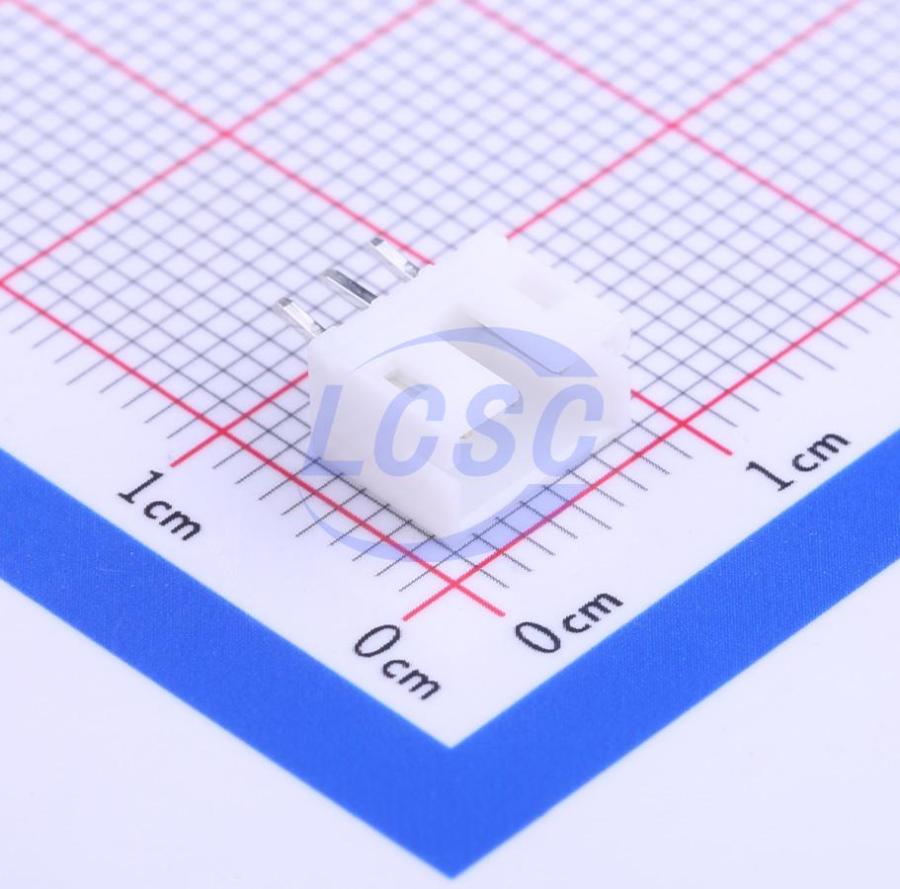

B3B-PH-K-S(LF)(SN)
Connector Header 3 position 2mm Pitch 2A Through Hole -25℃~+85℃
PopularThrough Hole,P=2mmRoHSActive
CONN HEADER TH 3POS 2mm
- Manufacturer
- JST
- Manufacturer part #
- B3B-PH-K-S(LF)(SN)
- Store part #
- C131339
- Package / case
- Through Hole,P=2mm
- Category
- Headers, Male Pins
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,28,450 in stock
#C131339
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.56 | ₹55.60 |
| 100+ | ₹4.60 | ₹460.00 |
| 300+ | ₹4.10 | ₹1,230.00 |
| 1,000+ | ₹3.69 | ₹3,690.00 |
| 5,000+ | ₹3.56 | ₹17,800.00 |
| 10,000+ | ₹3.47 | ₹34,700.00 |
10 × ₹5.56
₹55.60
excl. GST
₹65.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
B3B-PH-K-S(LF)(SN)
₹55.60 for 10 + GST
Specifications
- Connector Type
- Through Hole
- Reference Series
- PH
- Voltage Rating (Max)
- 100V
- Contact Material
- Brass
- Number of PINs Per Row
- 3
- Number of Rows
- 1
- Pitch
- 2mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 2A
- Supplementary Features
- K Pin
- Operating Temperature
- -25℃~+85℃
- Contact Plating
- Tin
- Number of PINs
- 3P
- Plastic Material
- PA66
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 7.9mm
- Pin Structure
- 1x3P
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.204 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B3B-PH-K-K(LF)(SN)#C5305733JST · Through Hole,P=2mm | JST | Through Hole,P=2mm | 30,420 | ₹10.37 · 30,420 in stock | View |
| B3B-PH-K-R(LF)(SN)#C5305782JST · Through Hole,P=2mm | JST | Through Hole,P=2mm | 24,430 | ₹7.06 · 24,430 in stock | View | |
 | B3B-PH-KL(LF)(SN)#C158004JST · Through Hole,P=2mm | JST | Through Hole,P=2mm | 6,235 | ₹10.61 · 6,235 in stock | View |
 | ESWF-PH0XX-L-3X-C-B#C55271989Ensheng Electronics · Through Hole,P=2mm | Ensheng Electronics | Through Hole,P=2mm | 500 | ₹1.08 · 500 in stock | View |
 | SH-PH-3A#C54431929SHOU HAN · Through Hole,P=2mm | SHOU HAN | Through Hole,P=2mm | 7,000 | ₹1.63 · 7,000 in stock | View |
