DIODESDatasheet (PDF)

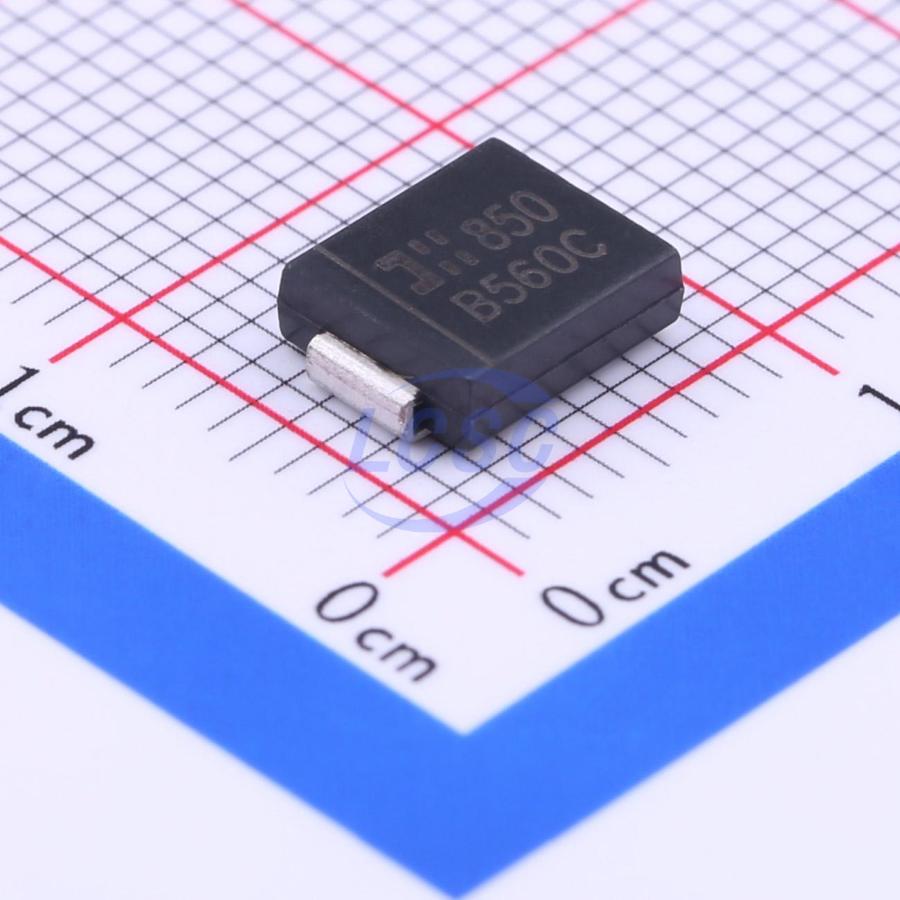

B560C-13-F
1 Independent 60V 700mV@5A 5A SMC(DO-214AB) Single Diodes RoHS
PopularSMC(DO-214AB)ROHS3 CompliantActive
Voltage： 60V Current： 5A
- Manufacturer
- DIODES
- Manufacturer part #
- B560C-13-F
- Store part #
- C85100
- Package / case
- SMC(DO-214AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,52,680 in stock
#C85100
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.76 | ₹128.80 |
| 50+ | ₹19.61 | ₹980.50 |
| 150+ | ₹16.60 | ₹2,490.00 |
| 500+ | ₹13.92 | ₹6,960.00 |
| 3,000+ | ₹13.18 | ₹39,540.00 |
| 6,000+ | ₹12.74 | ₹76,440.00 |
5 × ₹25.76
₹128.80
excl. GST
₹151.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
B560C-13-F
₹128.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 700mV@5A
- Reverse Leakage Current (Ir)
- 500uA@60V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
This Schottky barrier rectifier is designed to meet the general requirements of commercial applications. It is ideally suited for use as: Polarity protection diodes Re- circulating diodes Switching diodes
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency For Use in Low- Voltage, High- Frequency Inverters, Free Wheeling, and Polarity Protection Applications
- Lead- Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC- Q) for High Reliability
- An automotive- compliant part is available under separate datasheet (B520CQ - B560CQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS56C#C3011140JUXING · SMC | JUXING | SMC | 205 | ₹12.28 · 205 in stock | View |
 | B560CQ-13-F#C460781DIODES · SMC | DIODES | SMC | 4,796 | ₹60.94 · 4,796 in stock | View |
 | SS56C#C2915214WEIDA · SMC | WEIDA | SMC | 3,735 | ₹14.28 · 3,735 in stock | View |
 | B560C#C49009566LGE · SMC | LGE | SMC | 1,695 | ₹17.34 · 1,695 in stock | View |
 | SS56SMC#C511862BORN · SMC | BORN | SMC | 56,220 | ₹15.49 · 56,220 in stock | View |
