ROHMDatasheet (PDF)

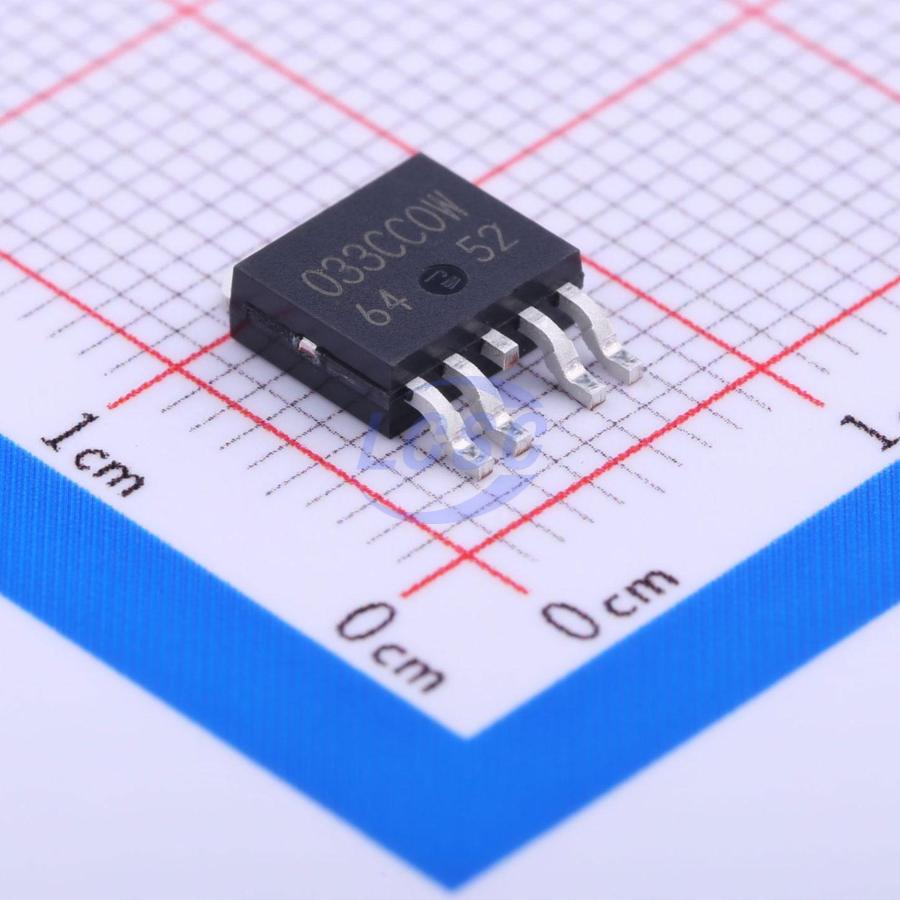

BA033CC0WFP-E2
3.3V Positive Fixed TO-252-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-5ROHS3 CompliantActive
2A/1A Fixed Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BA033CC0WFP-E2
- Store part #
- C84986
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C84986
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹130.61 | ₹130.61 |
| 10+ | ₹105.83 | ₹1,058.30 |
| 30+ | ₹93.66 | ₹2,809.80 |
| 100+ | ₹81.27 | ₹8,127.00 |
| 500+ | ₹74.10 | ₹37,050.00 |
| 1,000+ | ₹70.20 | ₹70,200.00 |
1 × ₹130.61
₹130.61
excl. GST
₹154.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BA033CC0WFP-E2
₹130.61 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 25V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.735 g
Overview
Standard Fixed Output LDO Regulators are low-saturation regulators, available for outputs up to 2A / 1A. It has a wide output voltage range and package lineup with and without shutdown switches. This IC has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits, a thermal shut-down circuit that protects the IC from damage due to overloading and an over-voltage protection circuit that protects the IC from surges generated in the power supply line of the IC.
Applications
- Used in DSP power supplies for DVD and CD players, FPDs, televisions, personal computers or any other consumer device
Key features
- ±1% highly accurate output voltage (BAxxDD0xx)
- Low saturation with PNP output
- Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
- Built-in thermal shutdown circuit for protecting the IC from damage due to overloading
- Built-in over- voltage protection circuit that prevents the destruction of the IC due to power supply surges
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD33C0AWFP-CE2#C3747778ROHM · TO-252-5 | ROHM | TO-252-5 | 12 | ₹207.35 · 12 in stock | View |
 | BD33FC0WFP-E2#C3752658ROHM · TO-252-5 | ROHM | TO-252-5 | 24 | ₹254.74 · 24 in stock | View |
| NJW4187DL3-33A-TE1#C3747377Nisshinbo Micro Devices Inc. · TO-252-5 | Nisshinbo Micro Devices Inc. | TO-252-5 | On request | ₹127.96 · 0 in stock | View | |
| BA033SFP-E2#C5556495ROHM · TO-252-5 | ROHM | TO-252-5 | On request | ₹222.63 · 0 in stock | View | |
| S-1214B33H-V5T2U7#C3750509ABLIC · TO-252-5S(A) | ABLIC | TO-252-5S(A) | On request | ₹679.24 · 0 in stock | View | |
