VISHAYDatasheet (PDF)

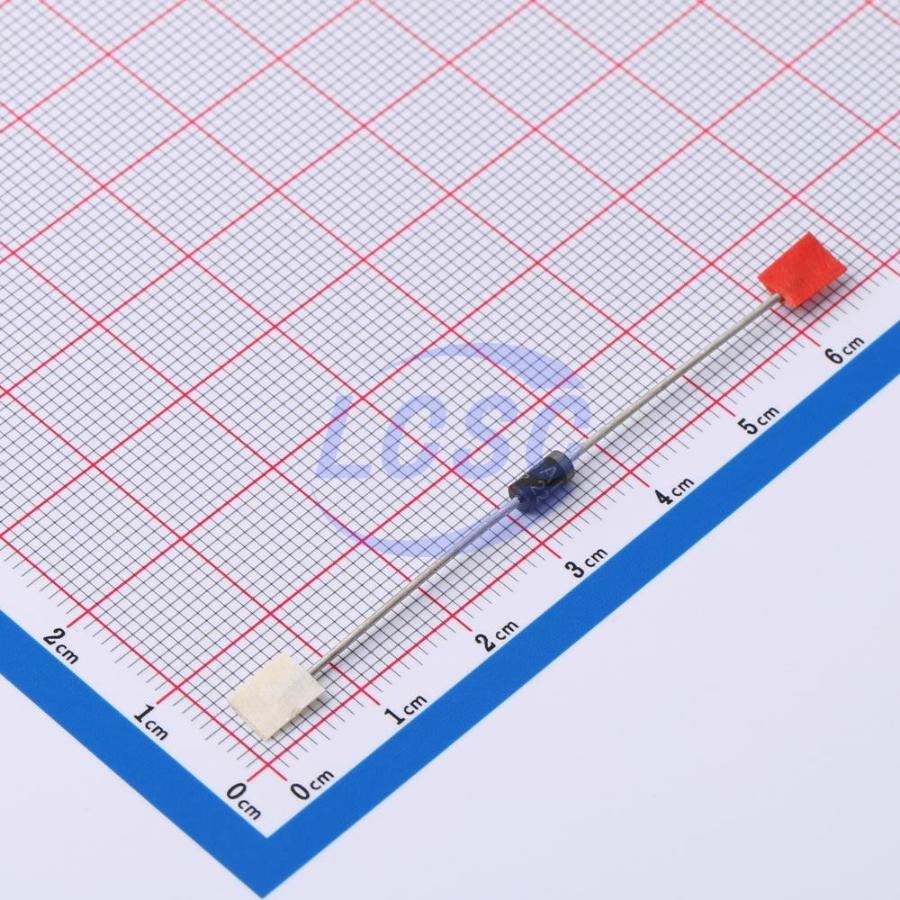

BA159-E3/54
Diode Independent 1000V 1A Through Hole DO-204AL
DO-204ALROHS3 CompliantActive
DIODE GP 1kV 1A DO-204AL
- Manufacturer
- VISHAY
- Manufacturer part #
- BA159-E3/54
- Store part #
- C5224070
- Package / case
- DO-204AL
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
860 in stock
#C5224070
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.76 | ₹83.80 |
| 50+ | ₹13.24 | ₹662.00 |
| 150+ | ₹11.47 | ₹1,720.50 |
| 500+ | ₹10.15 | ₹5,075.00 |
| 2,500+ | ₹8.65 | ₹21,625.00 |
| 5,500+ | ₹8.12 | ₹44,660.00 |
5 × ₹16.76
₹83.80
excl. GST
₹98.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,500 per reel
BA159-E3/54
₹83.80 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 500ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA@1000V
- Non-Repetitive Peak Forward Surge Current
- 20A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.38 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BA159-E3/73#C17606989VISHAY · DO-204AL(DO-41) | VISHAY | DO-204AL(DO-41) | On request | ₹17.75 · 0 in stock | View | |
| FR107T-G#C17272991Comchip · DO-41 | Comchip | DO-41 | On request | ₹11.03 · 0 in stock | View | |
| FR107B-G#C17438453Comchip · DO-41 | Comchip | DO-41 | On request | ₹7.81 · 0 in stock | View | |
| FR107A-G#C17609859Comchip · DO-41 | Comchip | DO-41 | On request | ₹9.66 · 0 in stock | View | |
| RGP10ME-E3/73#C17343870VISHAY · DO-204AL(DO-41) | VISHAY | DO-204AL(DO-41) | On request | ₹26.26 · 0 in stock | View | |
