ROHMDatasheet (PDF)

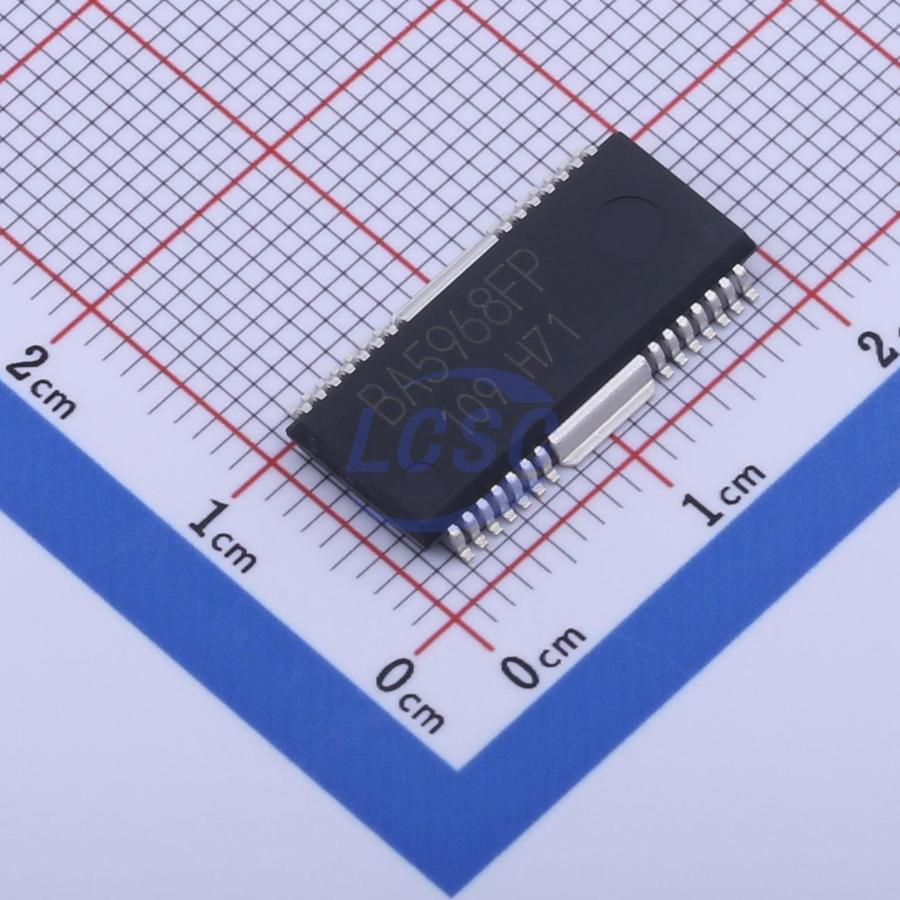

BA5968FP-E2
4.3V~9V 5 HSOP-28-300mil Clock Buffers, Drivers RoHS
HSOP-28-300milROHS CompliantActive
Power Driver For CD Players
- Manufacturer
- ROHM
- Manufacturer part #
- BA5968FP-E2
- Store part #
- C600673
- Package / case
- HSOP-28-300mil
- Category
- Clock Buffers, Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,488 in stock
#C600673
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.90 | ₹103.90 |
| 10+ | ₹92.66 | ₹926.60 |
| 30+ | ₹87.05 | ₹2,611.50 |
| 100+ | ₹81.43 | ₹8,143.00 |
| 500+ | ₹68.25 | ₹34,125.00 |
| 1,500+ | ₹66.53 | ₹99,795.00 |
1 × ₹103.90
₹103.90
excl. GST
₹122.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BA5968FP-E2
₹103.90 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 4.3V~9V
- Number of Inputs
- 5
- Number of outputs
- 5
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.086 g
Overview
5-ch driver comprising of 4 channels for BTL drivers and 1 channel for reversible drivers. Use of the HSOP-28PIN power package allows downsizing of the set. A built-in thermal shutdown circuit installed. A wide dynamic range (6.0V (Typ.) when VCC=8V, RL=8Ω).
Key features
- 5-ch driver comprising of 4 channels for BTL drivers and 1 channel for reversible drivers
- Use of the HSOP-28PIN power package allows downsizing of the set
- A built-in thermal shutdown circuit installed
- A wide dynamic range (6.0V (Typ.) when VCC=8V, RL=8Ω)
- For 2 of 4 channels, the input terminal is connected to the general OP-AMP, which allows a differential input and the addition of signals
- A built-in brake function installed
- A built-in diode for protecting against over-voltage caused by a counter electromotive force
- The output voltage control terminal (LDCTL) is used to control the output voltage. (Applicable only to the voltage on the H' side)
