VISHAYDatasheet (PDF)

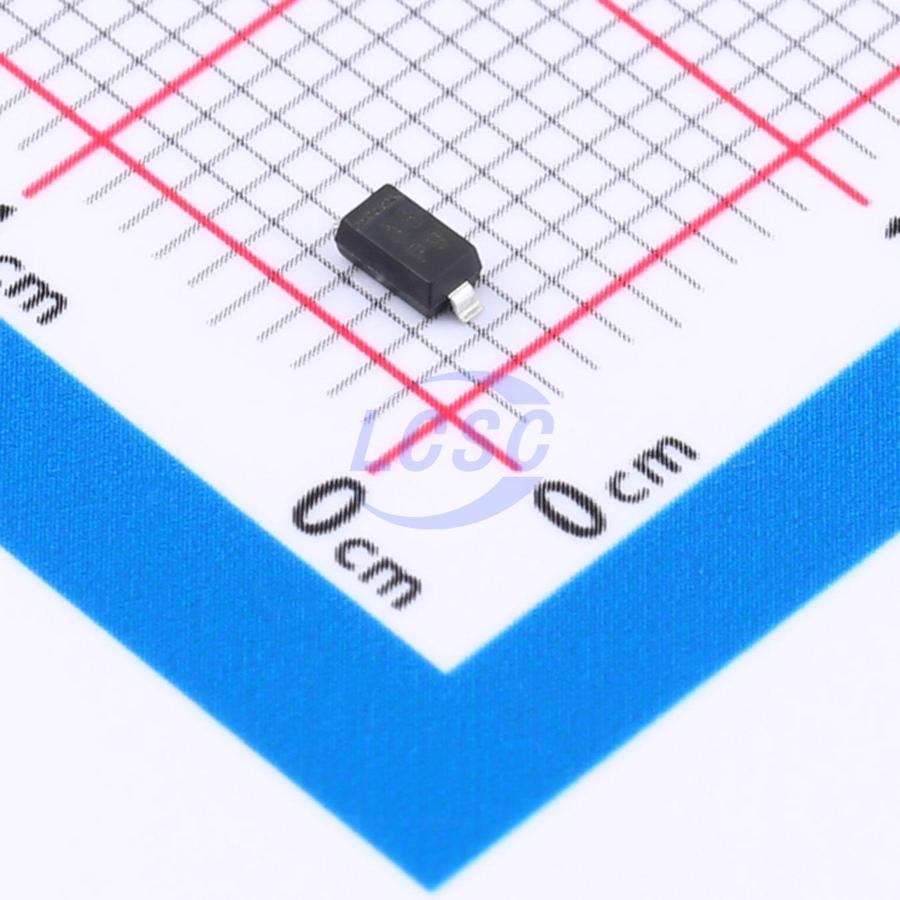

BAS16D-E3-08
Diode Independent 75V 250mA Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE GP 75V 250mA SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BAS16D-E3-08
- Store part #
- C5358608
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C5358608
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.60 | ₹83.00 |
| 50+ | ₹13.80 | ₹690.00 |
| 150+ | ₹12.40 | ₹1,860.00 |
| 500+ | ₹11.35 | ₹5,675.00 |
| 2,500+ | ₹10.52 | ₹26,300.00 |
| 5,000+ | ₹10.09 | ₹50,450.00 |
5 × ₹16.60
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAS16D-E3-08
₹83.00 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 6ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Pd - Power Dissipation
- 350mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 1uA@75V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 250mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon epitaxial planar diode
- Fast switching diode
- AEC-Q101 qualified available e3
- Base P/N-E3 - RoHS-compliant, commercial grade
- Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS16WQ#C20167313YANGJIE · SOD-123 | YANGJIE | SOD-123 | 3,000 | ₹3.29 · 3,000 in stock | View |
 | 1N4148WQ-13-F#C3151708DIODES · SOD-123 | DIODES | SOD-123 | 10 | ₹4.01 · 10 in stock | View |
 | 1N4148W-HE3_A-08#C24639399VISHAY · SOD-123 | VISHAY | SOD-123 | 39,330 | ₹7.16 · 39,330 in stock | View |
 | 1N4148W-7-MS#C3020329MSKSEMI · SOD-123 | MSKSEMI | SOD-123 | 2,850 | ₹2.09 · 2,850 in stock | View |
 | BAV16W-7-MS#C3020330MSKSEMI · SOD-123 | MSKSEMI | SOD-123 | 2,650 | ₹2.16 · 2,650 in stock | View |
