VISHAYDatasheet (PDF)

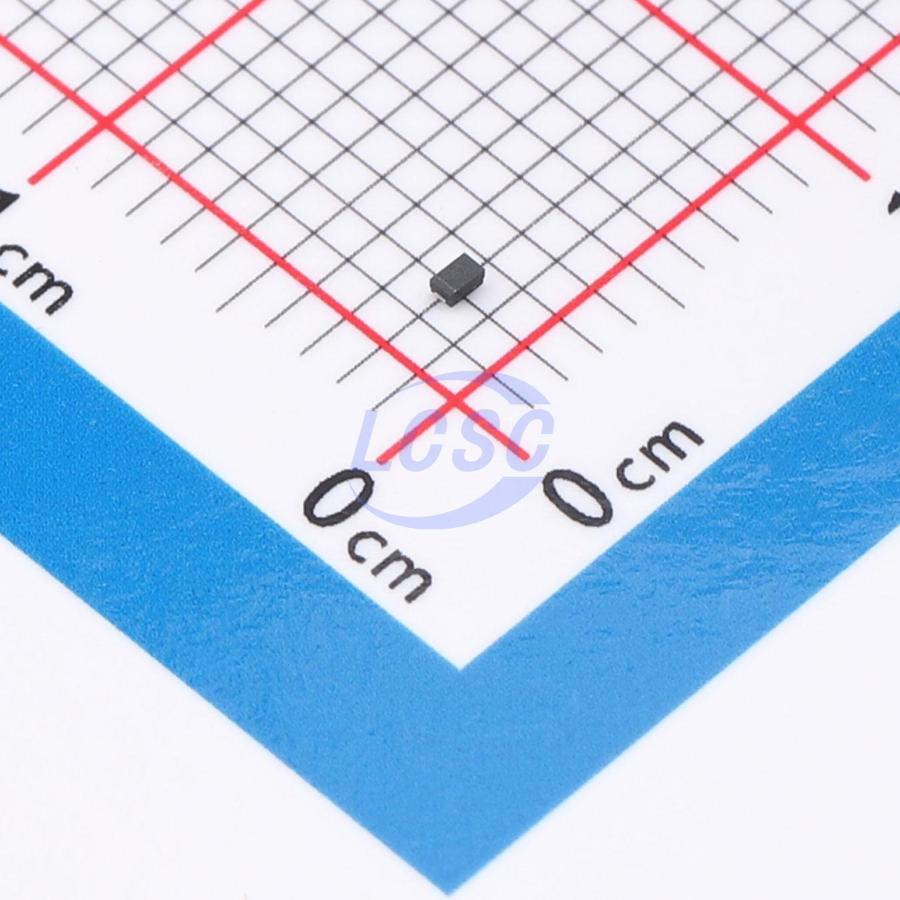

BAS16LTH-G3-08
4ns 100V 1 Independent 1.25V@150mA 250mA DFN1006-2A Single Diodes RoHS
DFN1006-2AROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BAS16LTH-G3-08
- Store part #
- C17345152
- Package / case
- DFN1006-2A
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
397 in stock
#C17345152
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.36 | ₹61.36 |
| 10+ | ₹48.79 | ₹487.90 |
| 30+ | ₹43.59 | ₹1,307.70 |
| 100+ | ₹36.86 | ₹3,686.00 |
| 500+ | ₹33.83 | ₹16,915.00 |
| 1,000+ | ₹32.10 | ₹32,100.00 |
1 × ₹61.36
₹61.36
excl. GST
₹72.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BAS16LTH-G3-08
₹61.36 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 350mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 500nA@80V
- Non-Repetitive Peak Forward Surge Current
- 9A
- Current - Rectified
- 250mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.023 g
Overview
Key features
- Maximum junction temperature Tj = 175℃, suitable for high-temperature, mission-critical applications
- Fast switching diode
- Leadless ultra-compact DFN1006-2A package (1mm × 0.6mm × 0.45mm)
- Lower power dissipation than SOT-23
- SMD plastic package with visible tinned/solderable side flanks
- Solder joints inspectable by standard visual inspection, meeting automotive AOI requirements without X-ray
- Available in AEC-Q101 qualified versions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N4148WL2#C20599330YANGJIE · DFN1006-2(SOD-882) | YANGJIE | DFN1006-2(SOD-882) | 16,200 | ₹3.81 · 16,200 in stock | View |
| BAS16LTH-HG3-08#C17356228VISHAY · DFN1006-2A | VISHAY | DFN1006-2A | On request | ₹11.35 · 0 in stock | View | |
 | BAS16L-G3-08#C5355399VISHAY · DFN1006-2A | VISHAY | DFN1006-2A | On request | ₹32.70 · 0 in stock | View |
| BAS16L-HG3-08#C17320077VISHAY · DFN1006-2A | VISHAY | DFN1006-2A | On request | ₹13.43 · 0 in stock | View | |
| BAS21LS-QYL#C7507520Nexperia · DFN1006BD-2 | Nexperia | DFN1006BD-2 | On request | ₹55.43 · 0 in stock | View | |
